GF27.10-P-0002-07LEH Automatic Transmission Hybrid Drive Block Diagram

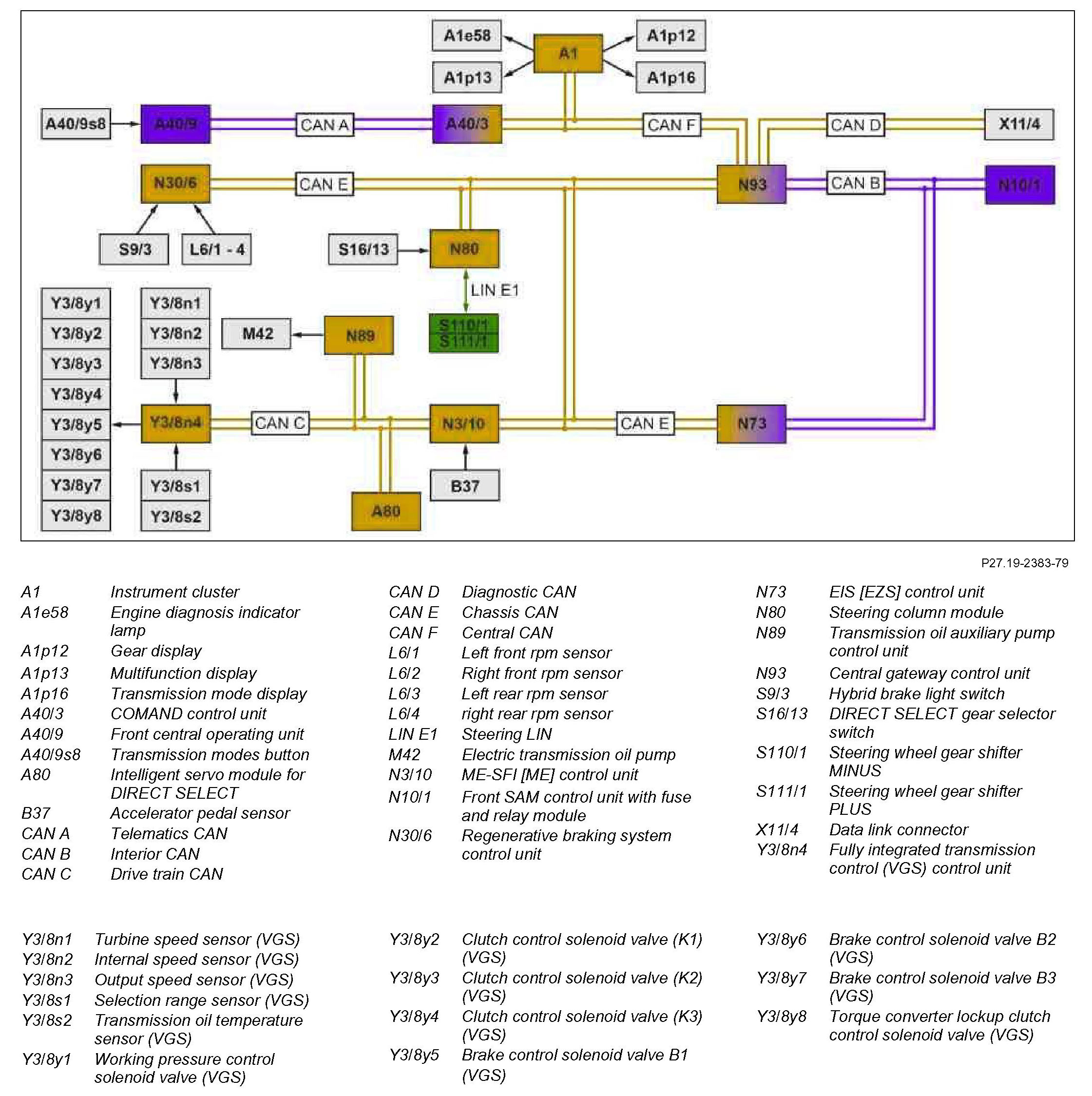

GF27.10-P-0002-07LEH Automatic transmission hybrid drive block diagram
- TRANSMISSION 722.950
