GF27.10-P-3015LEH Power Flow In 5th Gear, Function

GF27.10-P-3015LEH Power flow in 5th gear, function
- TRANSMISSION 722.950





Function requirements for power flow in 5th gear, general
^ Circuit 87 (connected circuit 15) ON
^ Engine running

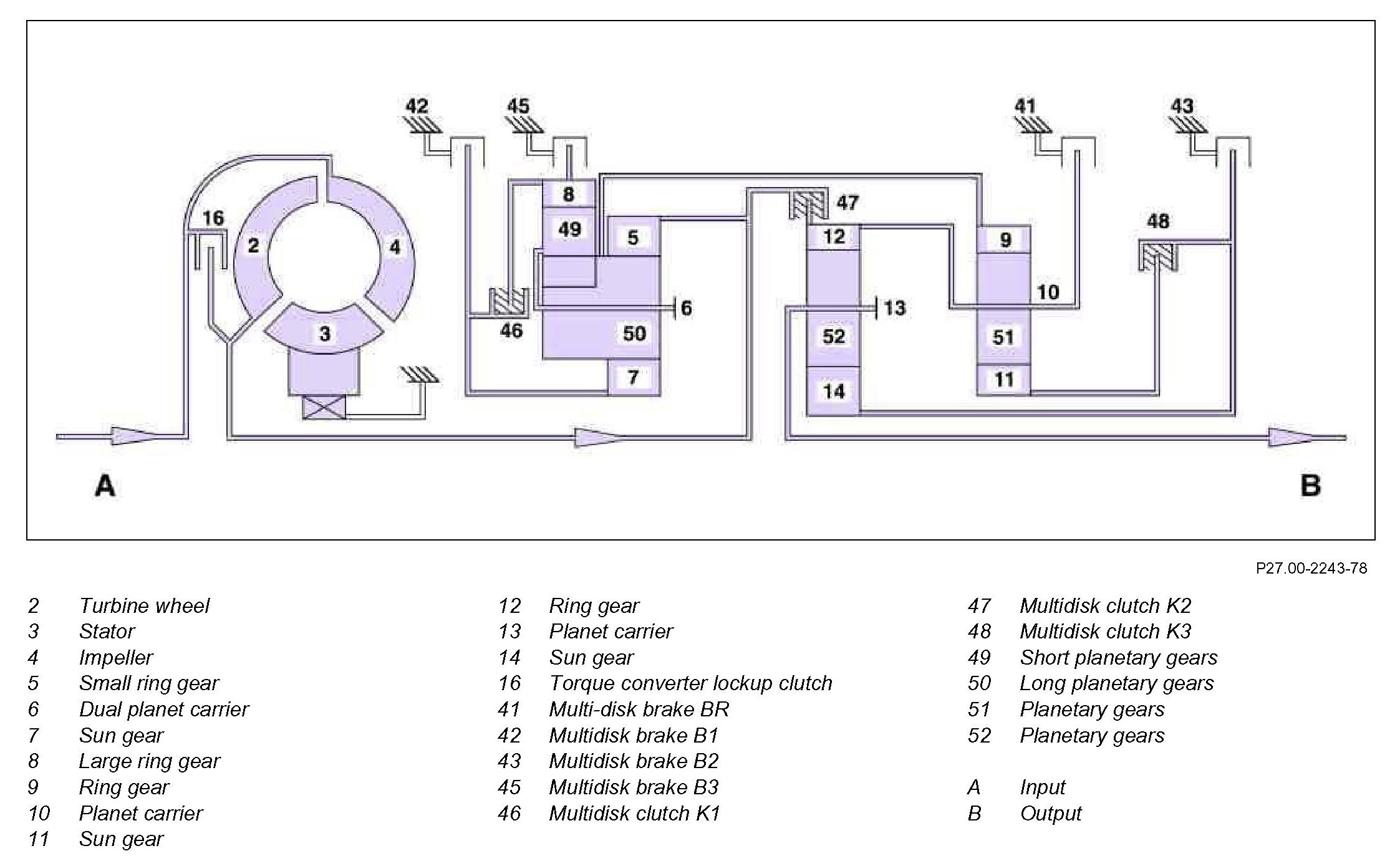

Power flow in 5th gear, general
The following multi-disk clutches are engaged:

- Multidisk clutch K1 (46)
- Multidisk clutch K2 (47)
- Multidisk clutch K3 (48)

In 5th gear, power flows from the transmission input shaft through the blocked Ravigneaux gear set and blocked front single planetary gear set to the transmission output shaft. This rotates at the transmission input speed in the direction of rotation of the engine.
