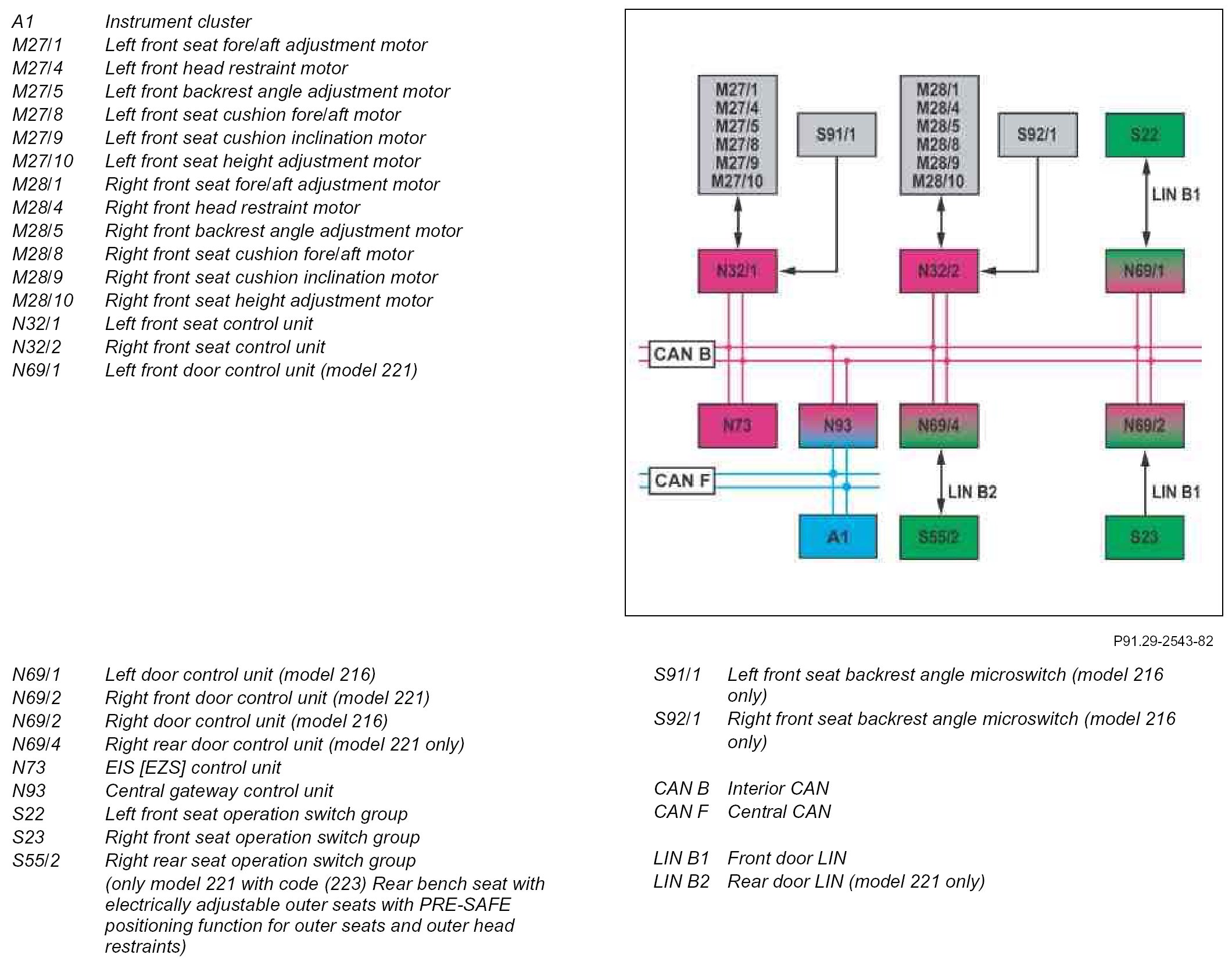

GF91.29-P-0004-03LE Block Diagram of Electric Seat Adjustment (ESA (ESV))



GF91.29-P-0004-03LE Block Diagram Of Electric Seat Adjustment (ESA [ESV])
- as of Model Year 09

Component Identification:
