Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2010
>>
S 550 4MATIC (221.186) V8-5.5L (273.968)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Heater Core
>>
Service and Repair
Heater Core: Service and Repair
AR83.25-P-1100SX Remove And Install Heat Exchanger
Component Identification:

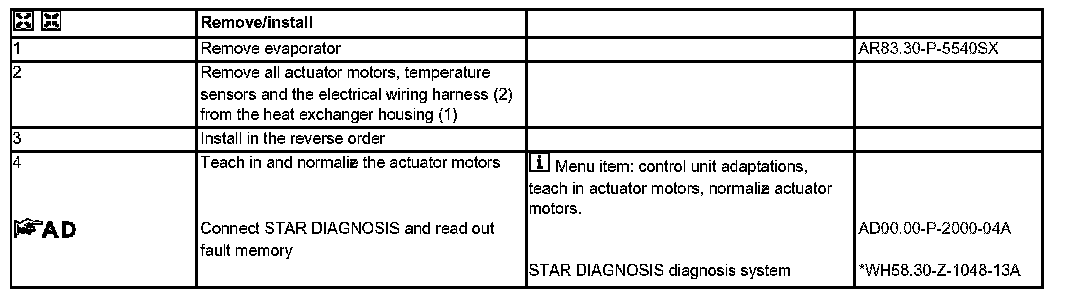

Steps 1 - 4:
Commercially Available Tools:
