Home >> Mercedes Benz >> 2010 >> S 550 4MATIC (221.186) V8-5.5L (273.968) >> Repair and Diagnosis >> Lighting and Horns >> Description and Operation >> GF82.20-P-0002-01LE Interior Illumination (IBL), Location of Components

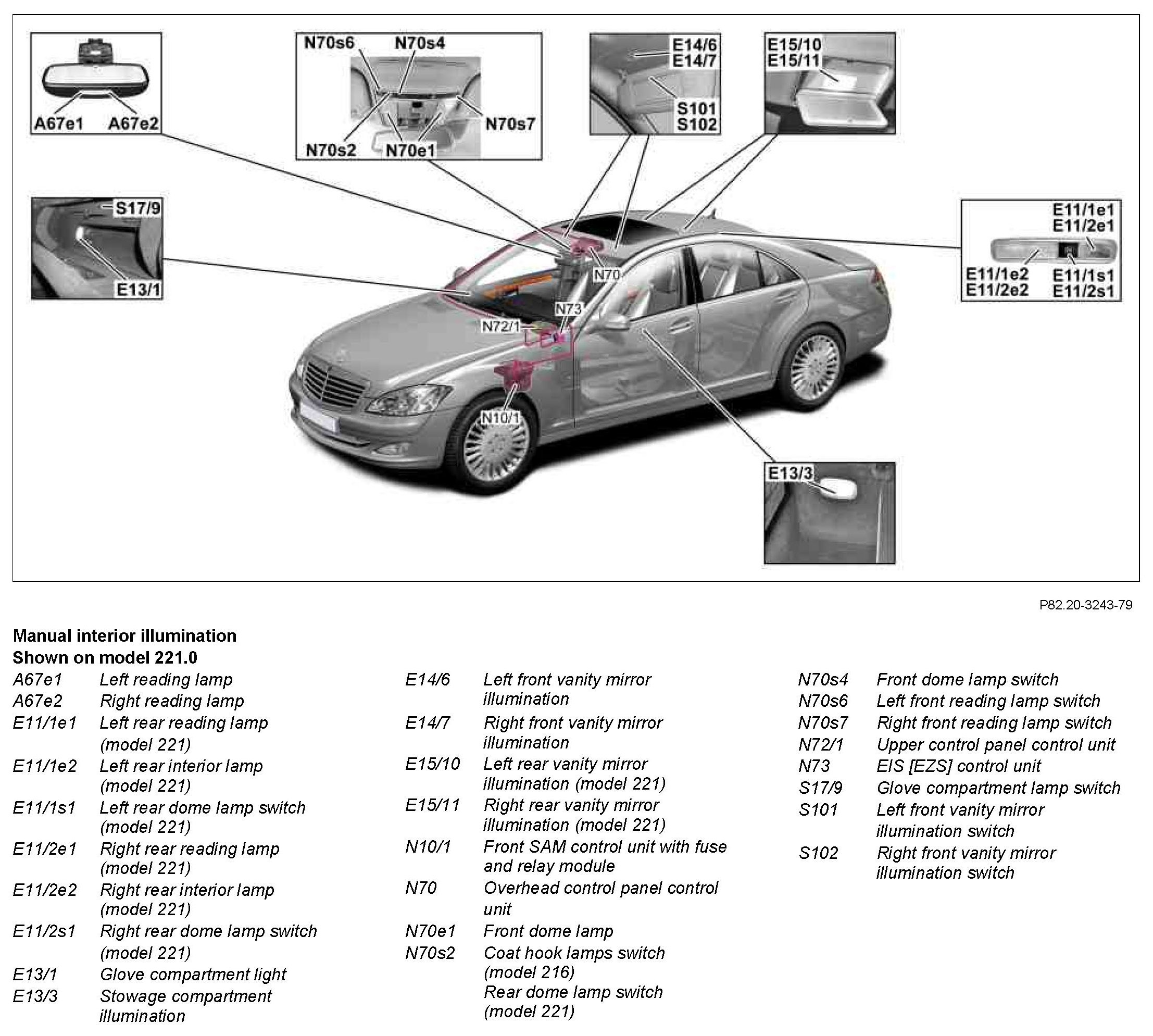

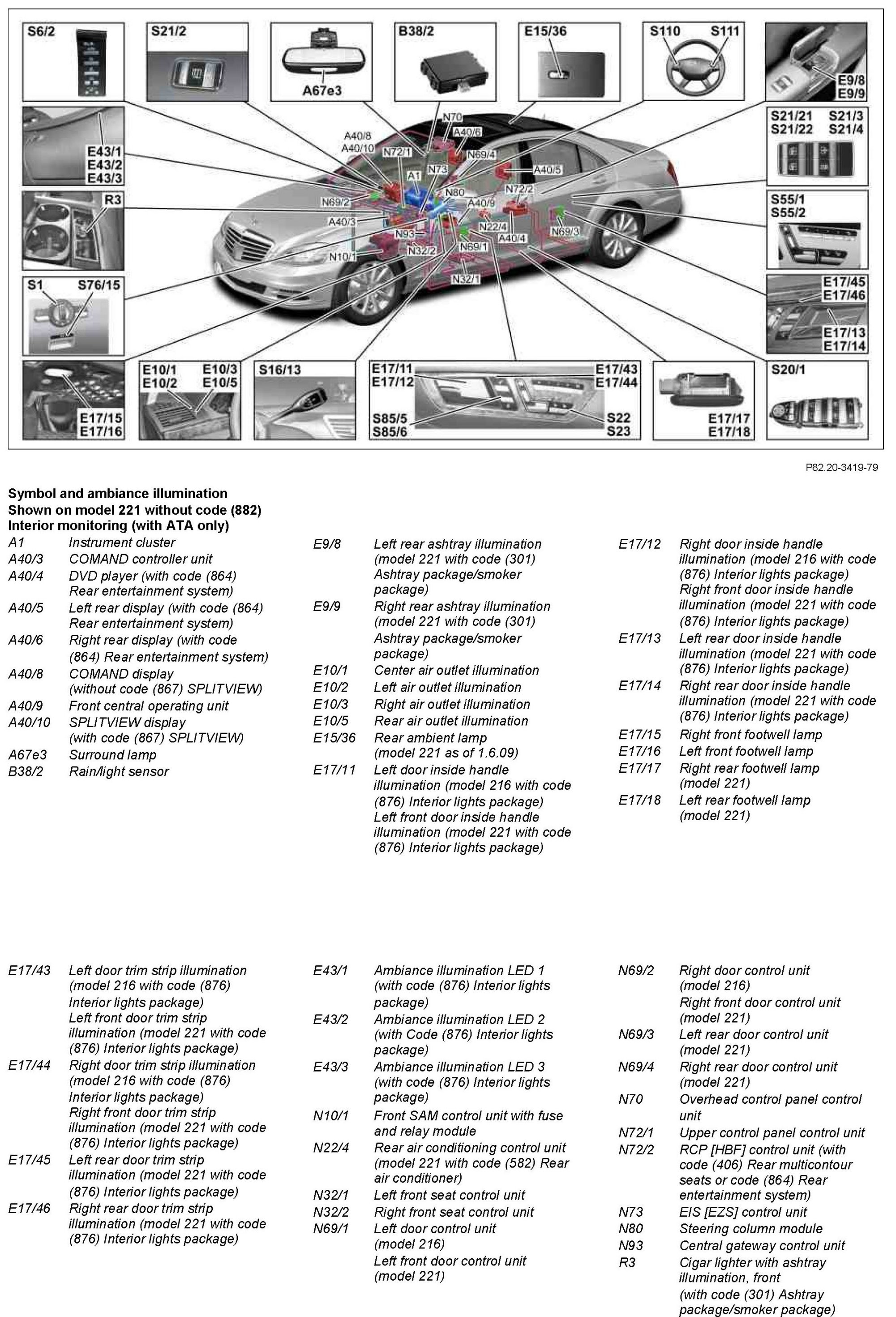

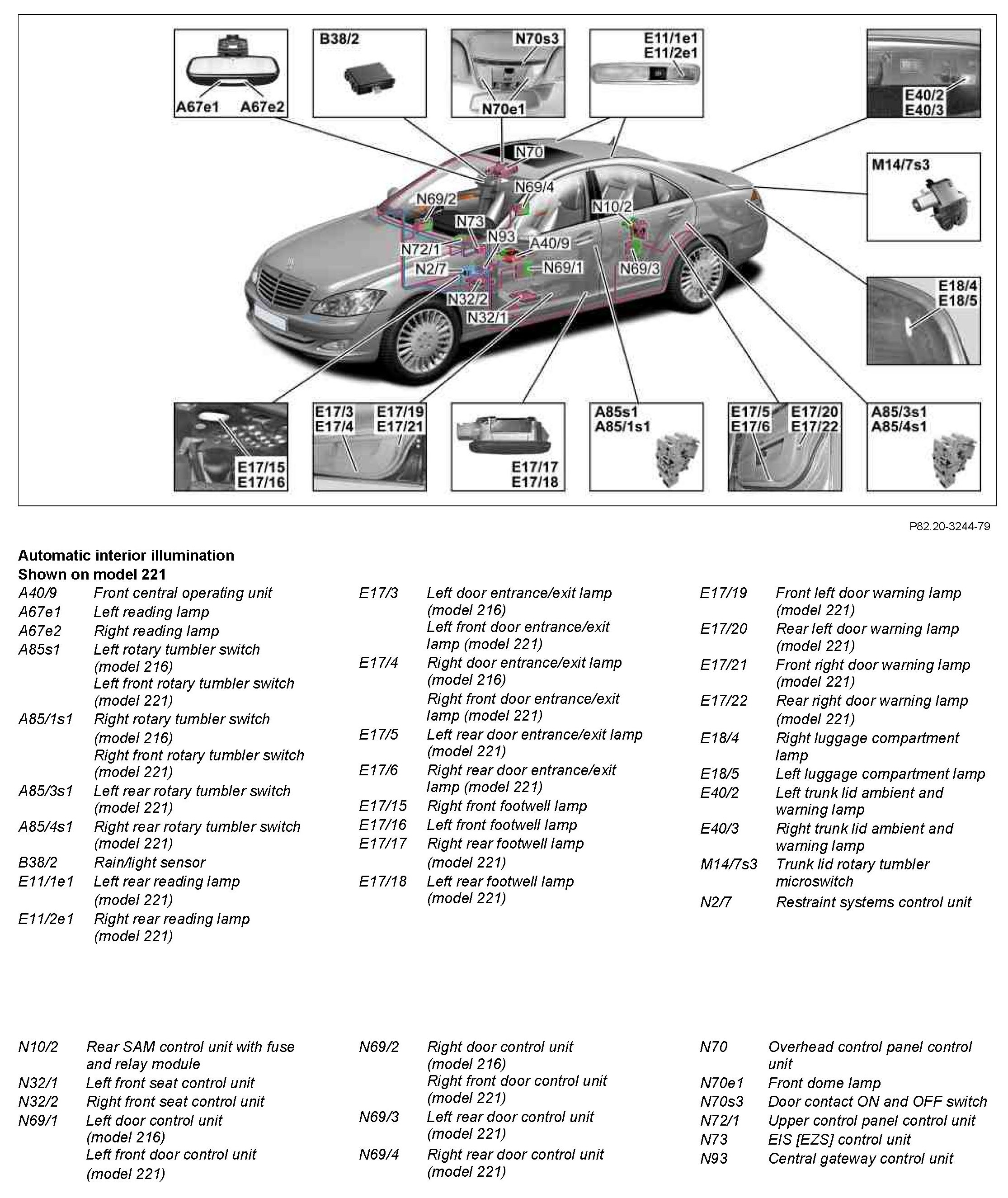

GF82.20-P-0002-01LE Interior Illumination (IBL), Location of Components



GF82.20-P-0002-01LE Interior Illumination (IBL), Location Of Components

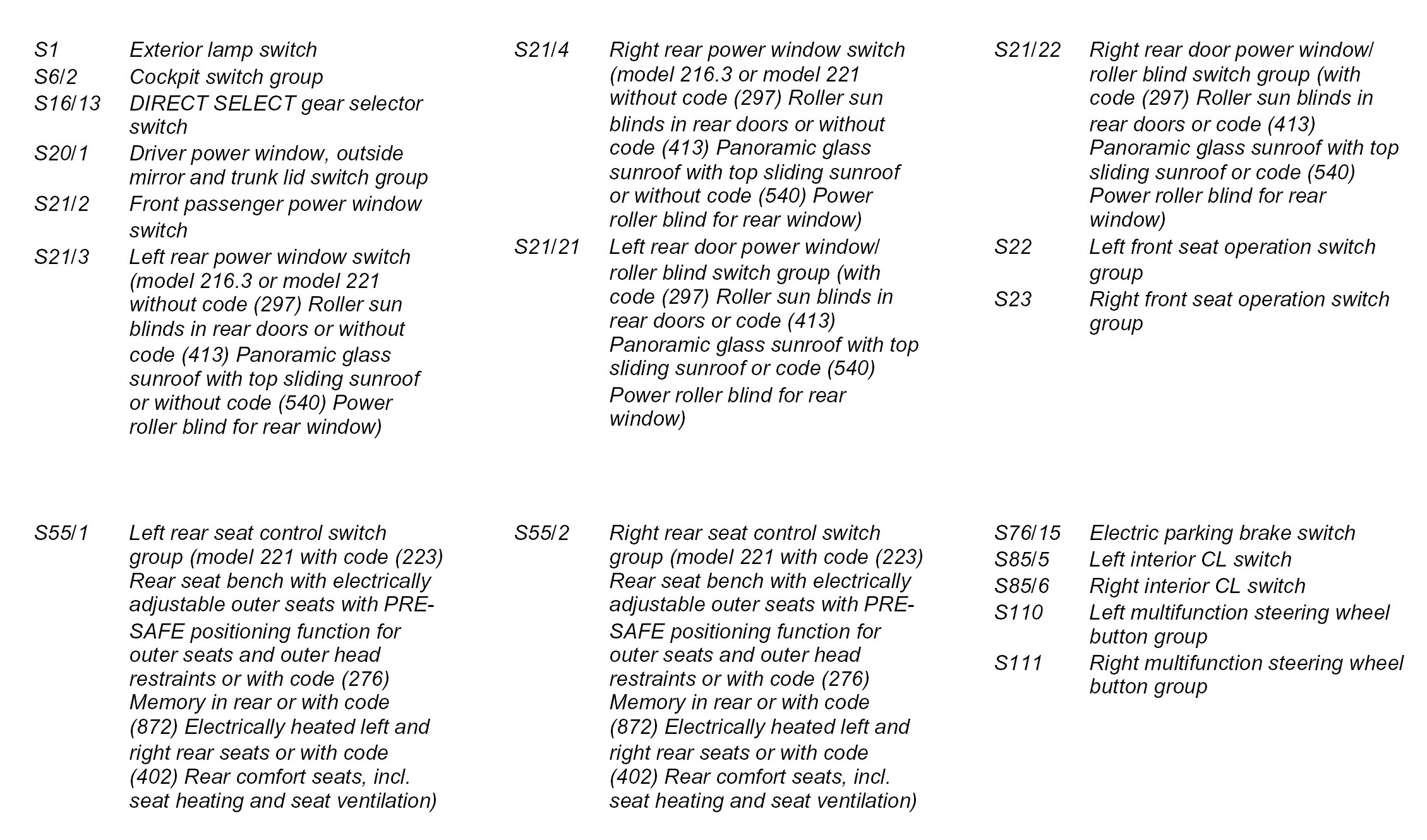

Component Identification:




Component Identification:




Component Identification:




Component Identification:
