GF07.61-P-2006MIS ME-SFI Idle, Function

GF07.61-P-2006MIS ME-SFI Idle, Function
- ENGINE 272.9 (except 272.974) in MODEL 221.0 /1 (except 221.095 /195) as of model year 2009 /AEJ 08
- ENGINE 273.9 in MODEL 216.3, 221.0 /1 as of model year 2009 / AEJ 08

Function requirements for idling, general points
Circuit 87M ON (engine control ON)
Engine running (engine speed greater than 700 rpm)
Accelerator not operated

Idling, general points

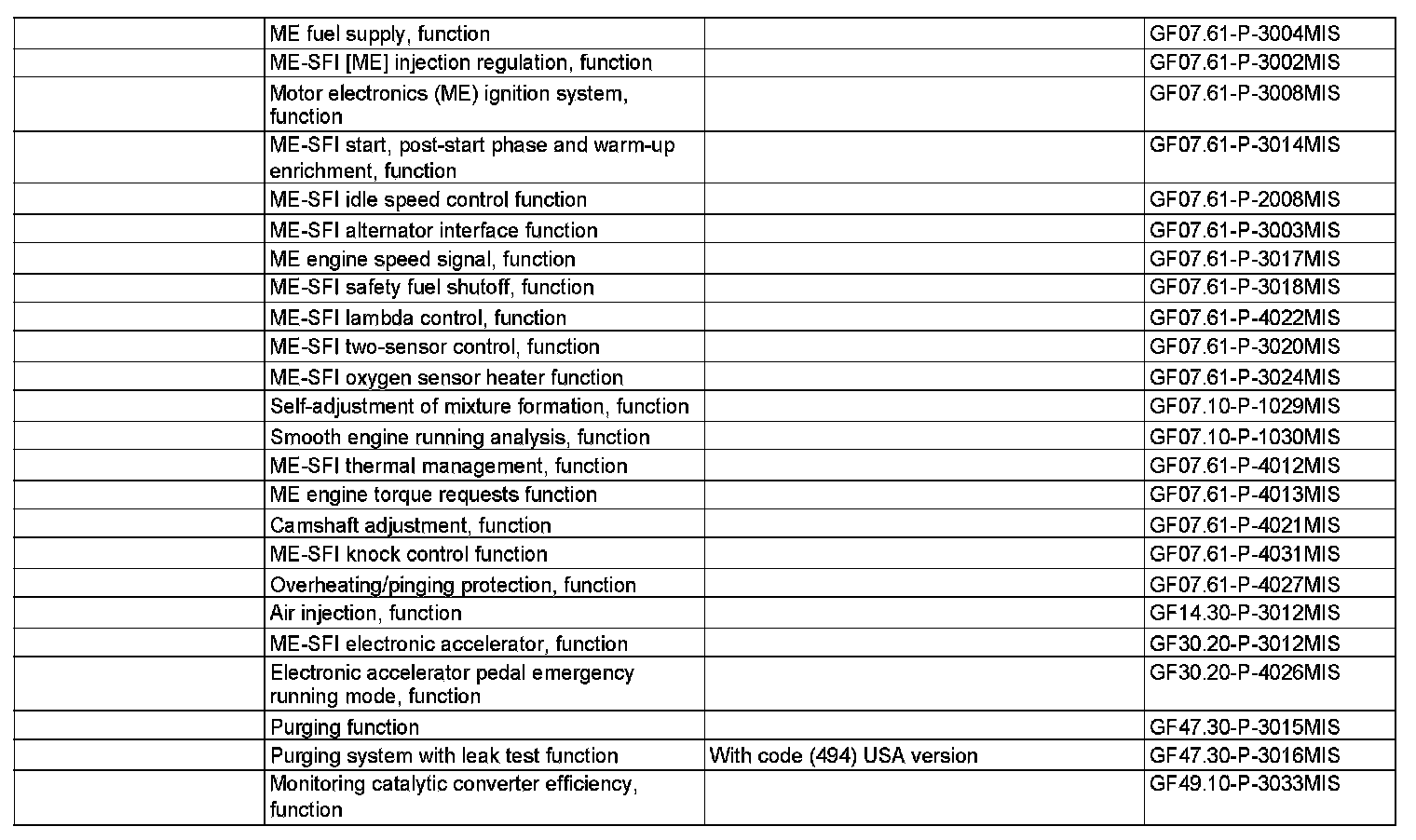

The following partial functions are active in neutral and are described in the following documents:
- ME fuel supply, function
- ME-SFI [ME] injection regulation, function
- Motor electronics (ME) ignition system, function
- ME-SFI start, post-start phase and warm-up enrichment, function
- ME-SFI idle speed control function
- ME-SFI alternator interface function
- ME engine speed signal, function
- ME-SFI safety fuel shutoff, function
- ME-SFI lambda control, function
- ME-SFI two-sensor control, function
- ME-SFI oxygen sensor heater function
- Self-adjustment of mixture formation, function
- Smooth engine running analysis, function
- ME-SFI thermal management, function
- ME engine torque requests function
- Camshaft adjustment, function
- ME-SFI knock control function
- Overheating/pinging protection, function
- Air injection, function
- ME-SFI electronic accelerator, function
- Electronic accelerator pedal emergency running mode, function
- Purging function
- System purging with leak test function (with code (494) USA version)
- Monitoring catalytic converter efficiency, function
