PE54.65-U-2101SAB Wiring Diagram Parktronic System (PTS) Control Module

Wiring Diagram Parktronic System (PTS) Control Module PE54.65-U-2101SAB
- with CODE (220) Parktronic system (PTS)
- control unit N62/1

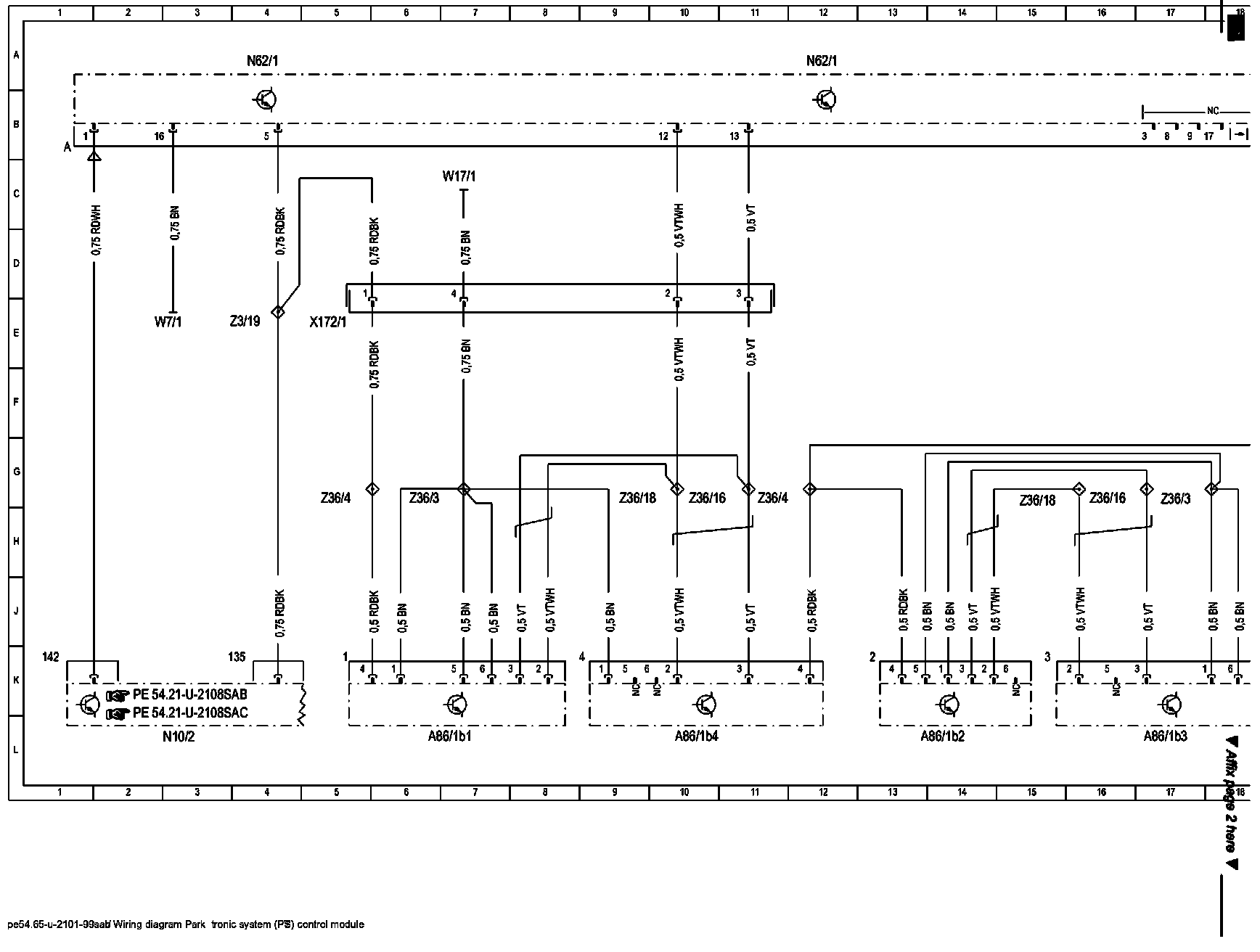

Wiring Diagram (Part 1):

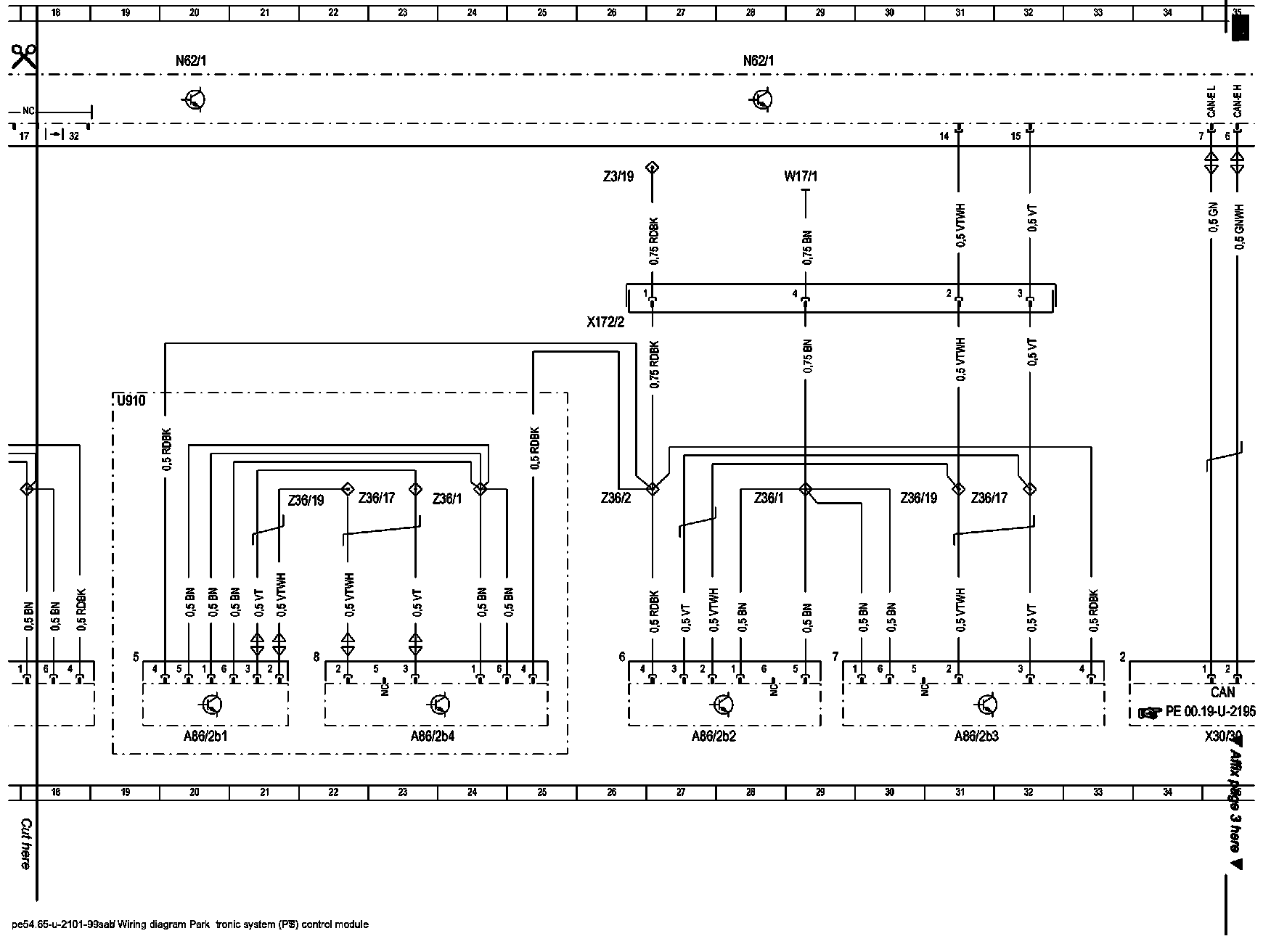

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

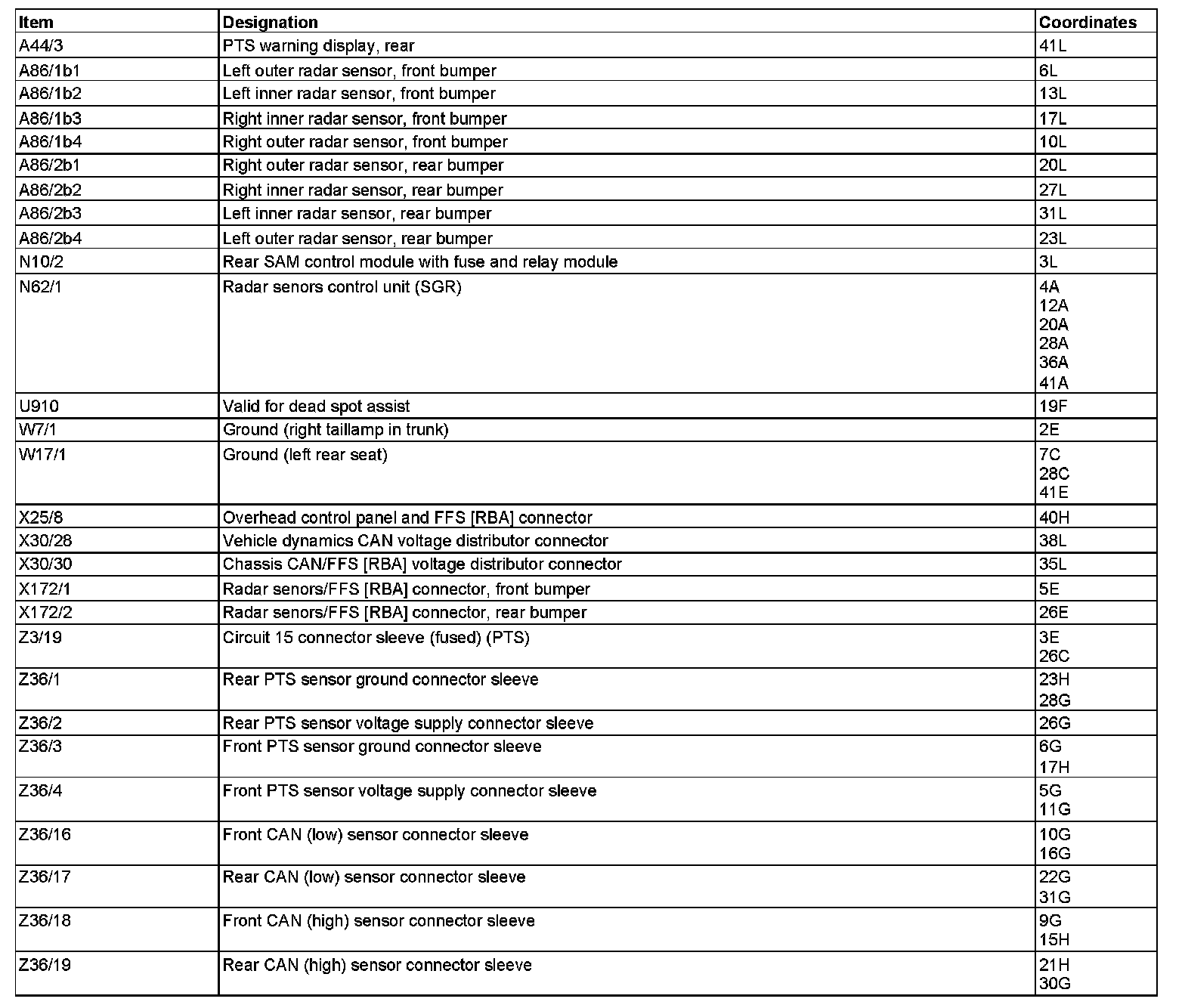

Component Description/Coordinates, A44/3 To Z36/19:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
