AP42.00-P-4292SX Brake Test On Roller Brake Test Stand
AP42.00-P-4292SX Brake Test On Roller Brake Test Stand
AP42.00-P-4292SX Brake test on roller brake test stand

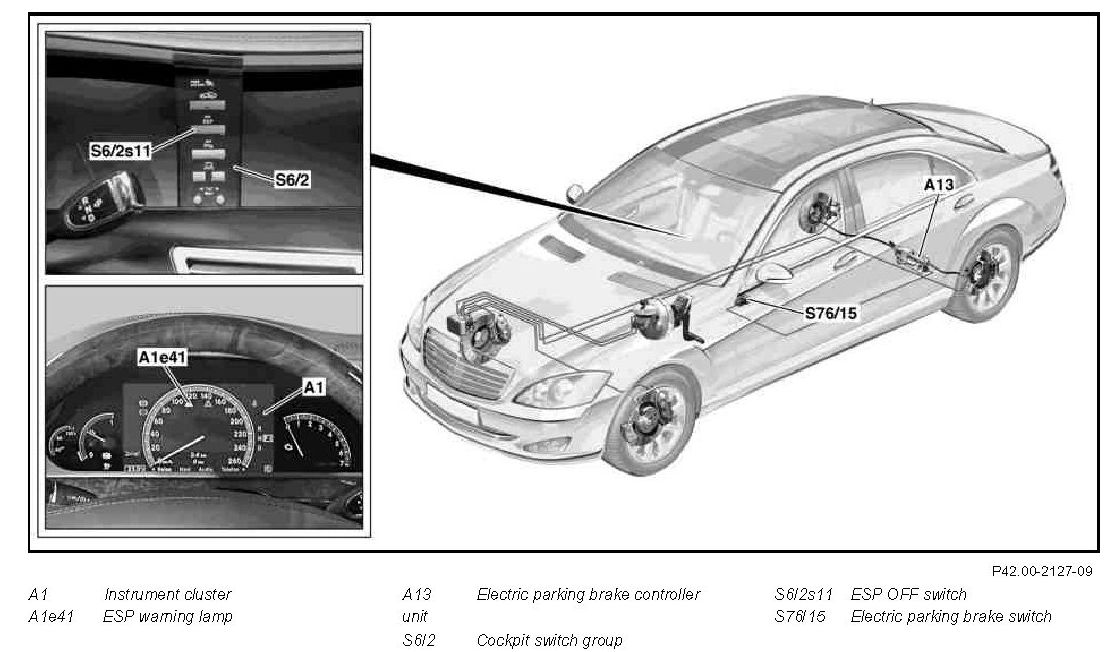

Component Identification:

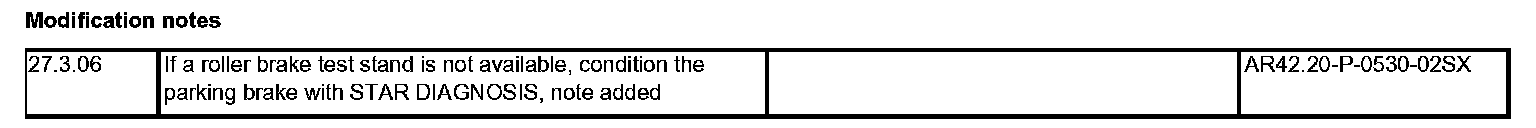

Modification notes:

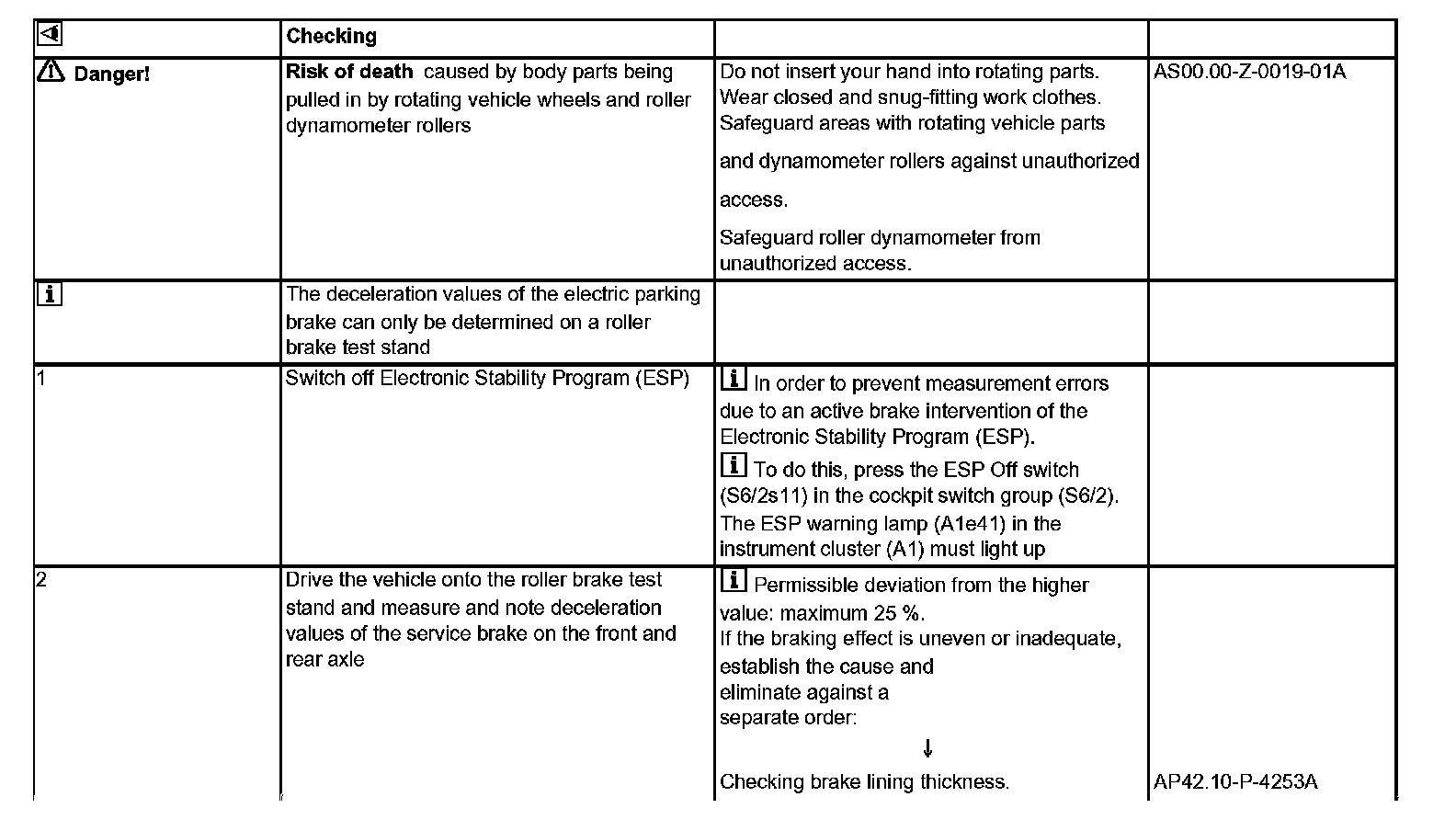

Steps 1-2:

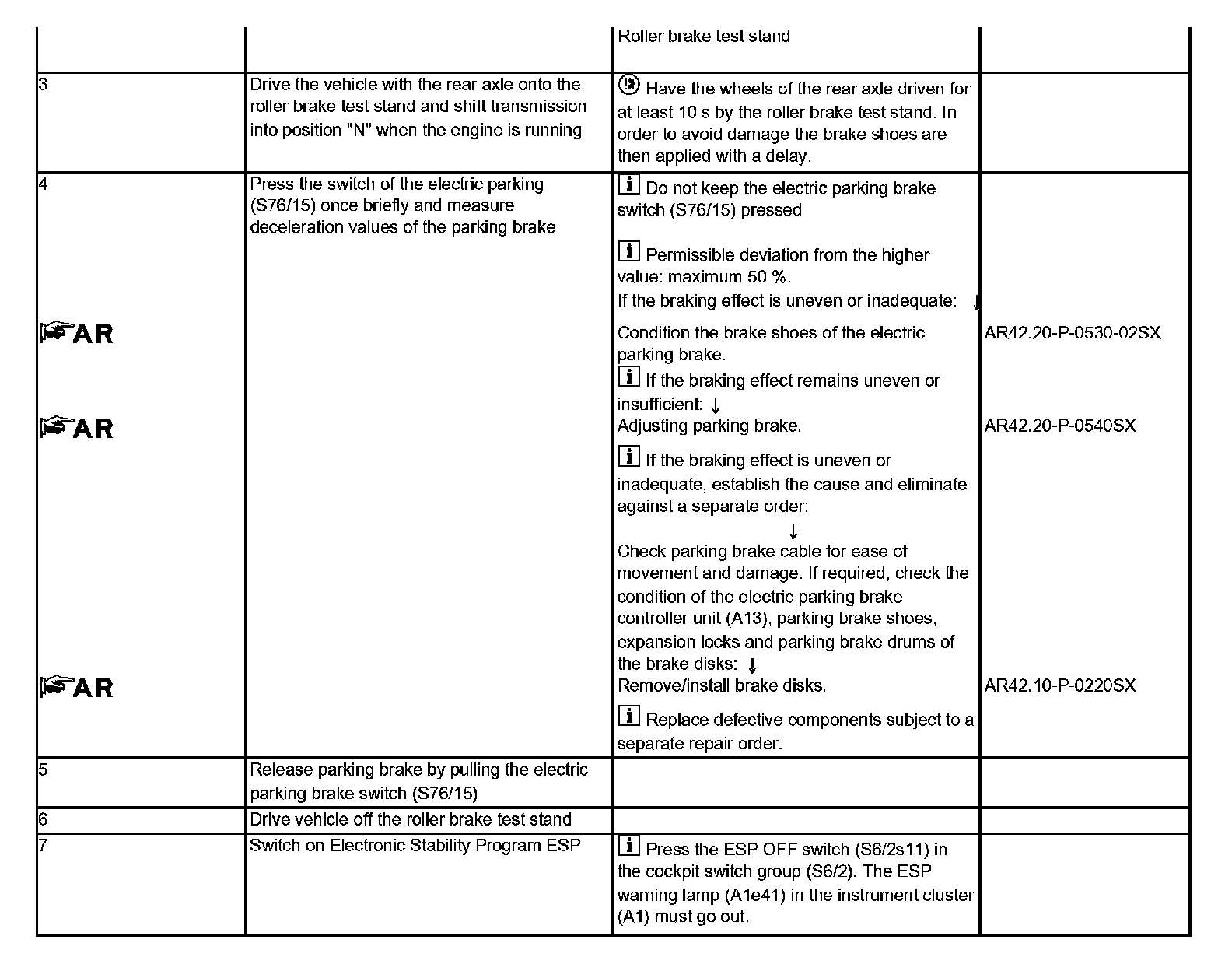

Steps 2 (Continued)-7:
