PE83.50-P-2101SAB Wiring Diagram of Rear Air Conditioning System Control Unit

PE83.50-P-2101SAB Wiring Diagram Of Rear Air Conditioning System Control Unit
- with CODE (Z19) S600 Pullman Guard state sedan
- Control unit N22/4

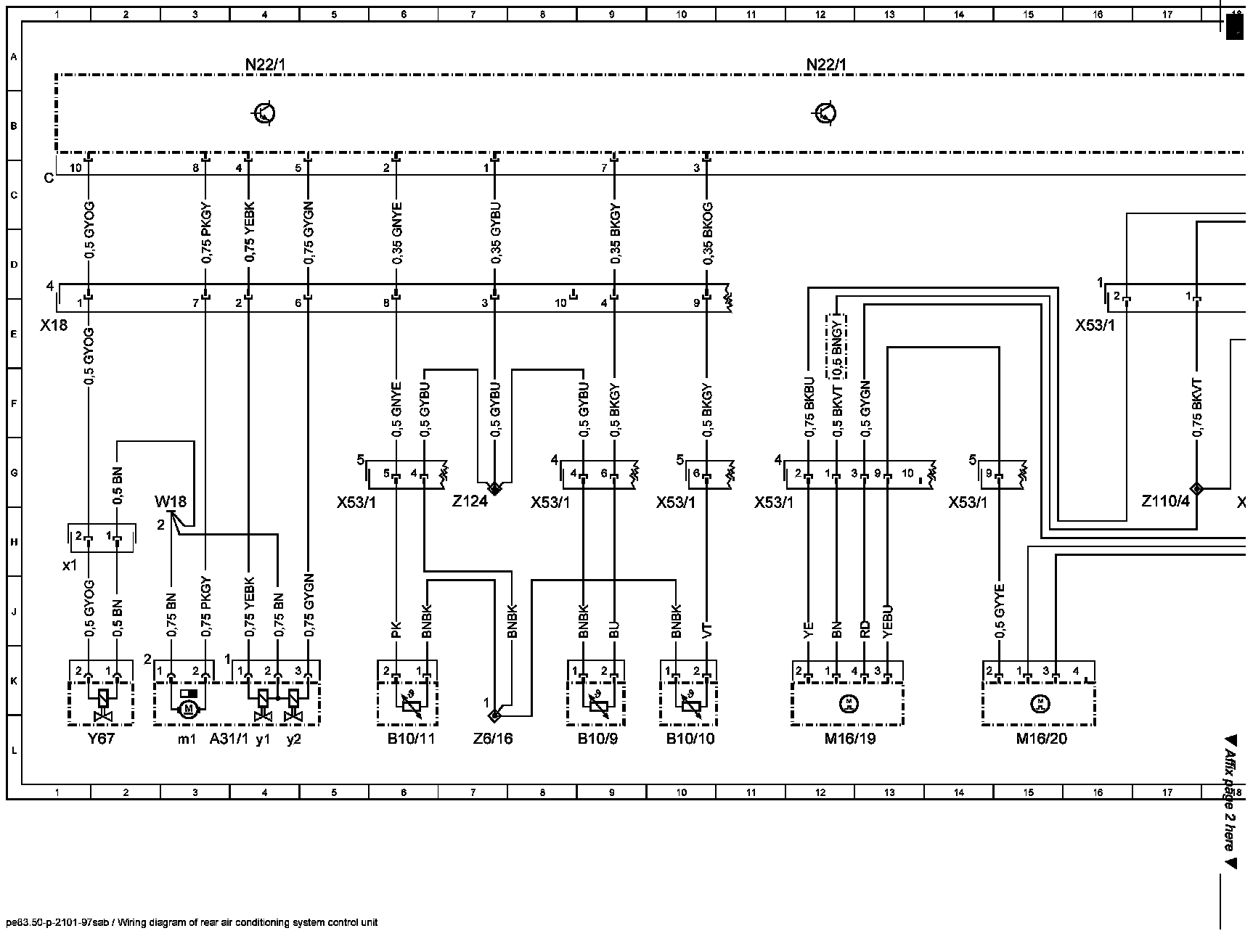

Wiring Diagram (Part 1):

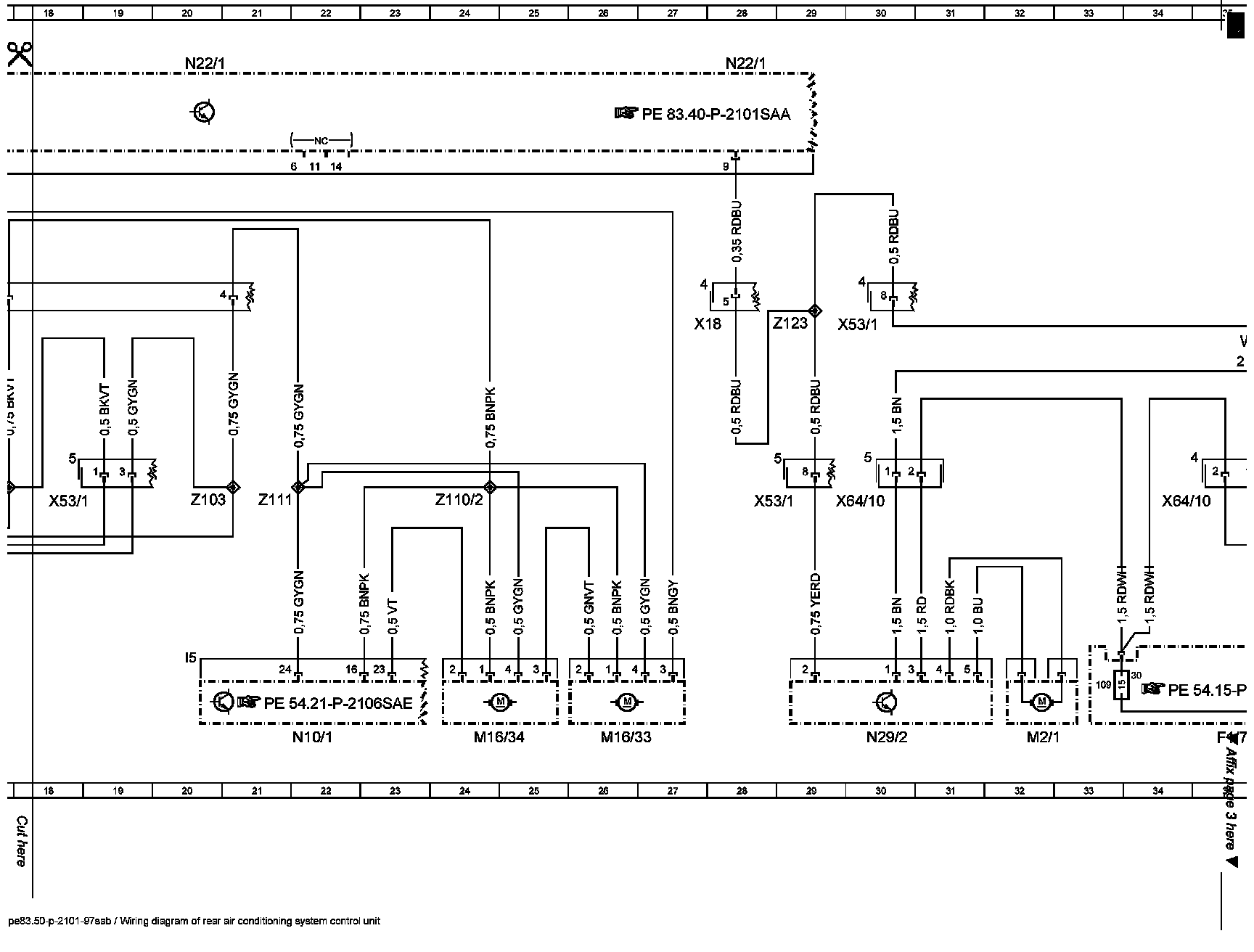

Wiring Diagram (Part 2):

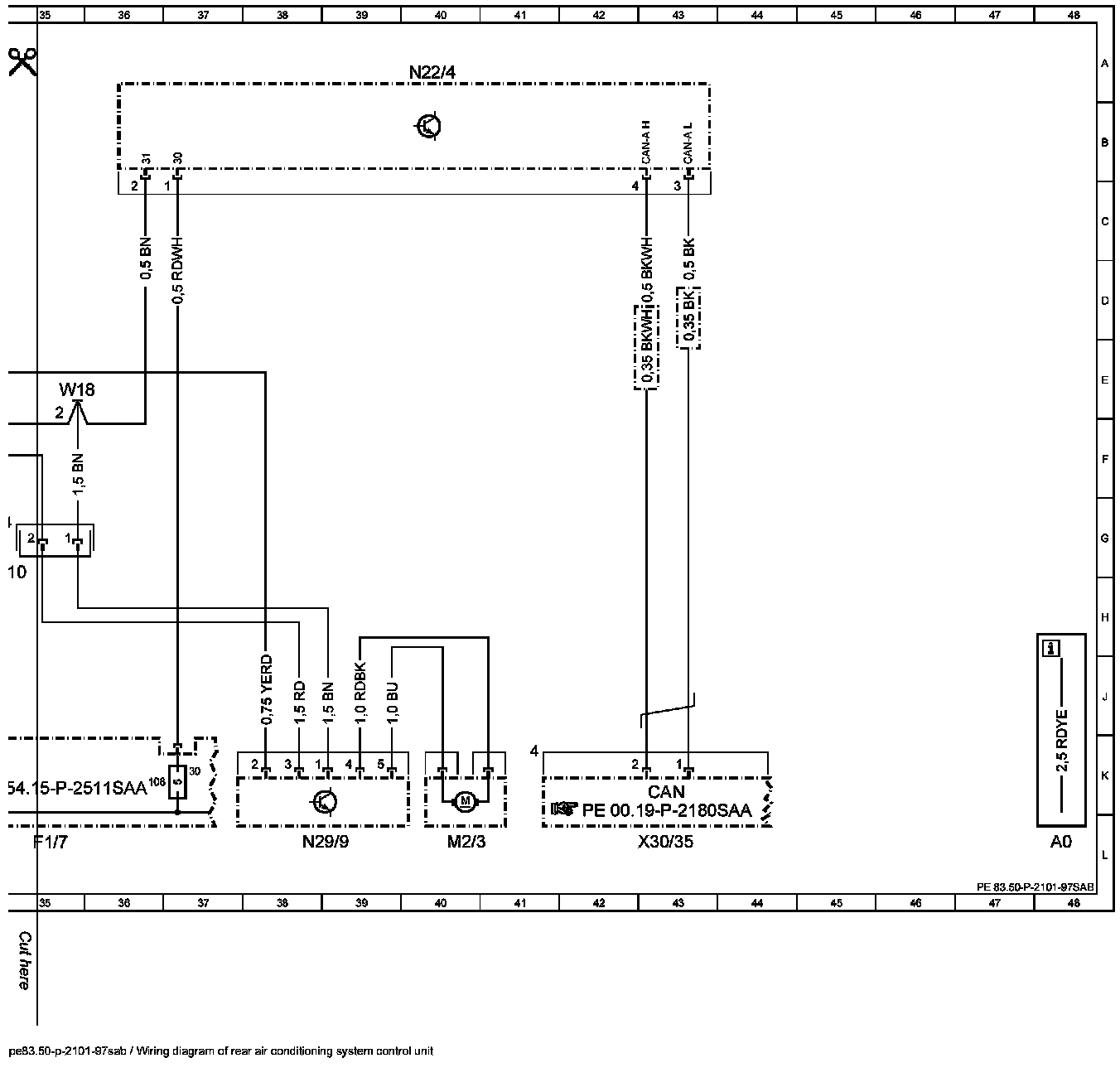

Wiring Diagram (Part 3):

Component Description/Coordinates, A0 To X53/1:

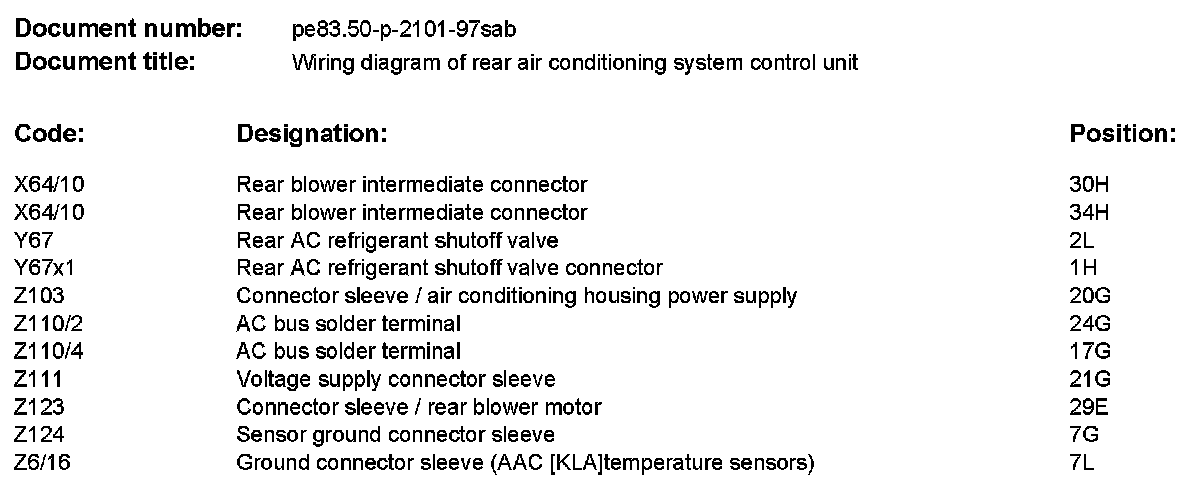

Component Description/Coordinates, X64/10 To Z6/16:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
