PE54.15-P-2514SAB Wiring Diagram, Interior Prefuse Box (F32/4)

PE54.15-P-2514SAB Wiring Diagram, Interior Prefuse Box (F32/4)
- with CODE (Z19) S600 Pullman Guard state sedan

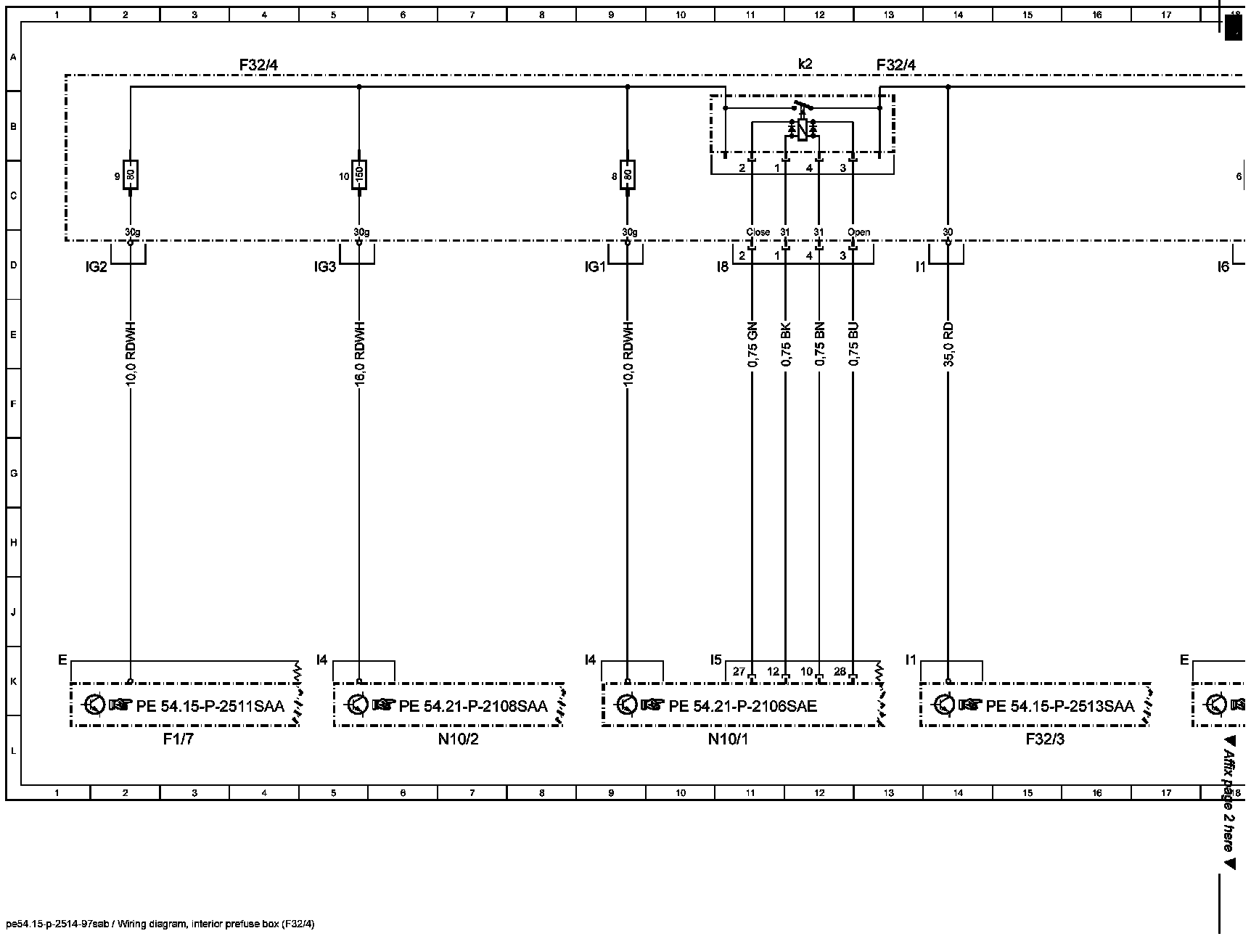

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

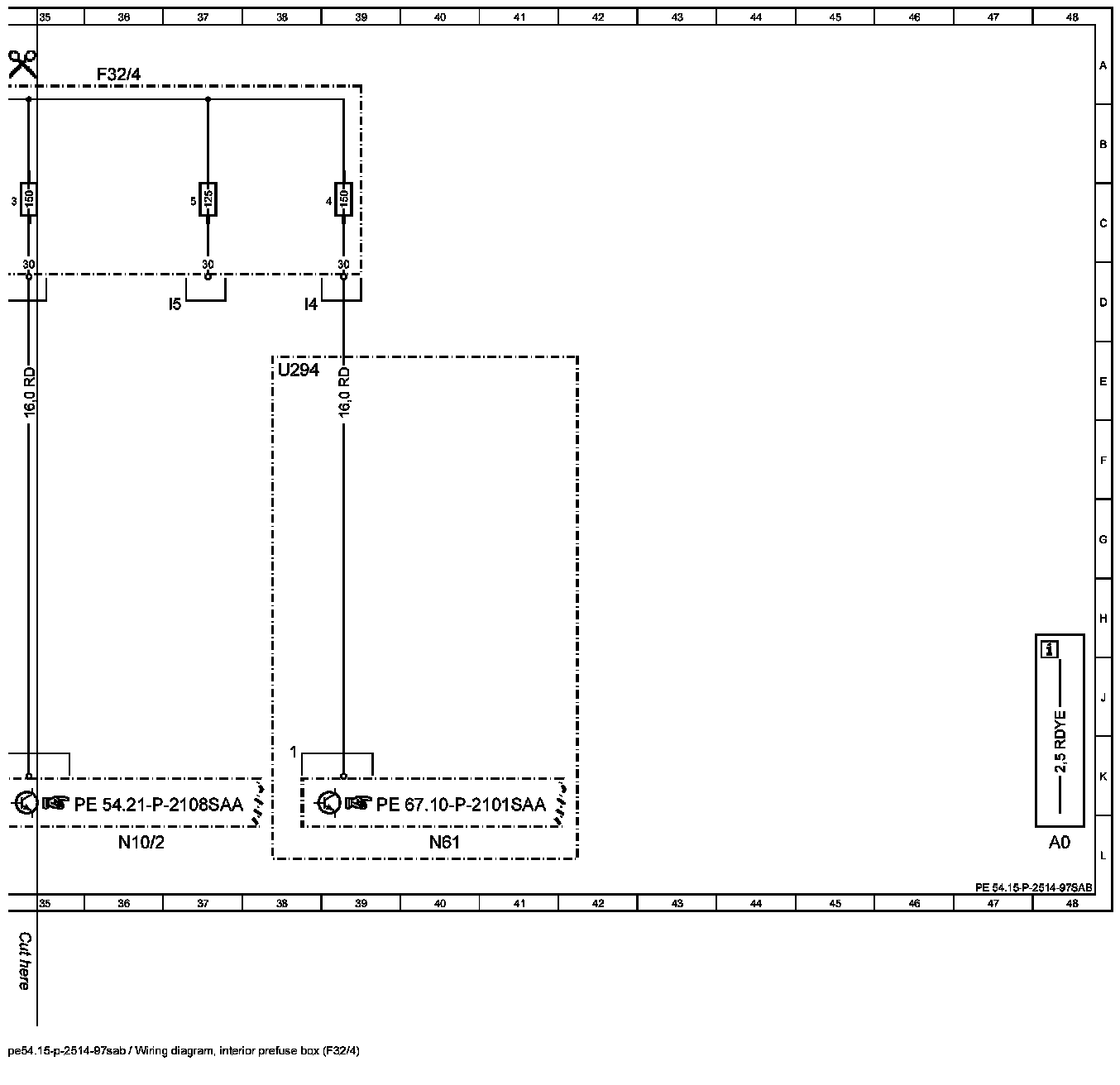

Wiring Diagram (Part 3):

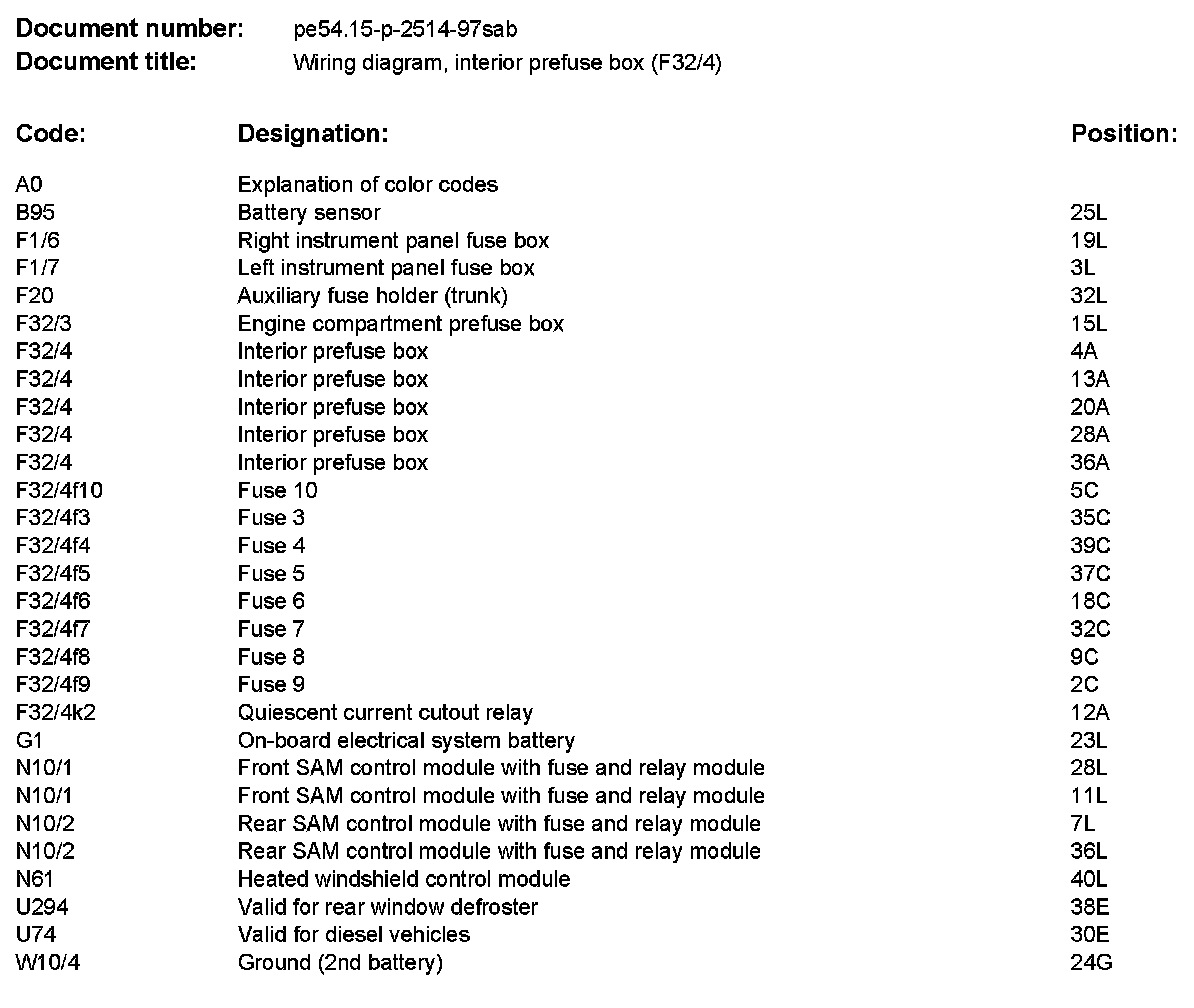

Component Description/Coordinates, A0 To W10/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
