BA77.37-P-1000-01A Soft Top Hydraulic System
BA77.37-P-1000-01A Soft Top Hydraulic System
BA77.37-P-1000-01A Soft Top Hydraulic System

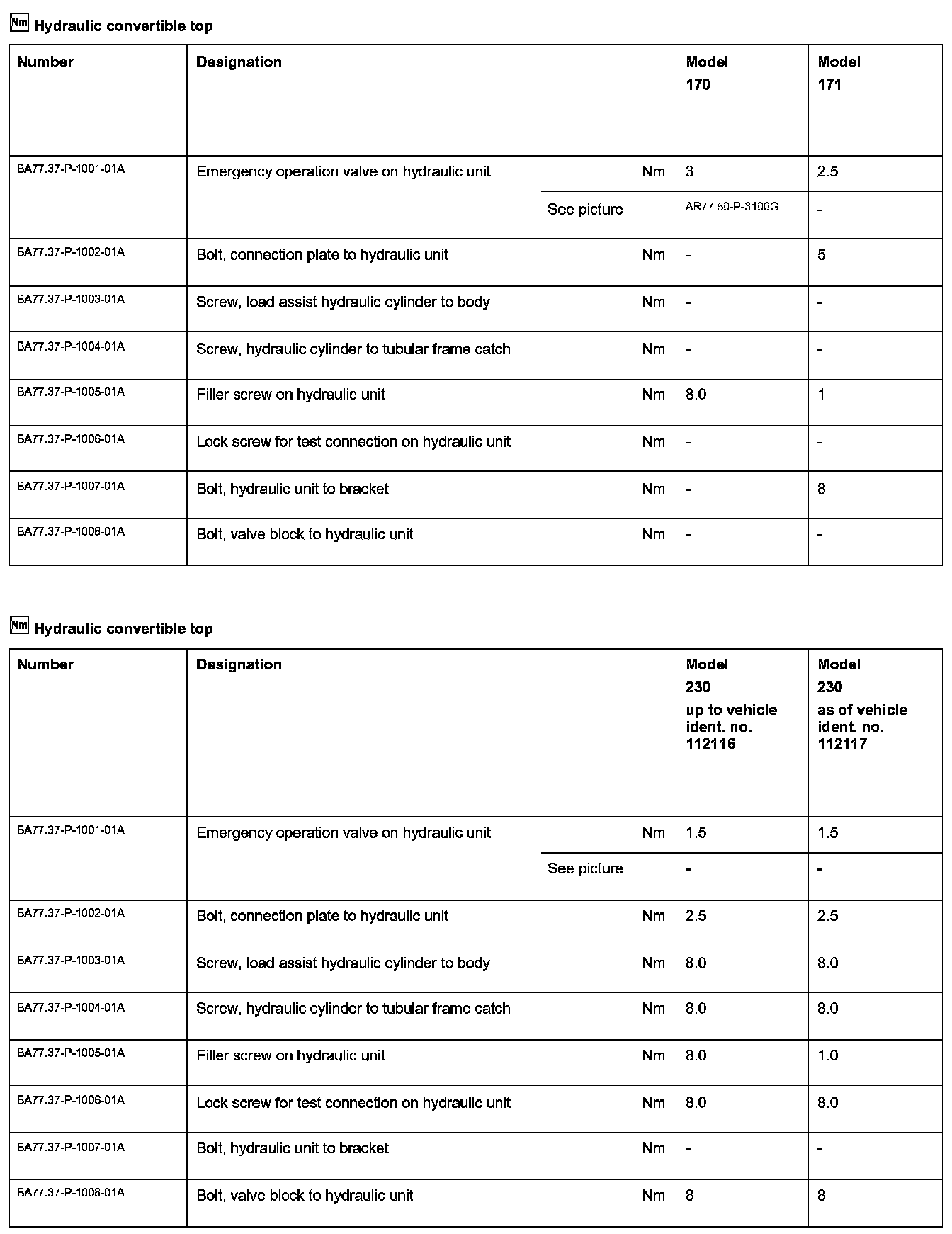

Hydraulic Convertible Top:

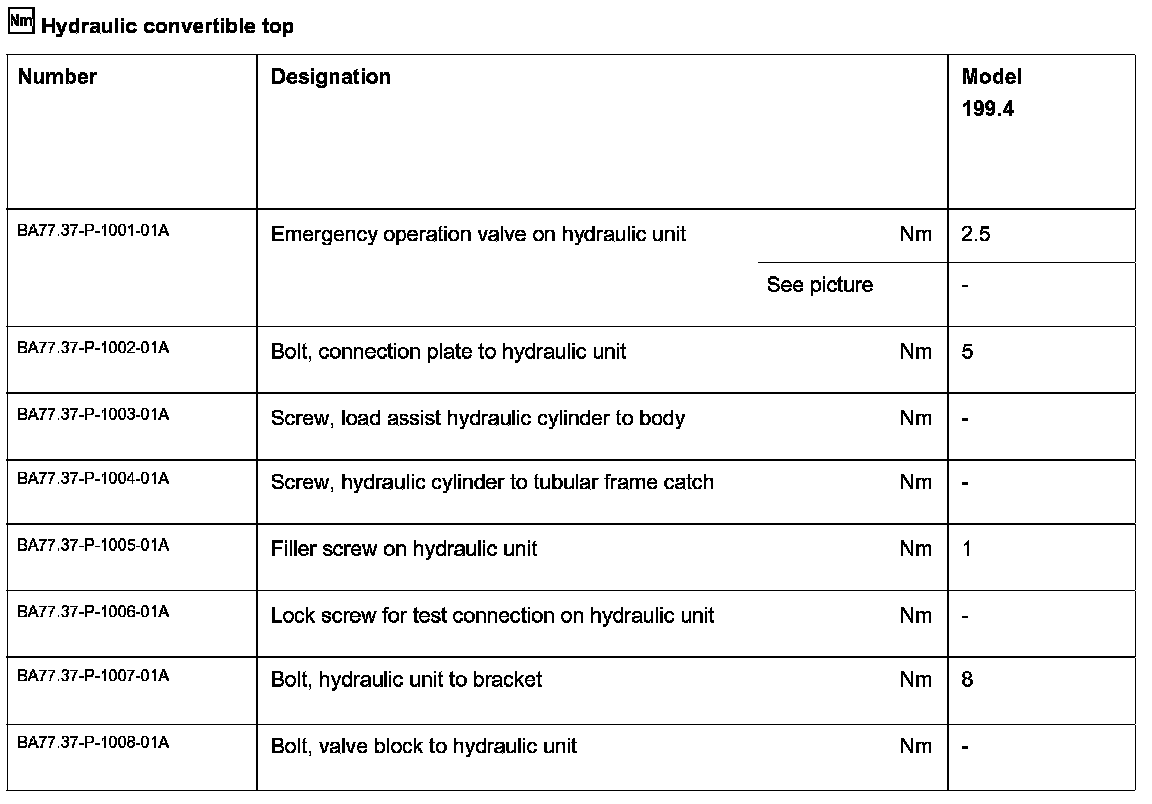

Hydraulic Convertible Top:
