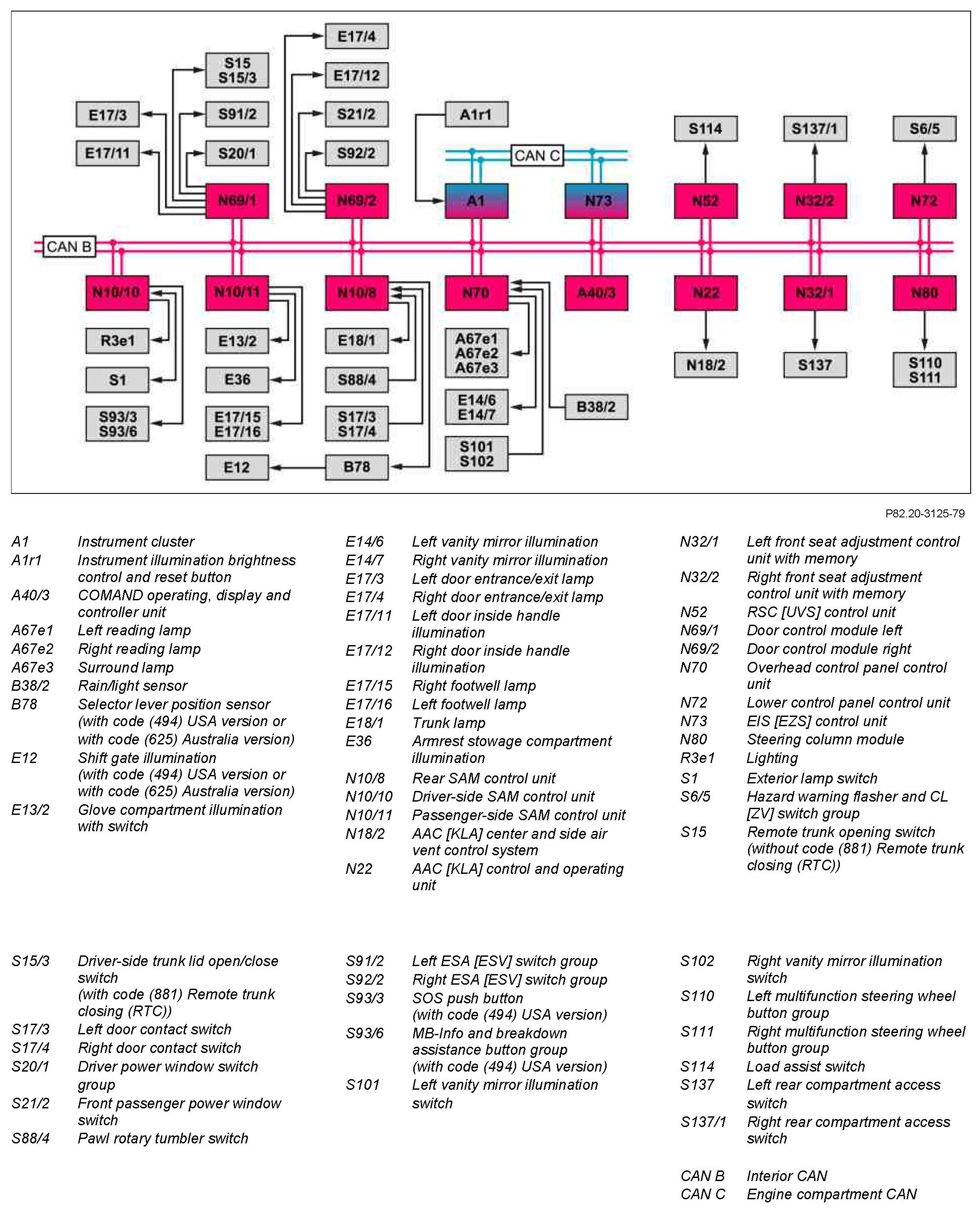

GF82.20-P-0002-04RI Block Diagram For Interior Illumination (IBL)
GF82.20-P-0002-04RI Block Diagram For Interior Illumination (IBL)
GF82.20-P-0002-04RI Block Diagram For Interior Illumination (IBL)
Component Identification:
