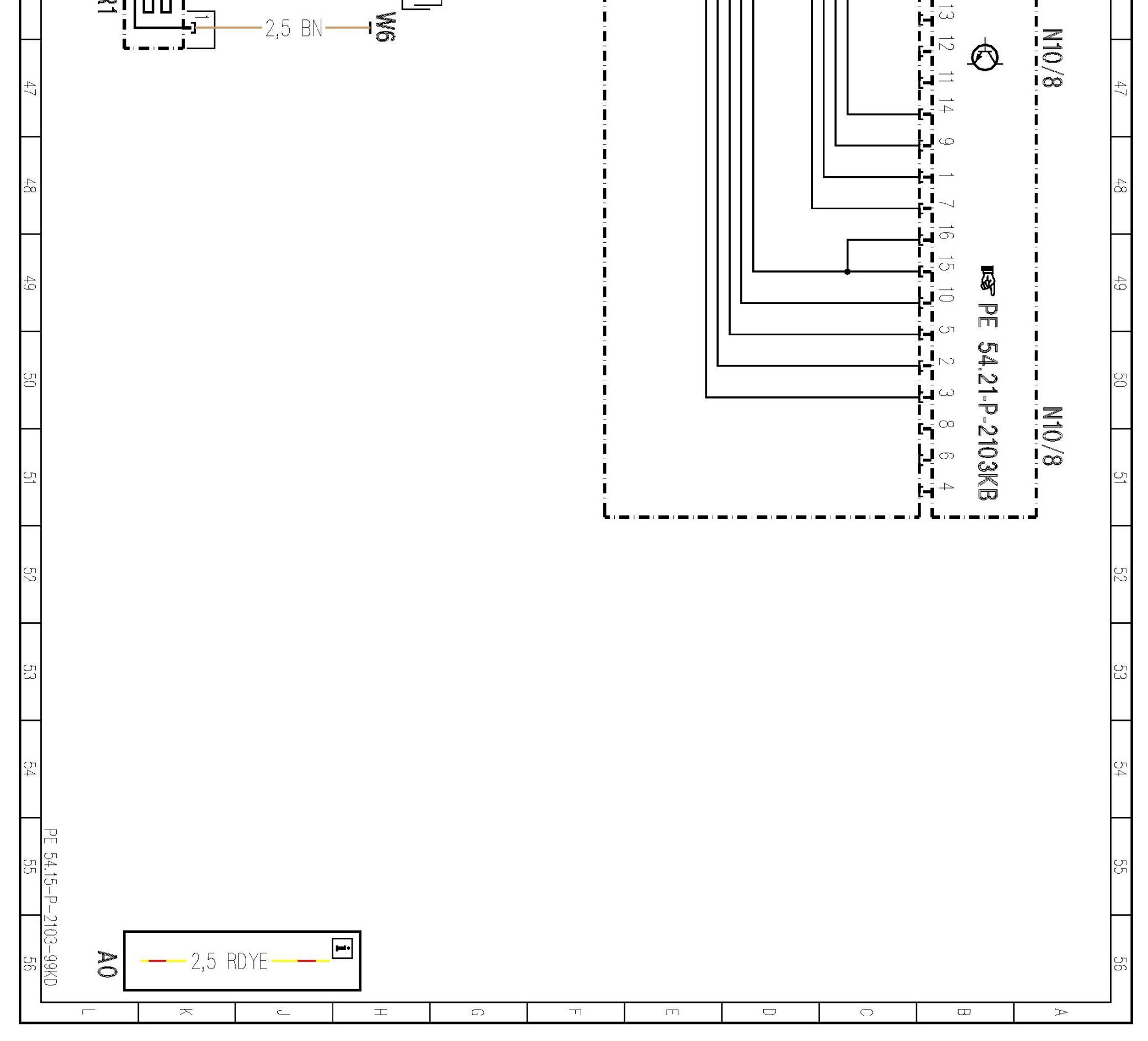

PE54.15-P-2103KD Fuse and Relay Box, Rear, Wiring Diagram

PE54.15-P-2103KD Fuse and Relay Box, Rear, Wiring Diagram

Model 230

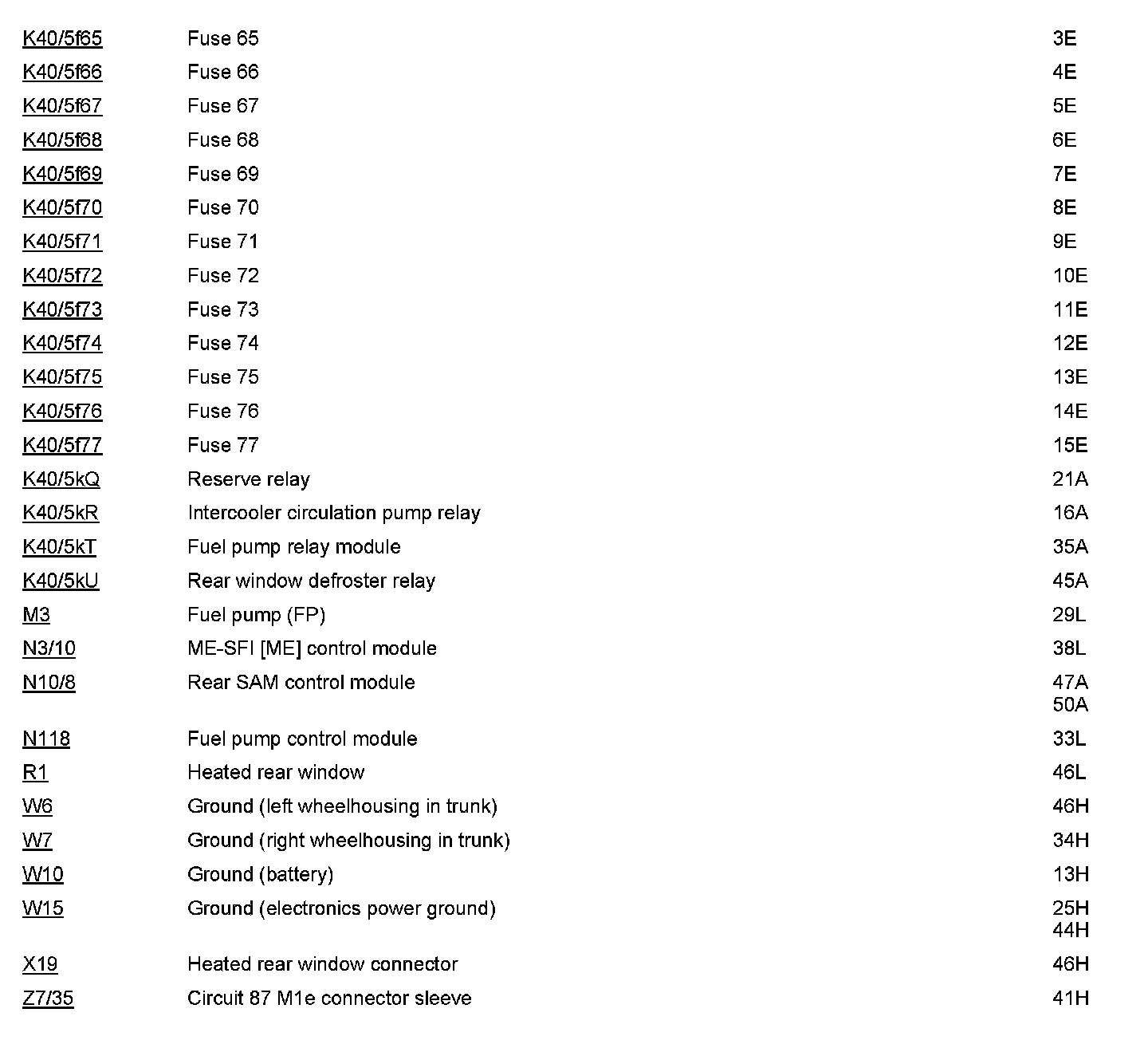

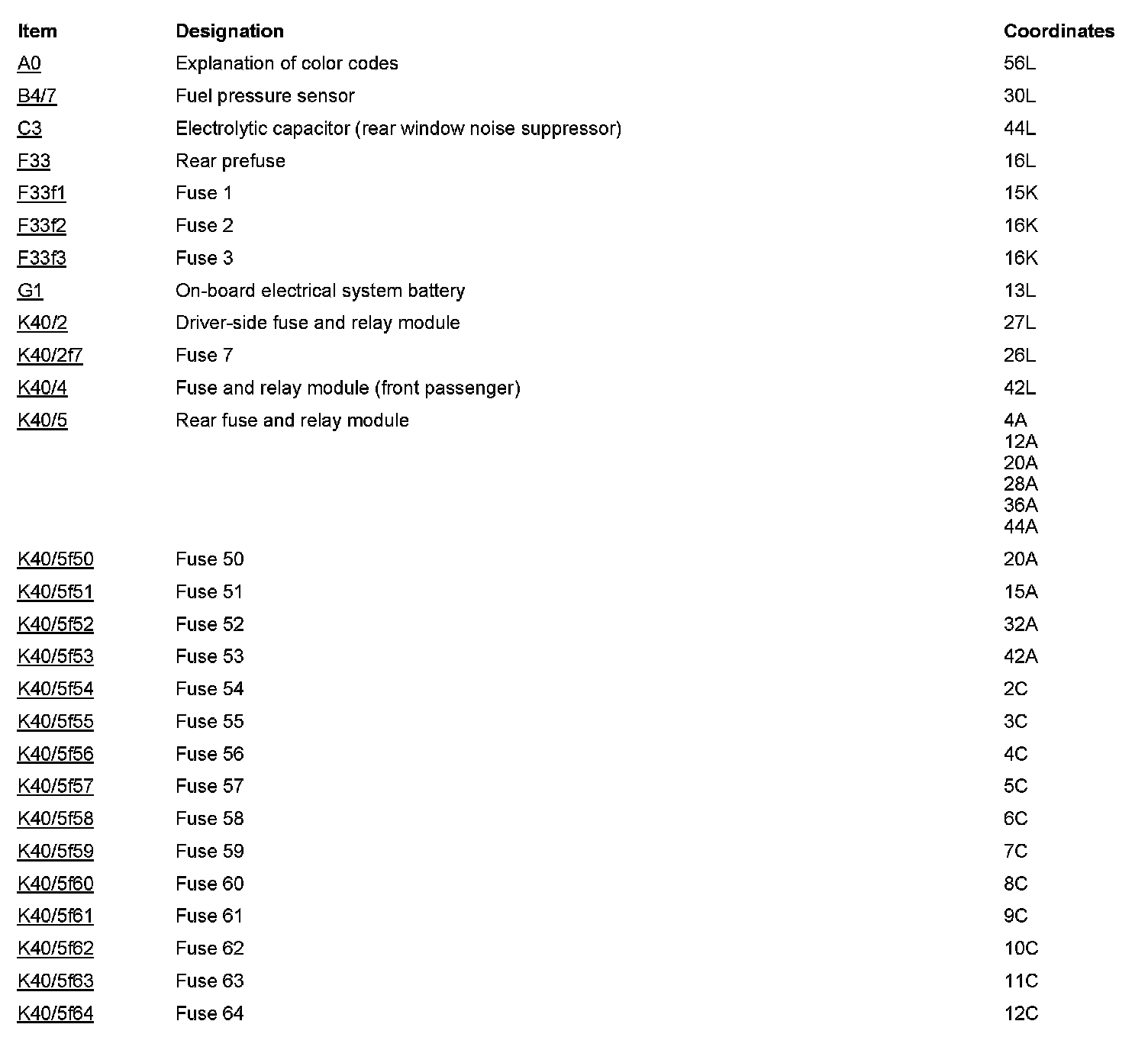

- with Engine 156 Fuse and relay box K40/5

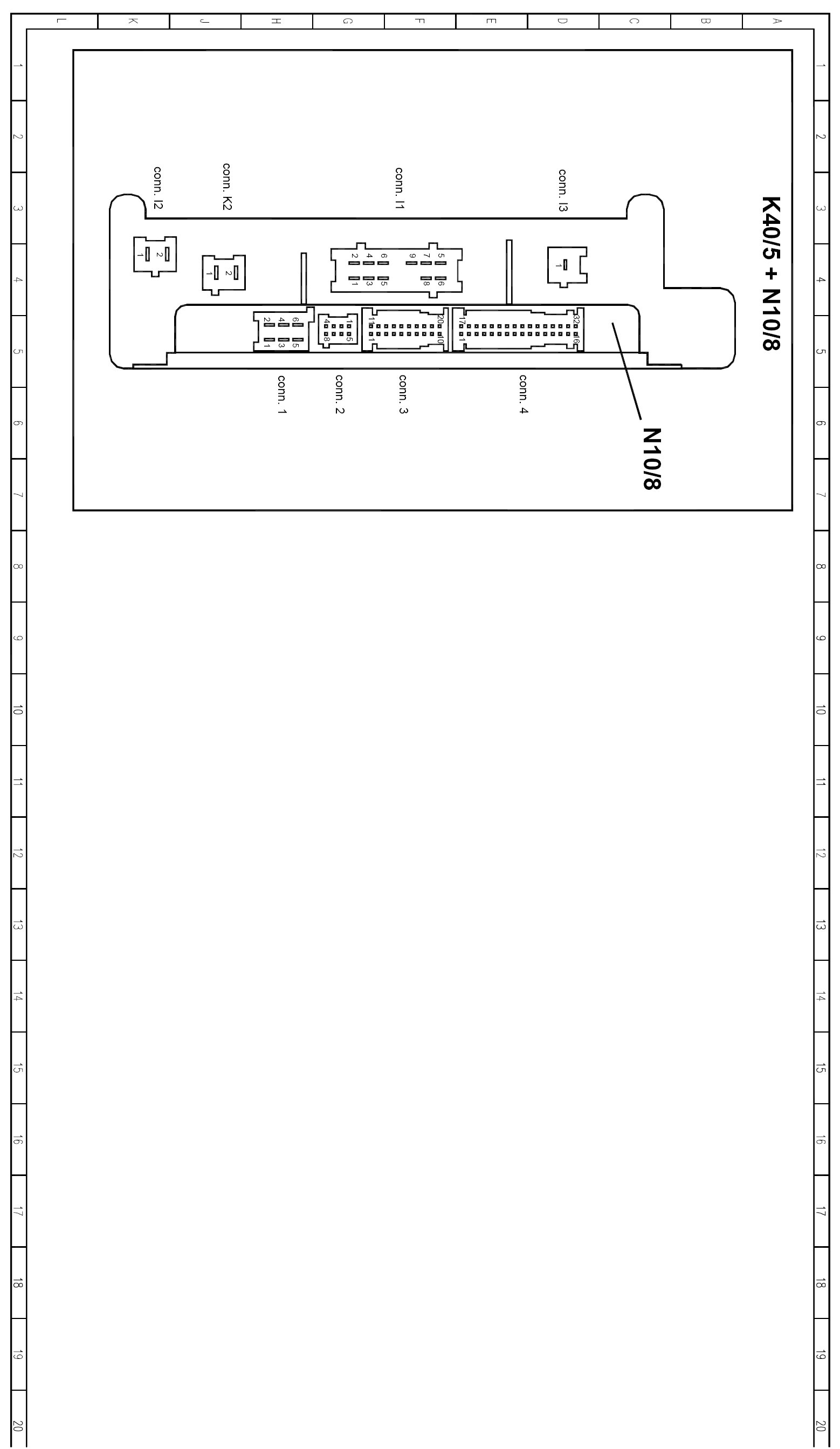

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
