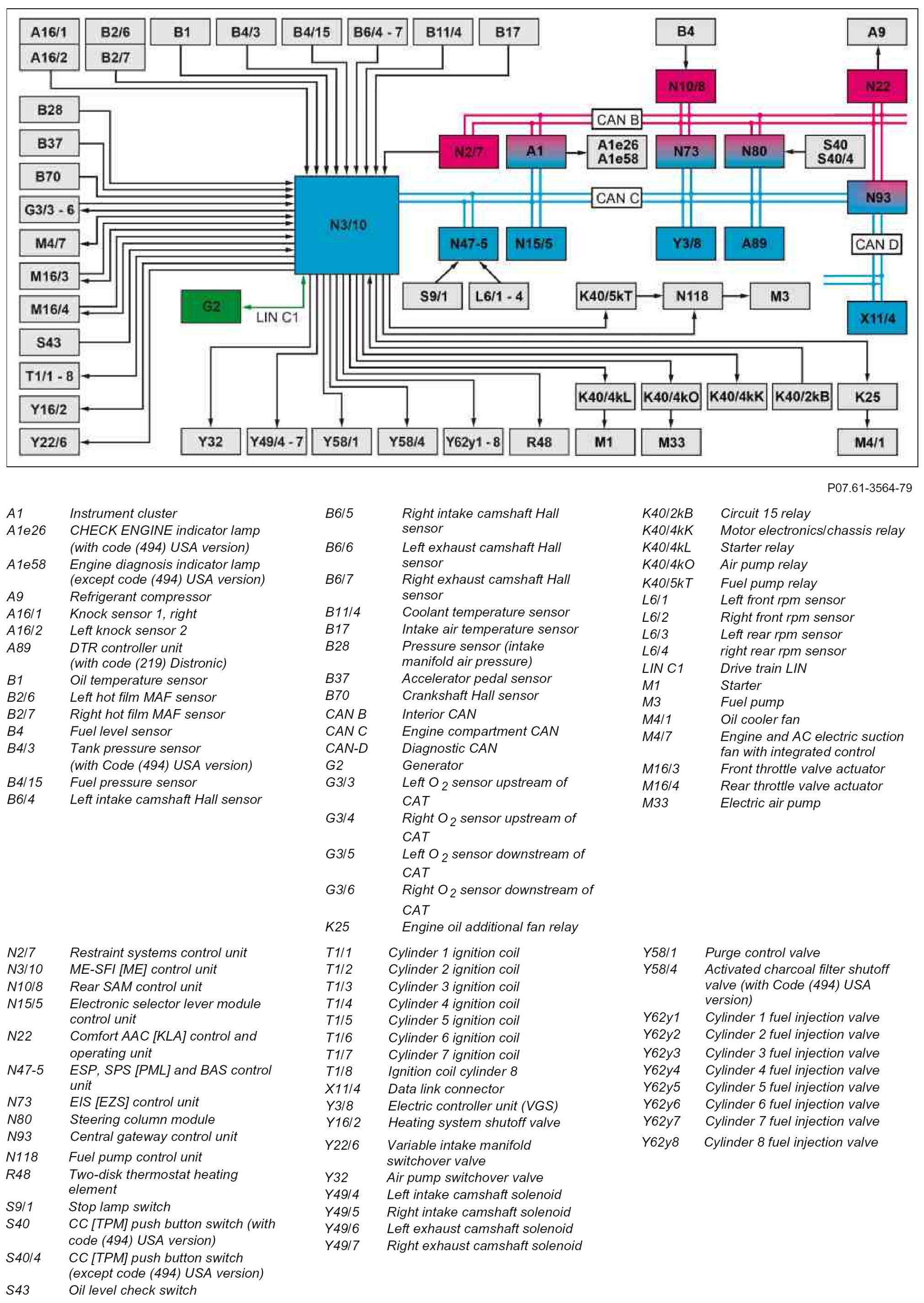

GF07.61-P-0001-13MAR Motor Electronics (ME-SFI) Gasoline Injection and Ignition System, Block Diagram



GF07.61-P-0001-13MAR Motor Electronics (ME-SFI) Gasoline Injection And Ignition System, Block Diagram
- as of model year 09

Component Identification:
