GF82.60-P-5002RI Media Interface Adapter Cable, Component Description

GF82.60-P-5002RI Media Interface Adapter Cable, Component Description

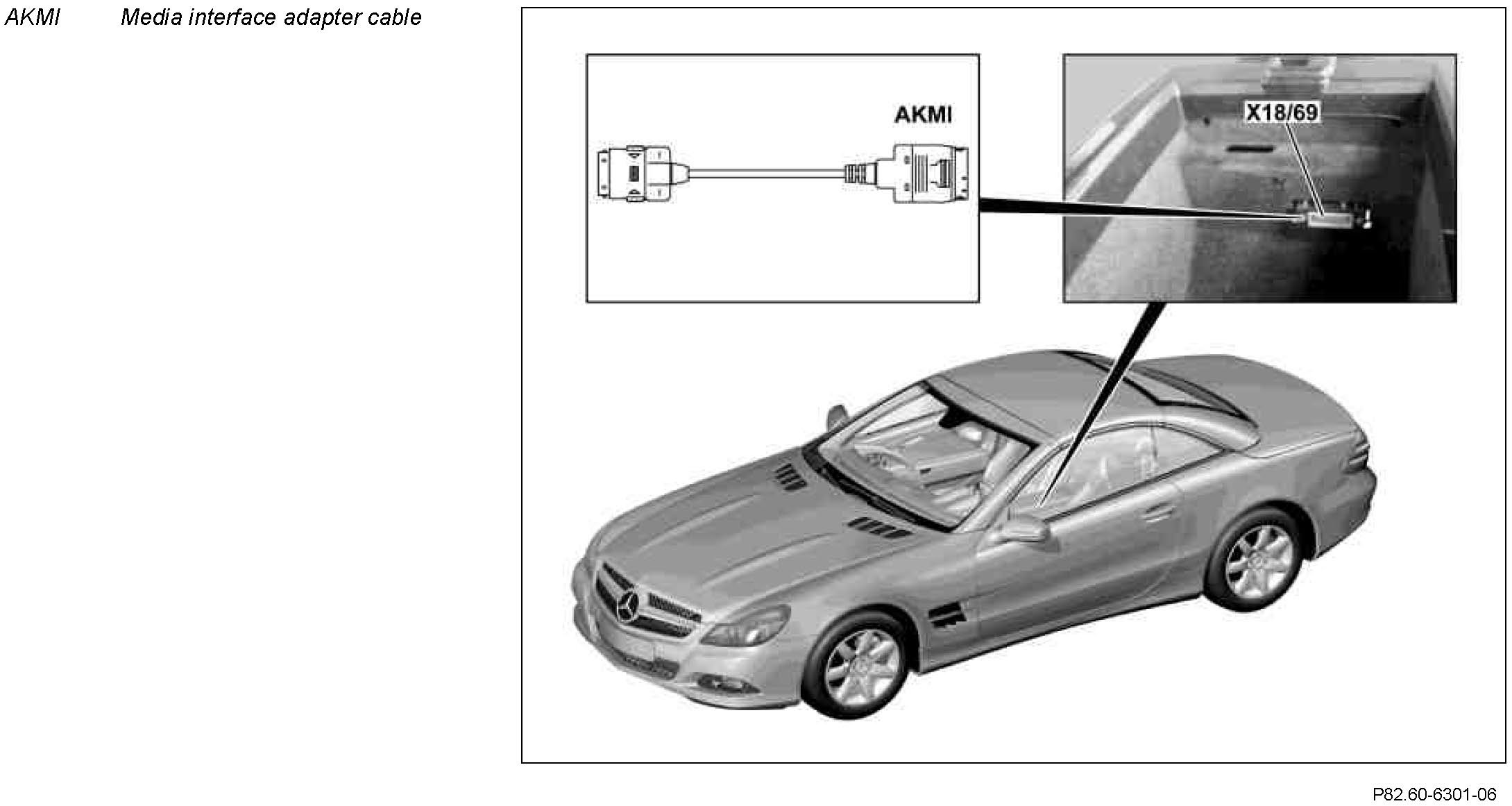

Component Identification:

Location
The adapter cable is connected by the user to the media interface connector (X18/68) and is thus also located in the stowage compartment of the center console.

Task
Relaying signals
- Power supply from media interface connector for the respective connected portable terminals and for USB
- Audio signals and data or video signals and data from the respective connected portable terminals to the media interface connector
- Operating and control signals from media interface connector for the respective connected portable terminals

Design







Variants
- Adapter cable without video connection:
- With code (528) COMAND with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer and with code (863) Digital/analog TV tuner, with code (862) TV preinstallation, with code (498) Japan version or with code (865) TV tuner

- Adapter cable with video connection:
- With code (528) COMAND with DVD changer, with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer and except code (863) Digital/analog TV tuner, except code (862) TV preinstallation, except code (498) Japan version or except code (865) TV tuner
