GF88.79-P-4003RI Outside Mirror, Component Description



GF88.79-P-4003RI Outside Mirror, Component Description
- refinement package
- as of model year 09

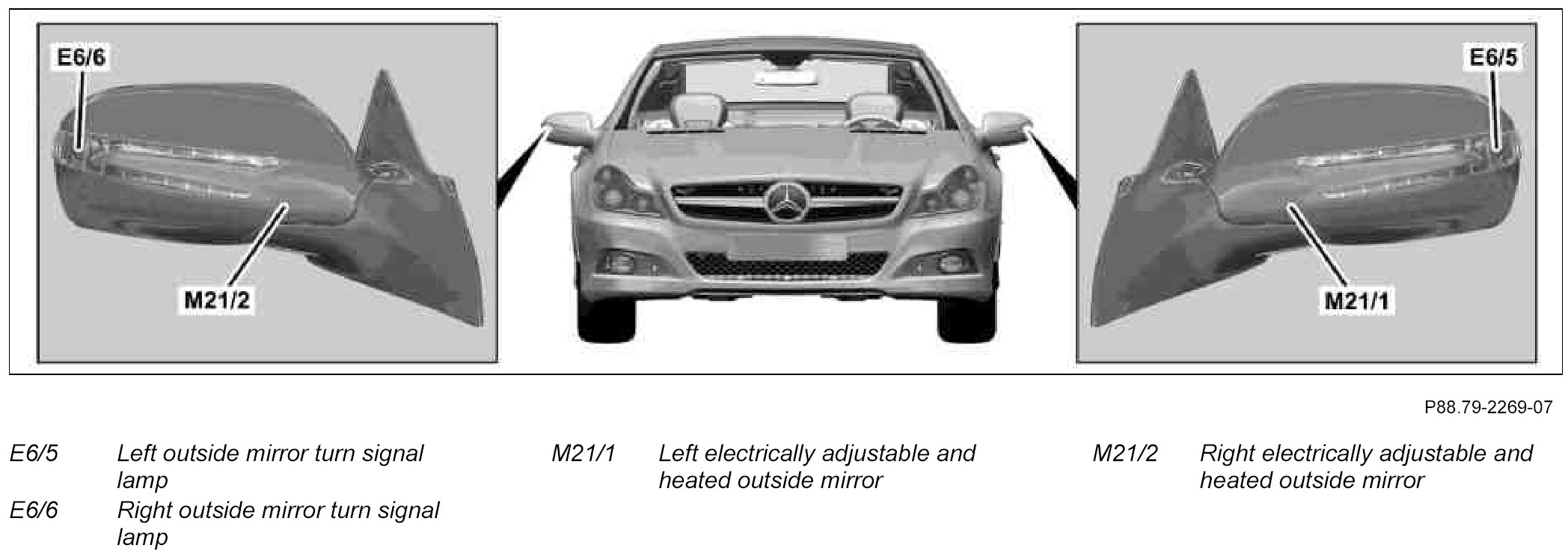

Component Identification:






Location
The outside mirror is located at the front of the corresponding door.

Task
The outside mirror allow, in addition to the inside rear mirror (A67), better monitoring of the rear traffic and are electrically adjustable for this purpose.

Design
The following components are installed in the left electrically adjustable and heated outside mirror:
- Left outside mirror turn signal lamp
- Automatic dimming mirror (M21/1h1) (for code (249)
Automatically dimming inside rearview mirror and outside mirror (driver))
- Mirror up/down adjustment motor (M21/1m1)
- Mirror in/out adjustment motor (M21/1m2)
- Mirror fold-in motor (M21/1m3)
(with code (500) Folding left/right outside mirrors)
- Mirror heater (M21/1r1)
- Mirror adjustment up/down potentiometer (M21/1r2) (with code (241) Memory switch for left electrically adjustable driver seat)
- Mirror adjustment in/out potentiometer (M21/1r3) (with code (241) Memory switch for left electrically adjustable driver seat)

The following components are installed in the right electrically adjustable and heated outside mirror:
- Right outside mirror turn signal lamp
- Mirror up/down adjustment motor (M21/2m1)
- Mirror in/out adjustment motor (M21/2m2)
- Mirror fold-in motor (M21/2m3)
(with code (500) Folding left/right outside mirrors)
- Mirror heater (M21/2r1)
- Mirror adjustment up/down potentiometer (M21/2r2) (with code (241) Memory switch for left electrically adjustable driver seat)
- Mirror adjustment in/out potentiometer (M21/2r3) (with code (241) Memory switch for left electrically adjustable driver seat)

All of the components are directly actuated by the left door control unit (N69/1) or right door control unit (N69/2).
