GF91.30-P-2103RI Airscarf System Fan Motor, Component Description

GF91.30-P-2103RI Airscarf System Fan Motor, Component Description
- with CODE (403) Airscarf system

Component Identification:

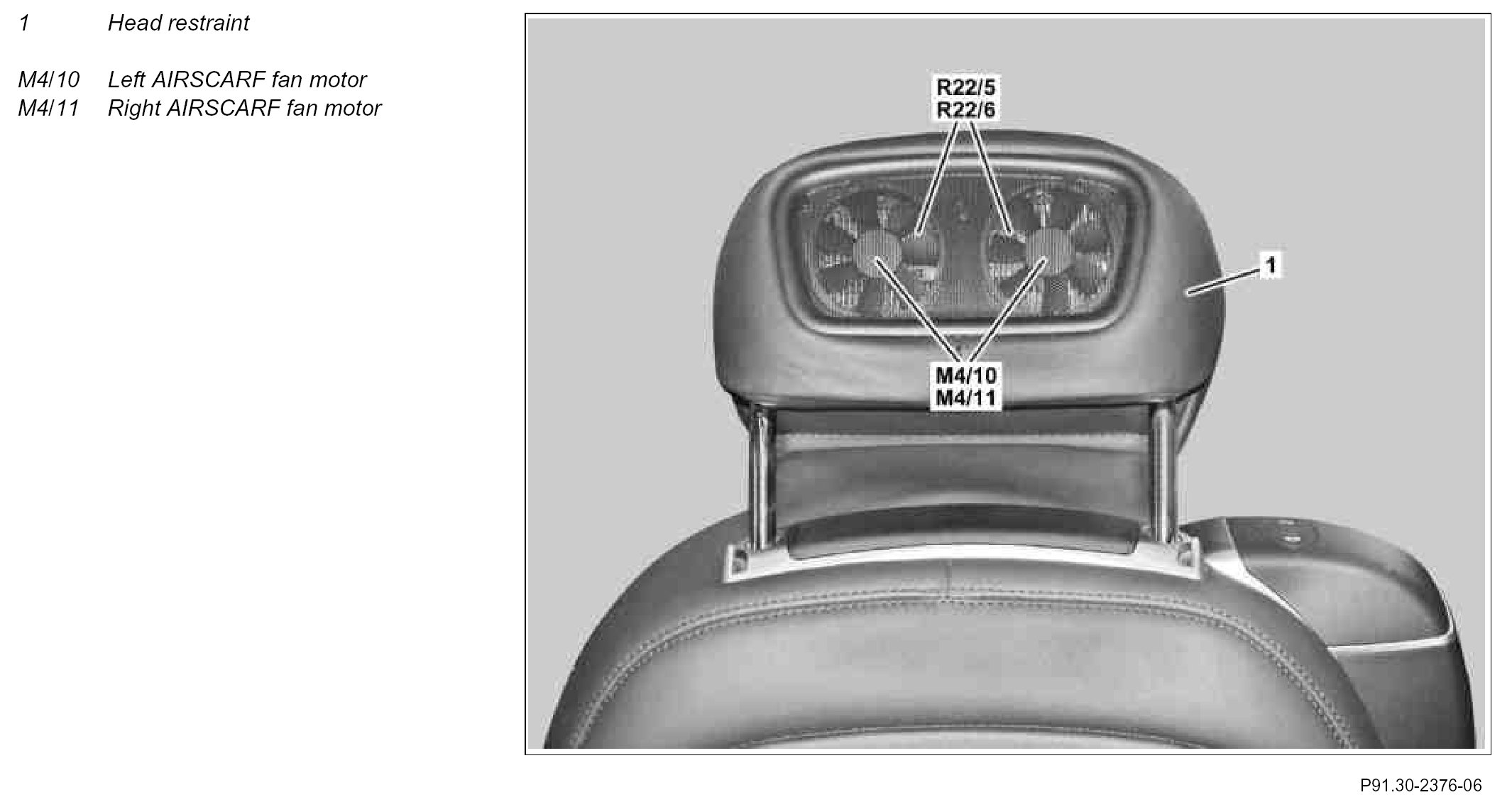

Location
The AIRSCARF fan motors are integrated into the front seat head restraints.

Task
The AIRSCARF fan motors are actuated by the AIRSCARF control unit (N25/7). The AIRSCARF fan motors are used to provide the air required to ventilate the driver or front passenger headroom.
