GF91.30-P-5220RI Front Seat Ventilation Blower Regulator, Component Description

GF91.30-P-5220RI Front Seat Ventilation Blower Regulator, Component Description
- with CODE (401) Front deluxe seats, including seat heating and seat ventilation

Component Identification:

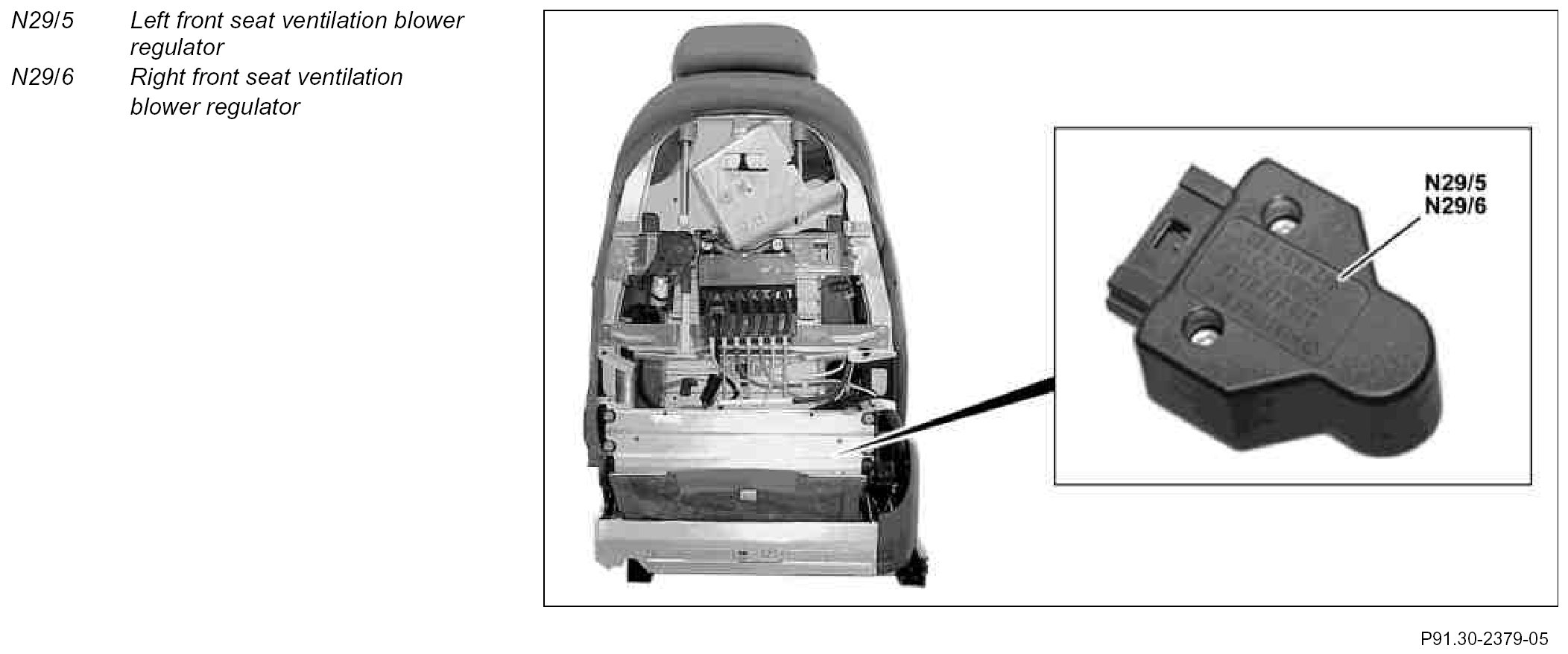

Location
The blower regulators are located in the backrest frame of the respective front seat.

Task
The blower regulators are actuated by the left front seat adjustment control unit with memory (N32/1) or the right front seat adjustment control unit with memory (N32/2) and regulate the following motor groups depending on selected seat ventilation intensities:
^ Left front seat cushion ventilation motor group (M18/9)
^ Left front seat backrest ventilation motor group (M18/10)
^ Right front seat cushion ventilation motor group (M18/11)
^ Right front backrest ventilation motor group (M18/12)

The actuation and the power supply (circuit 30, circuit 31) are provided by the left front seat adjustment control unit or the right front seat adjustment control unit. The electronic unit integrated into the blower regulators enables the power supply for the motor group to be held constant corresponding to the actuation level.
