GF40.15-P-5132RI TPM (RDK) Wheel Antenna, Component Description

GF40.15-P-5132RI TPM [RDK] wheel antenna, component description
- with CODE (475) Tire pressure monitor (premium)
- Siemens company
- refinement package
- as of model year 09

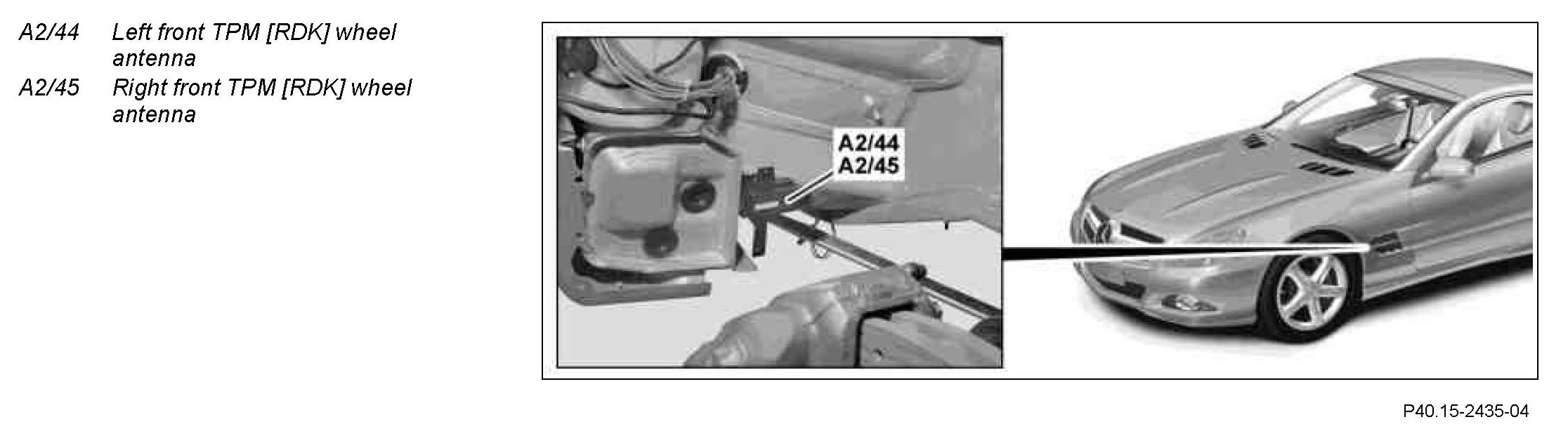

Component Identification:

Location
The left front TPM [RDK] wheel antenna is installed in the left front wheel well. The right front TPM [RDK] wheel antenna is installed in the right front wheel well.

Task
The TPM [RDK] wheel antennas each transmit a pulse when prompted by the TPM [RDK] control unit (N88). The pulses received from the TPM [RDK] control unit are used to determine the location of the front wheels and enable the display of wheel related pressures.

The TPM wheel antennas are actuated by the TPM [RDK] control unit over the local interconnect network (LIN).
