Air Bag: Service and Repair

AR91.60-P-0660RA Remove/Install Airbag Unit On The Steering Wheel
- as of 3.3.08 [models 171.4 and 219.3]
- as of 29.1.08 [model 230.4]
- with CODE (809) Model Year 2009 [models 171.4, 219.3 and 230.4]

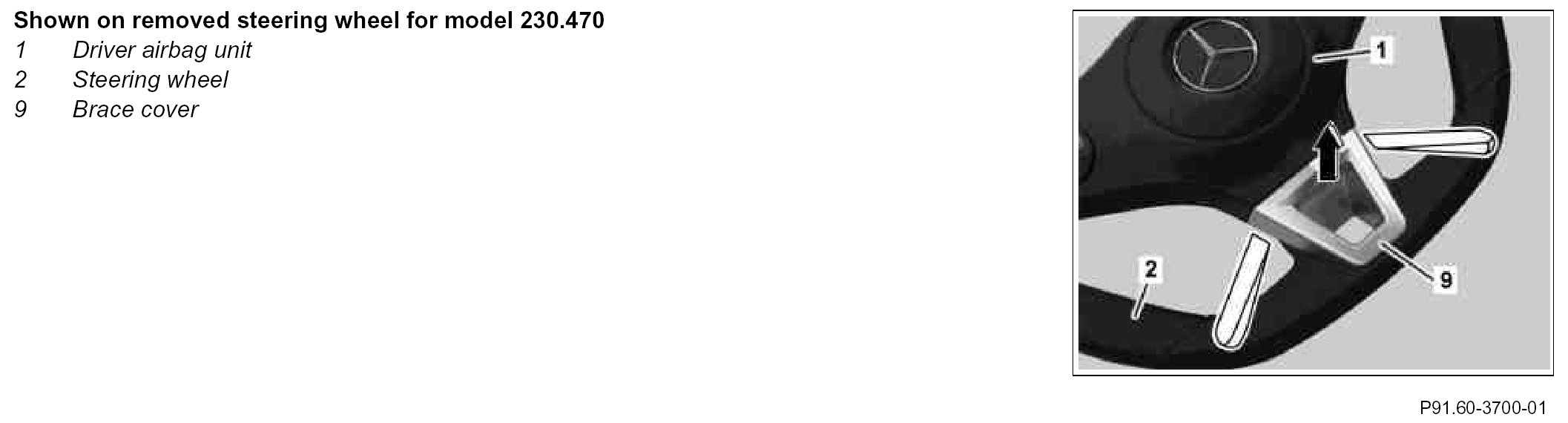

Component Identification:

Component Identification:

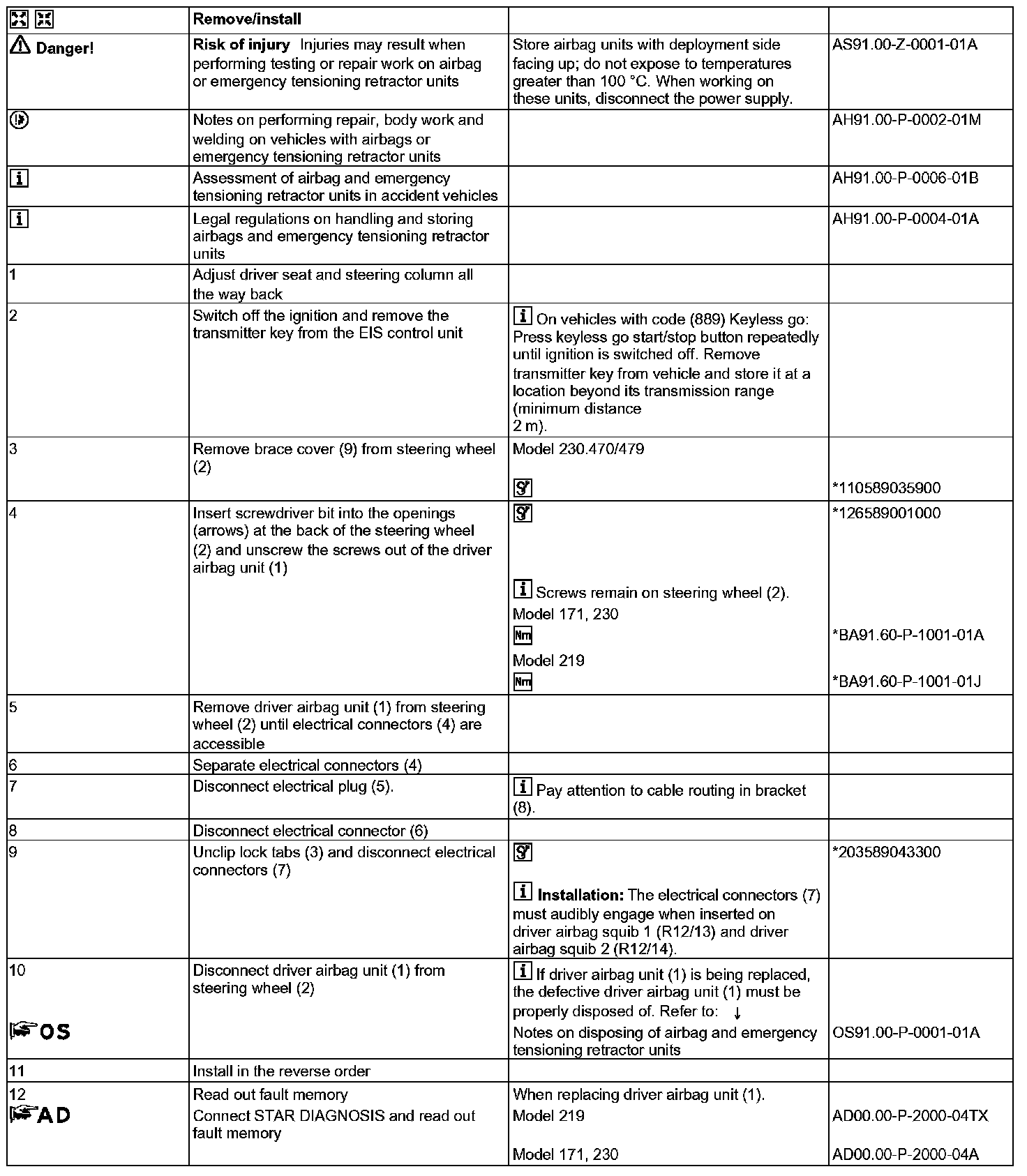

Steps 1 - 12:

Airbag:

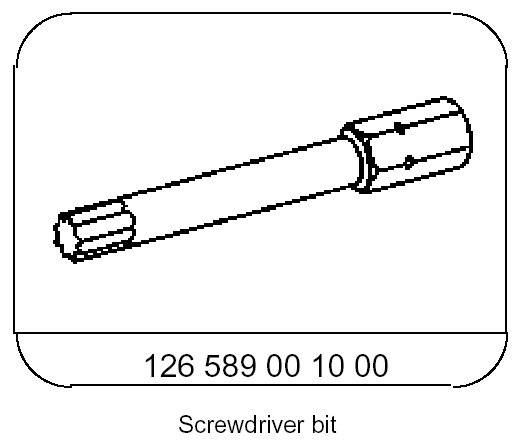

Special Tools:

Special Tools:

Special Tools:
