GF80.20-P-4138RC Fuel Filler Flap CL Motor, Component Description

GF80.20-P-4138RC Fuel Filler Flap CL Motor, Component Description

Component Identification:

Location

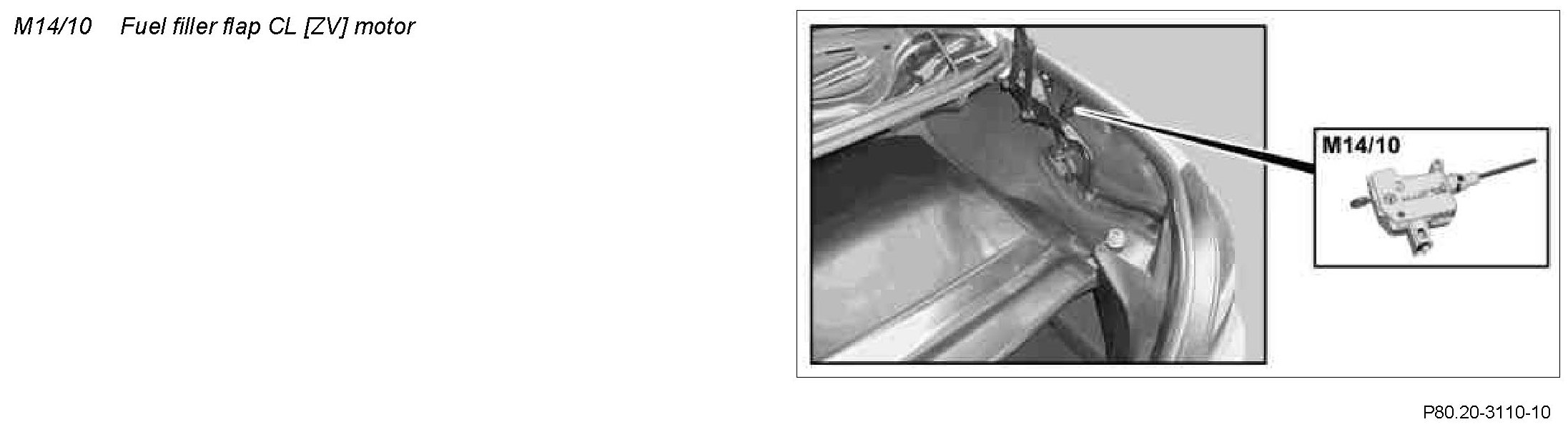

The fuel filler flap CL [ZV] motor is located on the right rear fender in the vicinity of the fuel filler flap.


Task
The fuel filler flap CL [ZV] motor locks or unlocks the fuel filler flap and is actuated directly by the rear SAM control unit with fuse and relay module (N10/2).
