PE14.20-U-2052TC Electrical Function Schematic For Exhaust Gas Recirculation

PE14.20-U-2052TC Electrical Function Schematic For Exhaust Gas Recirculation

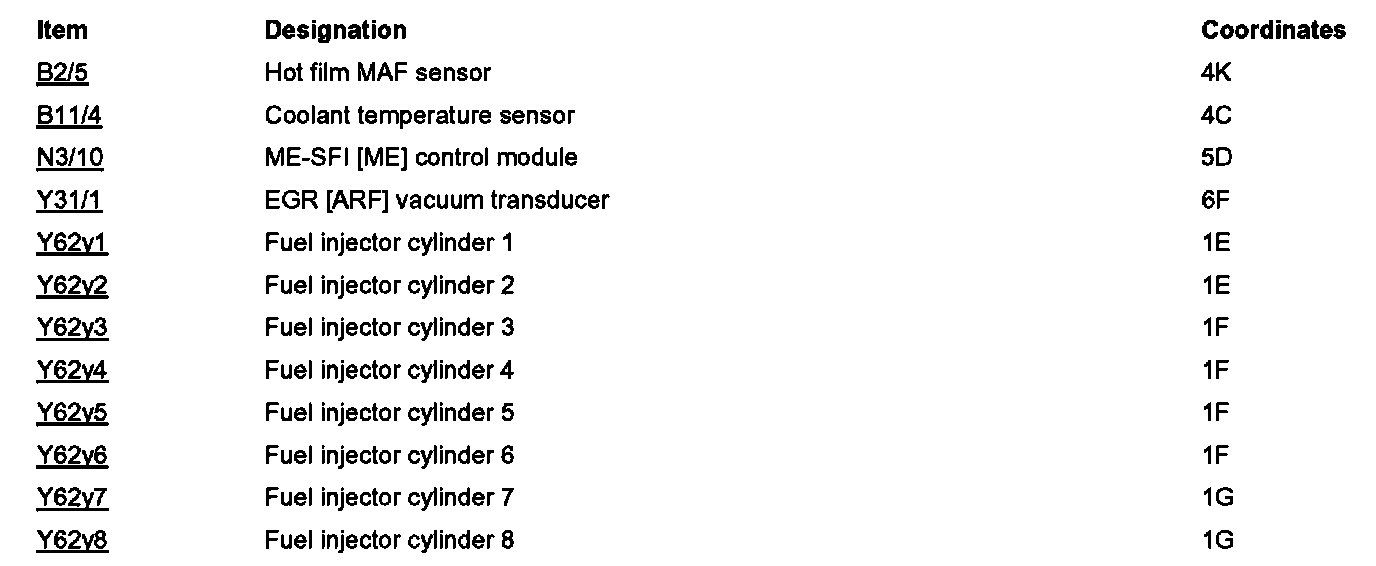

Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
