AR54.30-P-6015SX Remove/Install Instrument Cluster
AR54.30-P-6015SX Remove/Install Instrument Cluster
AR54.30-P-6015SX Remove/Install Instrument Cluster
Component Identification:

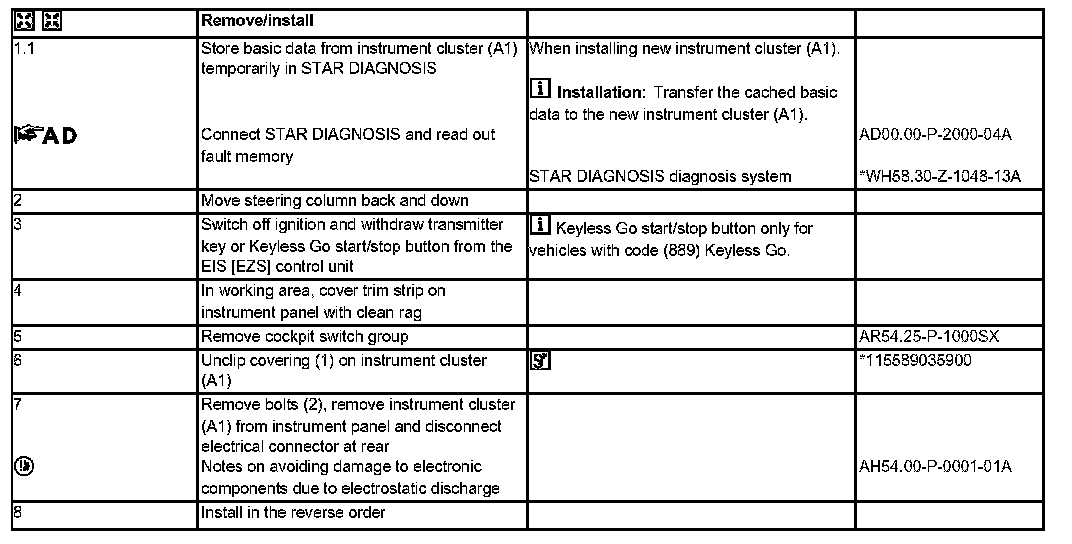

Steps 1.1 - 8:
Special Tools:
Commercially Available Tools:
