GF82.62-P-3125TX Antenna Splitter Component Description

GF82.62-P-3125TX Antenna Splitter Component Description
- GPS signal

Component Identification:

Location

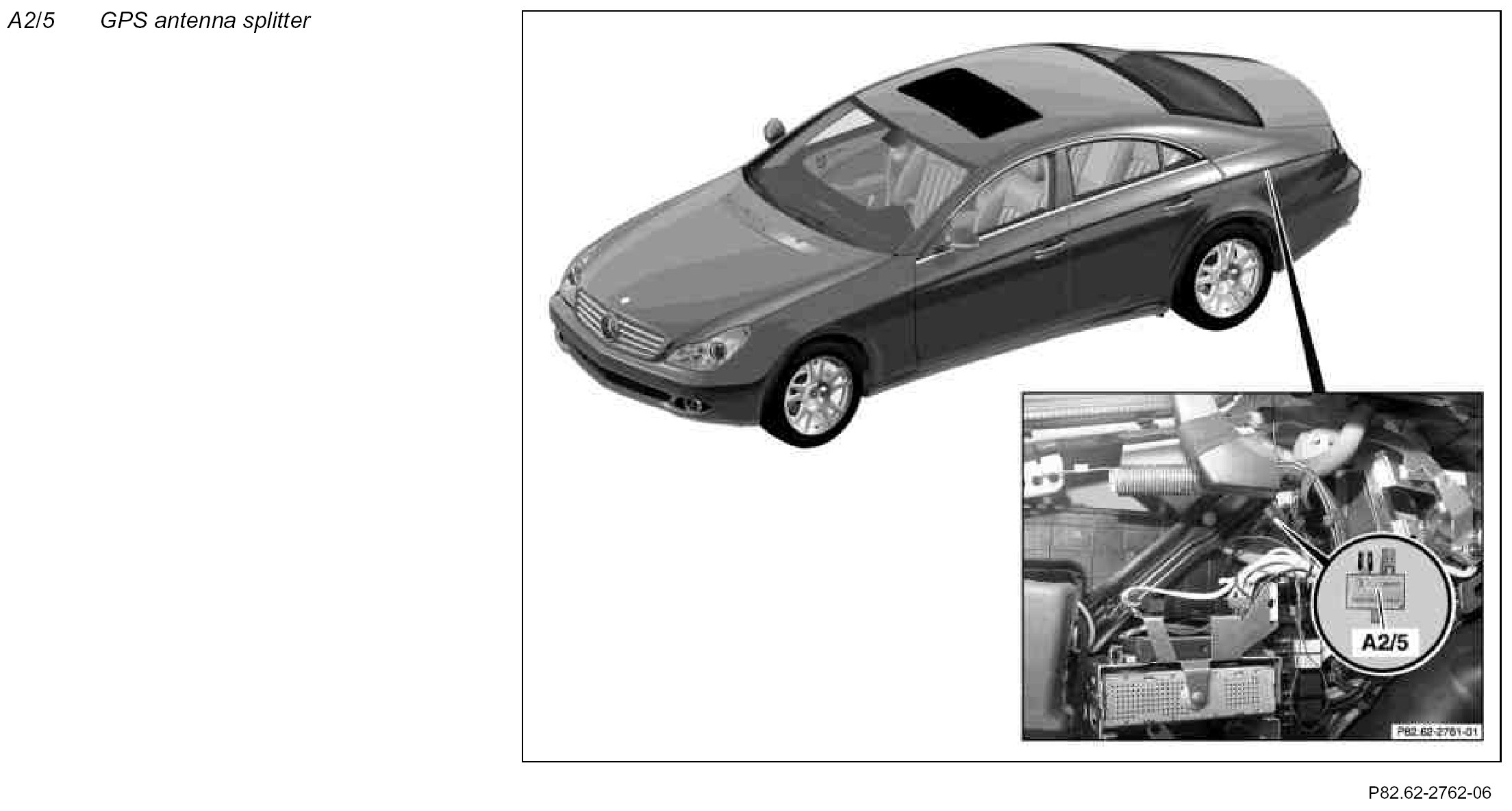

The GPS antenna splitter is located behind the left trunk luggage cover, which is concealed by the left trunk lid hinge.

Task (up to model year 09)
The GPS antenna splitter distributes the Global Positioning System (GPS) signal from the GPS antenna (A2/49a2) to the navigation processor (N41/1) and emergency call system control units (N123/4).

Task (as of model year 09)
The GPS antenna splitter distributes the GPS signal from the GPS antenna to the COMAND operating, display and controller unit (A40/3) and the emergency call system control unit

Design/function
The GPS antenna splitter consists of the duplexer, which is supplied with voltage (phantom voltage) by either the navigation processor or the emergency call system control unit over the coaxial line. The antenna splitter is equipped with 3 coaxial plug sockets for connection purposes.
