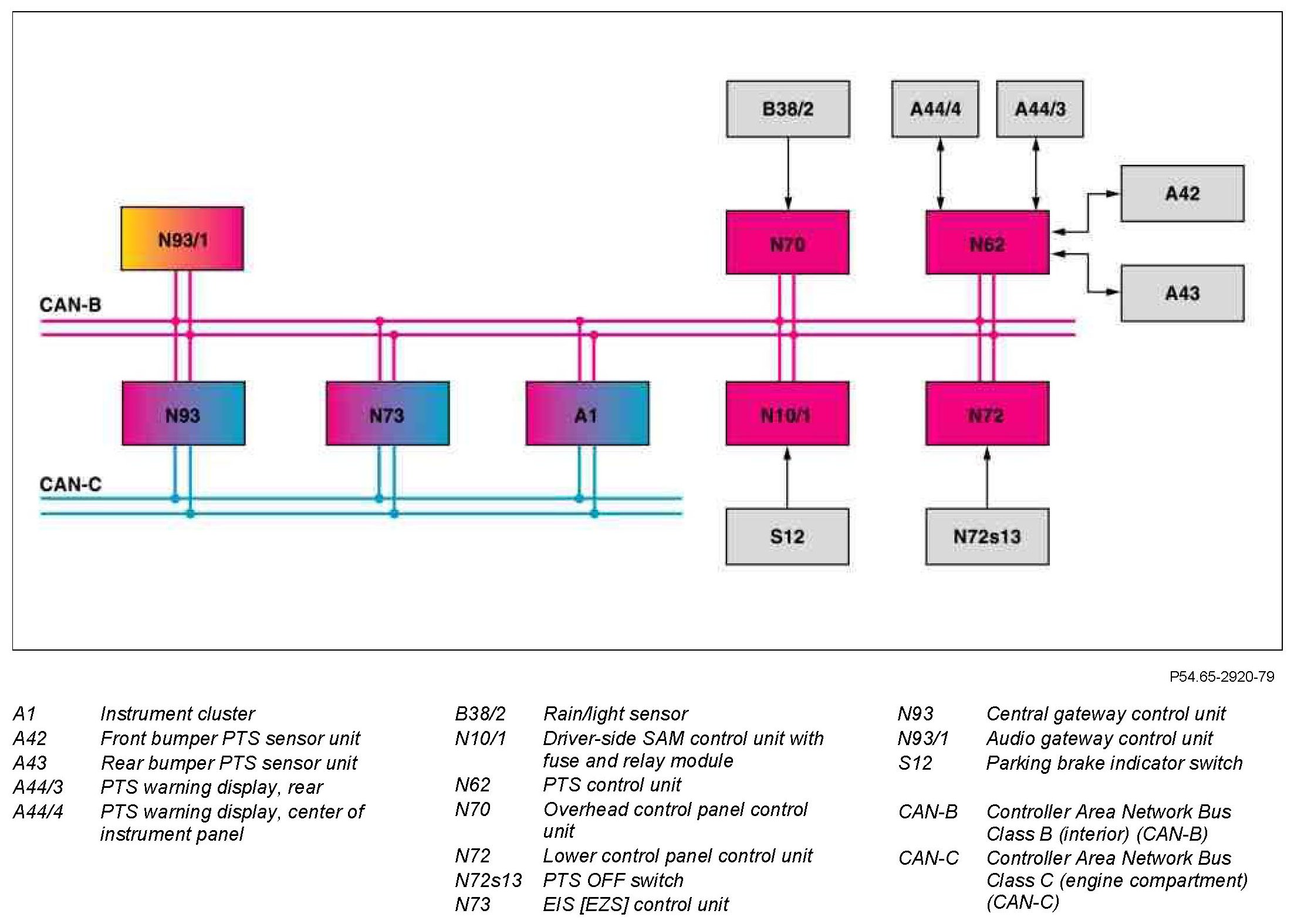

GF54.65-P-0001-01TX Parktronic System (PTS), Block Diagram



GF54.65-P-0001-01TX Parktronic System (PTS), Block Diagram
- with CODE (220) Parktronic system (PTS)


Component Identification:
