GF54.65-P-5020TX Warning Indicator, Component Description

GF54.65-P-5020TX Warning Indicator, Component Description
- with CODE (220) Parktronic system (PTS)

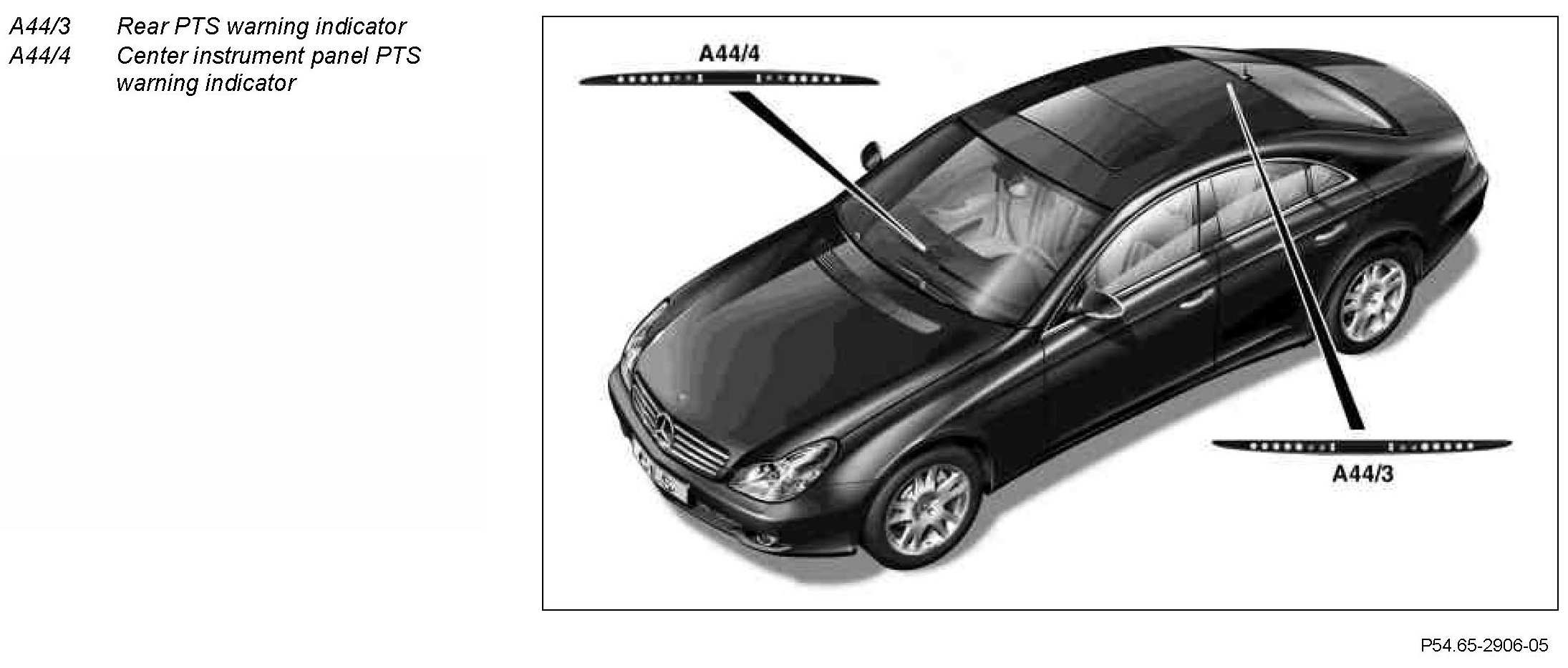

Component Identification:

Location
The rear warning indicator is located in the headliner; the center warning indicator is in the instrument panel.

Design
Each warning indicator incorporates 10 yellow and 4 red LEDs, two standby bars, one sound transmitter and a microprocessor. The microprocessor manages the bidirectional data exchange with the PTS control unit (N62).

Task
When an obstruction is detected in front of or behind the vehicle, the ranges are communicated to the driver visually at first by the lighting of the yellow LEDs, then by the lighting of the red LEDs and then also by the output of an acoustic warning.
After a successful self-test and up to a speed of 18 km/h, the standby bar lights up to inform the driver that the Parktronic system (PTS) is ready to operate.

If the Parktronic system (PTS) detects a fault during the self-test or while driving, this is signaled to the driver by the lighting of the two red LEDs.
