AR68.10-P-1230TX Remove/ Install Shock Absorber For Glove Compartment Lid



AR68.10-P-1230TX Remove/Install Shock Absorber For Glove Compartment Lid

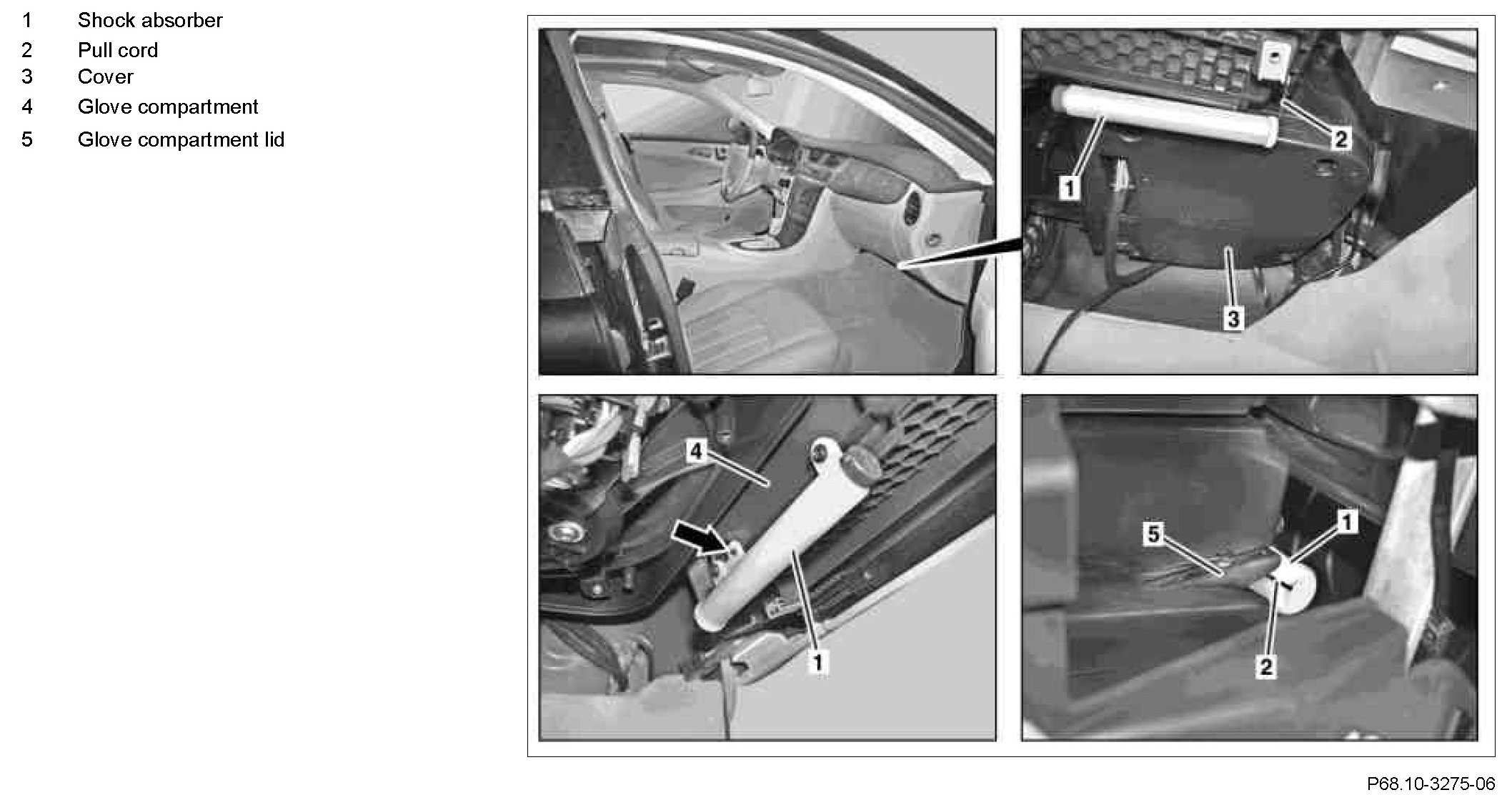

Component Identification:

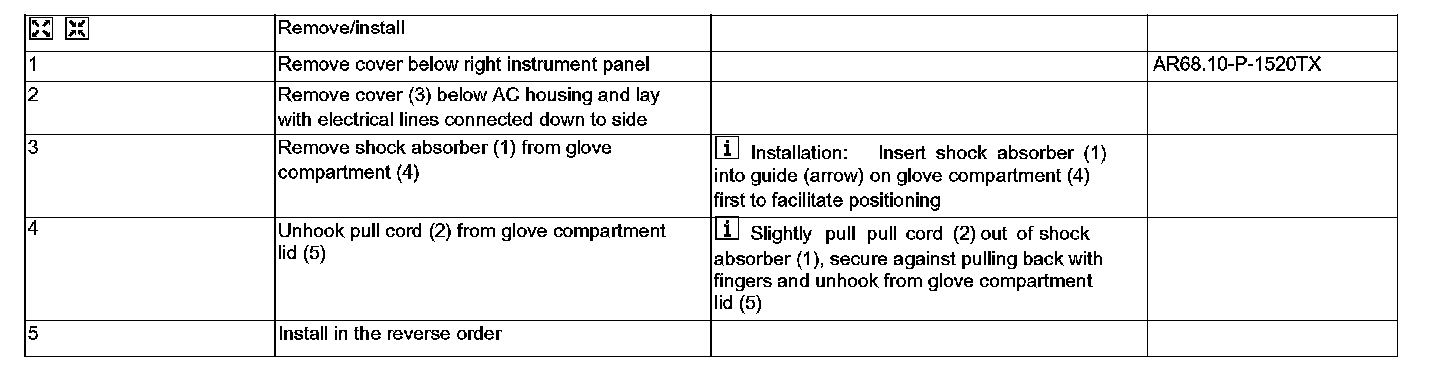

Steps 1 - 5:
