AR88.70-P-9080P Remove/Install Paneling on Mirror Triangle



AR88.70-P-9080P Remove/Install Paneling On Mirror Triangle

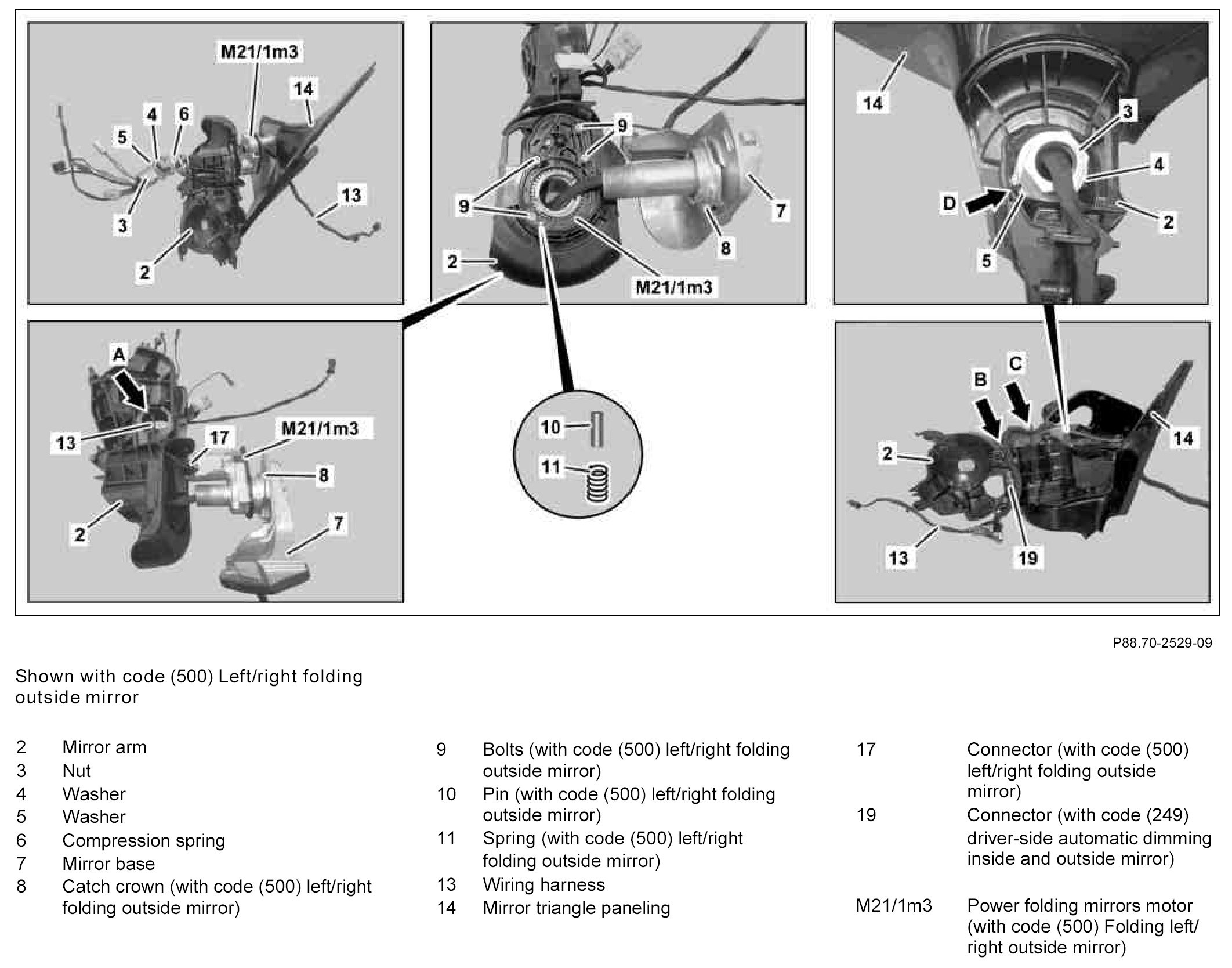

Component Identification:

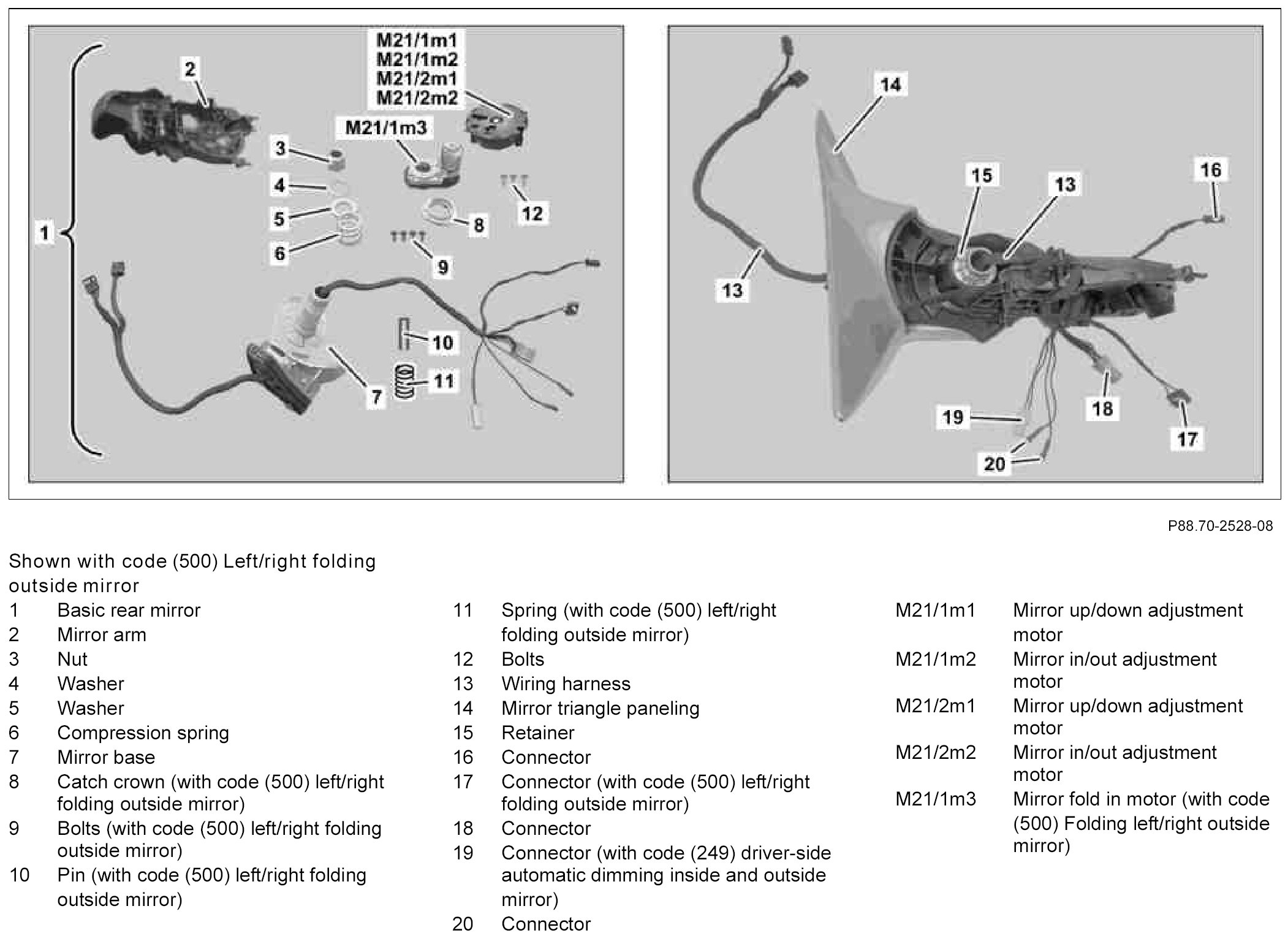

Component Identification:

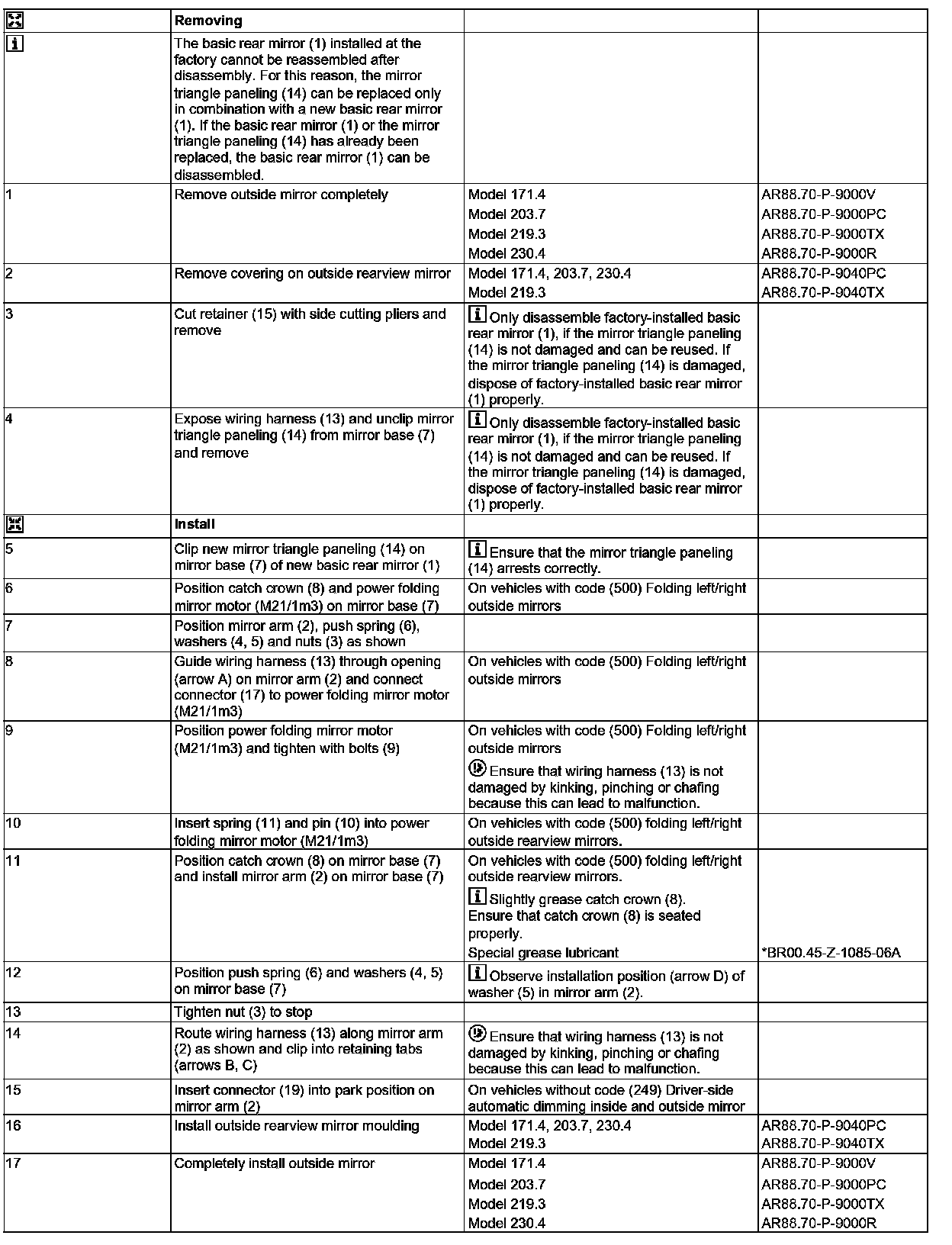

Steps 1 - 17:

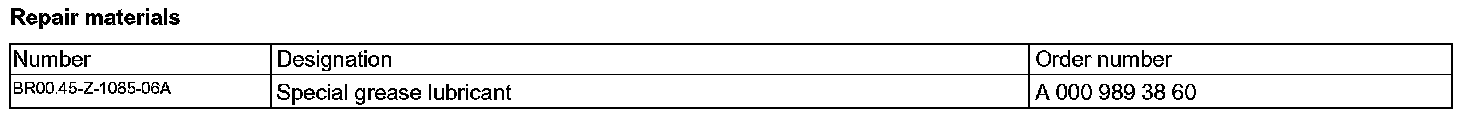

Repair Materials:
