GF91.29-P-0004TX Electric Seat Adjustment (ESA) Function

GF91.29-P-0004TX Electric Seat Adjustment (ESA) Function
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- with CODE (242) Electrically adjustable front passenger seat with memory

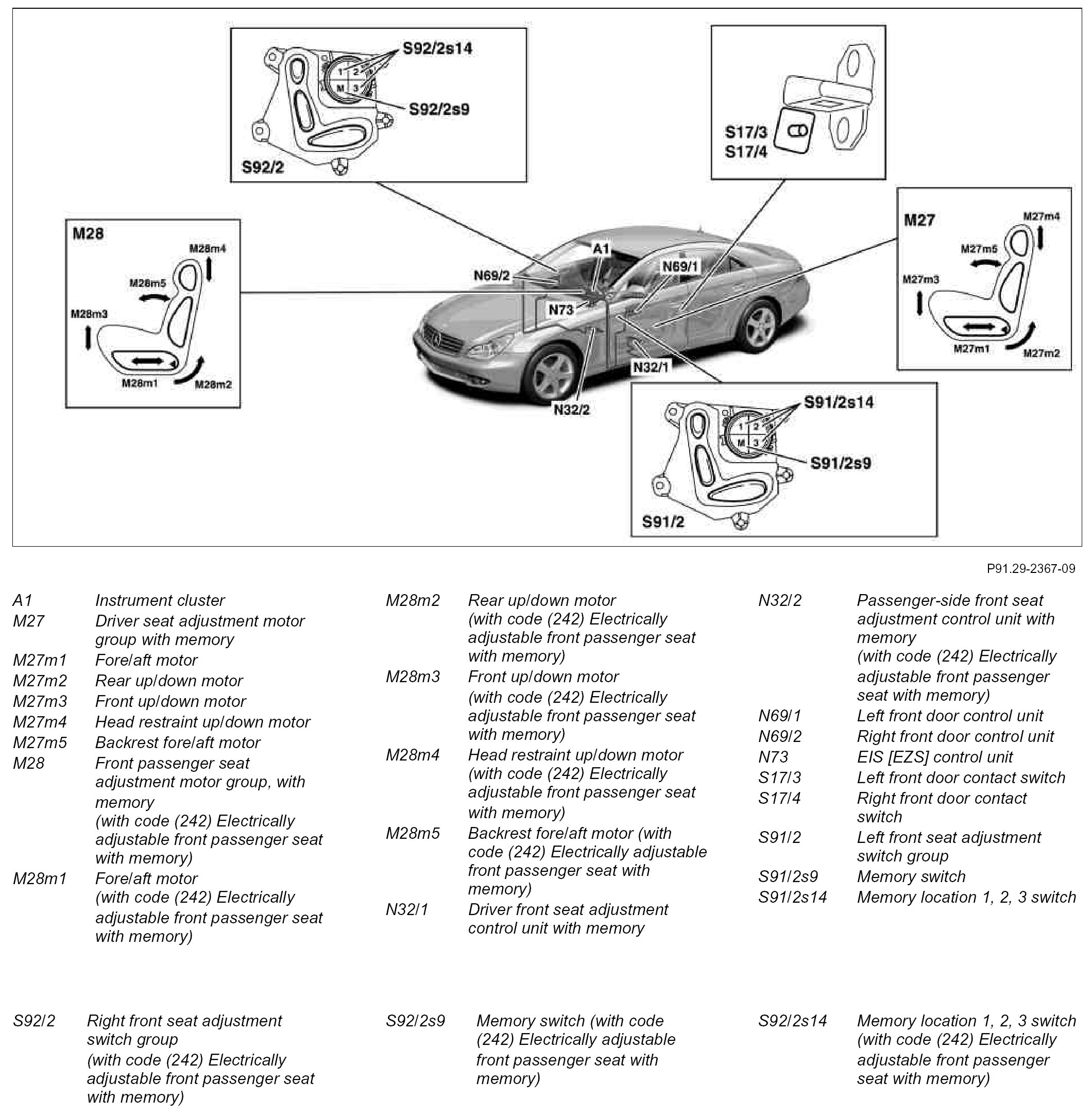

Component Identification:

Driver seat adjustment
The left front seat adjustment switch group can be used to move the driver seat to the desired position.

Front passenger seat adjustment
The right front seat adjustment switch group can be used to move the front passenger seat to the desired position on vehicles with code (242) Electrically adjustable front passenger seat with memory.

Save seat positions
The memory location switch and the memory switch can be used to store the driver seat positions.

Key-specific storage (up to 30.5.05) can be activated or deactivated in the instrument cluster.

For vehicles with code (242) Electrically adjustable front passenger seat with memory, the position of the front passenger seat can also be stored.

The front passenger seat positions are stored using the memory location switch and the memory switch.

The memory function can also be used to store the outside mirror and steering column position.

To ensure that the front passenger seat does not bump against a folded down rear seat backrest when it is moved back, vehicles with code (242) Electrically adjustable front passenger seat with memory are equipped with a "collision avoidance with rear seat" function.
