GF91.30-P-5208TX Seat Ventilation Blower Regulator Component Description

GF91.30-P-5208TX Seat Ventilation Blower Regulator Component Description
- with CODE (401) Front luxury seat, including heated seat and seat ventilation

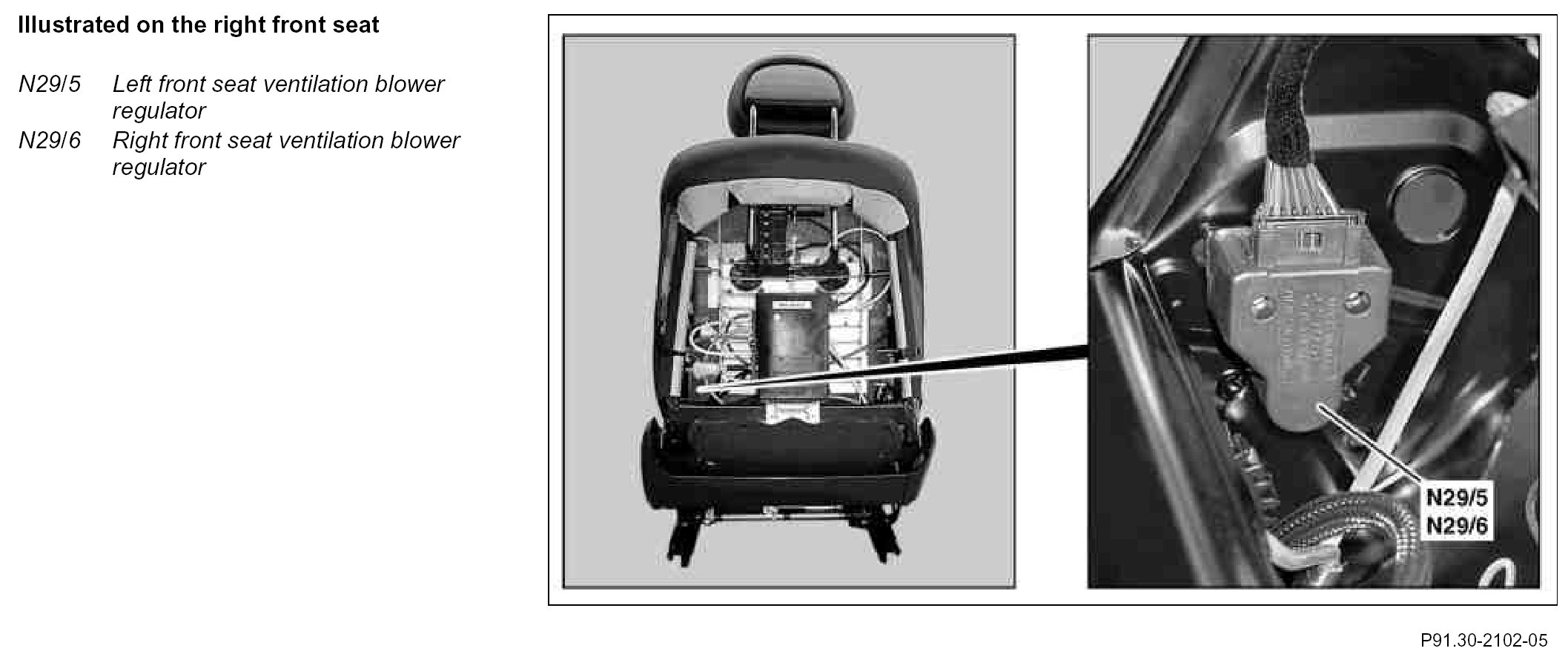

Component Identification:

Task
The front seat ventilation blower regulator controls the speed of the ventilation motors depending on the control voltage of the HS [SIH] and seat ventilation control unit (N25/7).

Design
The left front seat ventilation blower regulator and the right front seat ventilation blower regulator consist of voltage amplification electronics in a plastic housing with eight connections.

Function
The electronics integrated in the left and right front seat ventilation blower regulator control the voltage supply to the seat ventilation motors in accordance with the HS [SIH] and seat ventilation control unit actuation voltage.
