AR91.12-P-1746TX Remove/Install Ski Bag Housing



AR91.12-P-1746TX Remove/Install Ski Bag Housing
- with CODE (282) Ski bag (through-loading feature)

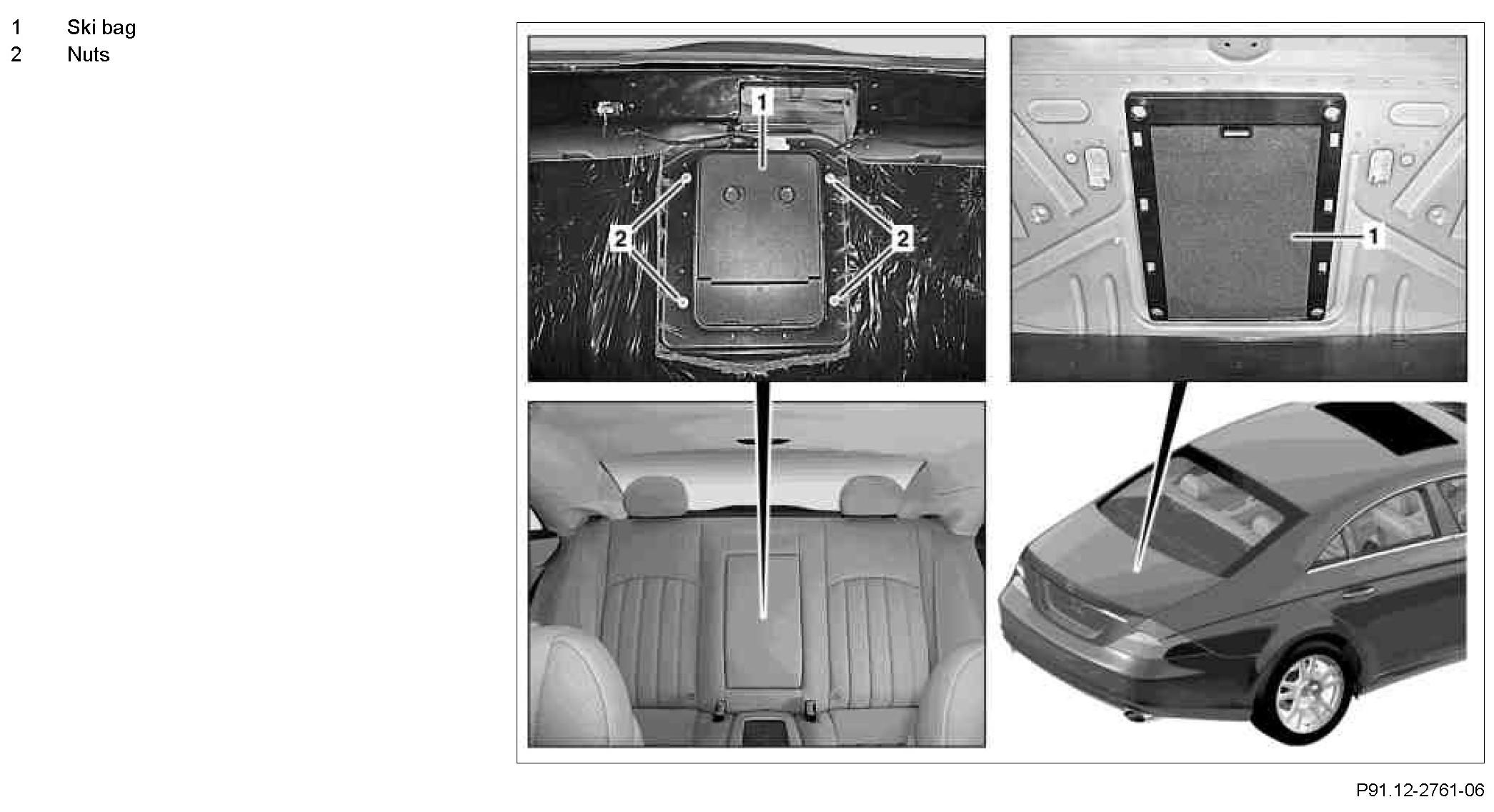

Component Identification:

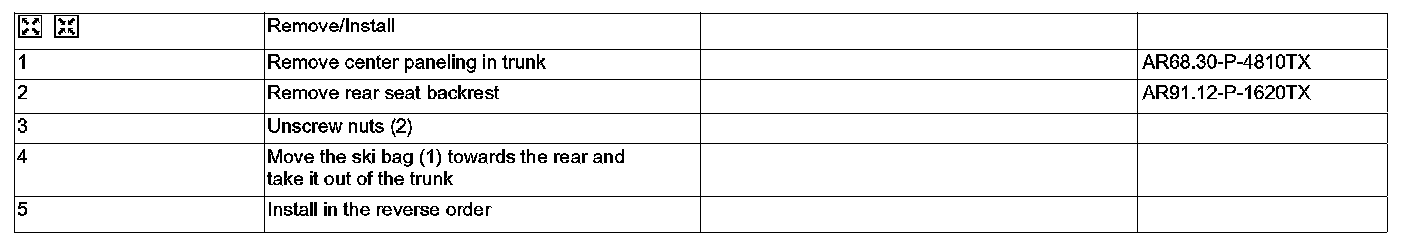

Steps 1 - 5:
