AR42.20-P-0520-01TX Preloading Automatic Cable Slack Adjuster

AR42.20-P-0520-01TX Preloading automatic cable slack adjuster

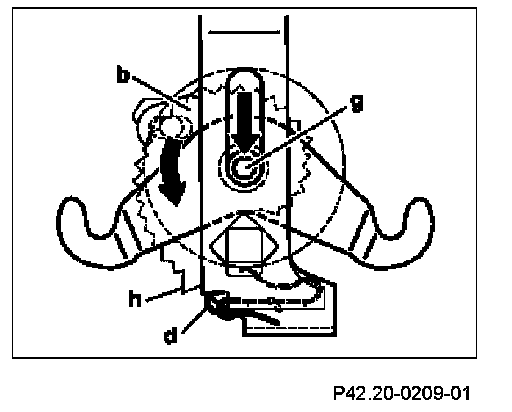

Component Identification:

1 Rotate detent eccentric bolt (g) counterclockwise by approx. half a turn using Allen wrench while simultaneously pushing toward rear into slot until raised section (h) of spring-loaded detent eccentric (b) engages in holddown clip (d).
