GF83.70-P-4201TX STH Radio Remote Control Receiver, Component Description

GF83.70-P-4201TX STH Radio Remote Control Receiver, Component Description
- with CODE (228) Stationary heater

Component Identification:

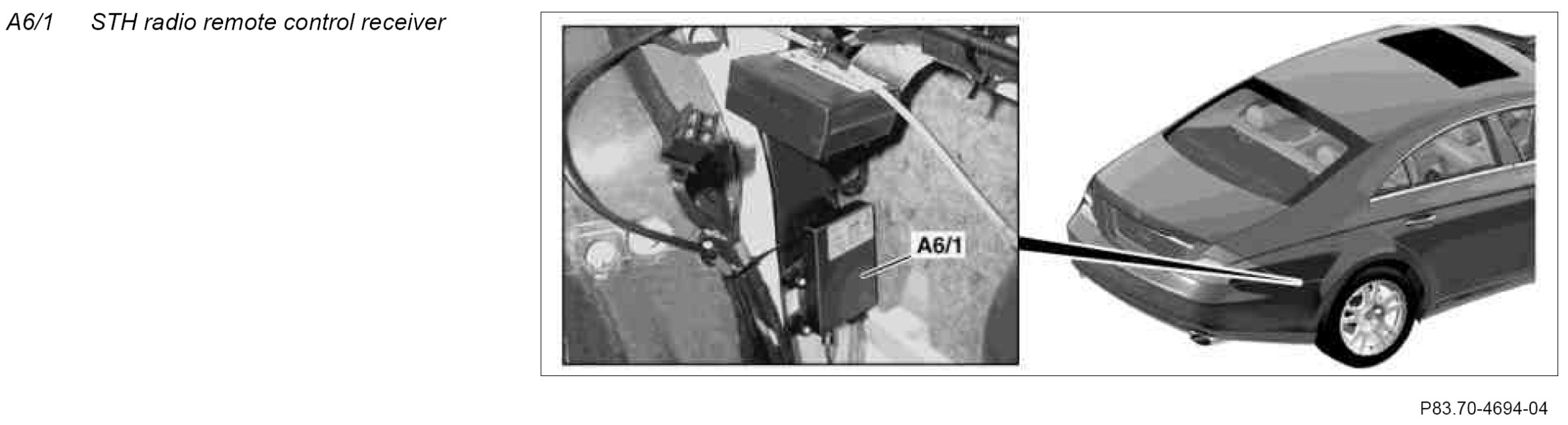

Location
The receiver is located in the right side of the trunk, next to the wheelhouse.

Task
The receiver evaluates the signals from the STH radio remote control transmitter (A8/3) and relays them to the STH control unit (A6n1).

When a valid signal is received, a reply signal is sent to the STH radio remote control transmitter.
