AR83.25-P-1402TX Remove/Install Water Collector
AR83.25-P-1402TX Remove/Install Water Collector
AR83.25-P-1402TX Remove/Install Water Collector

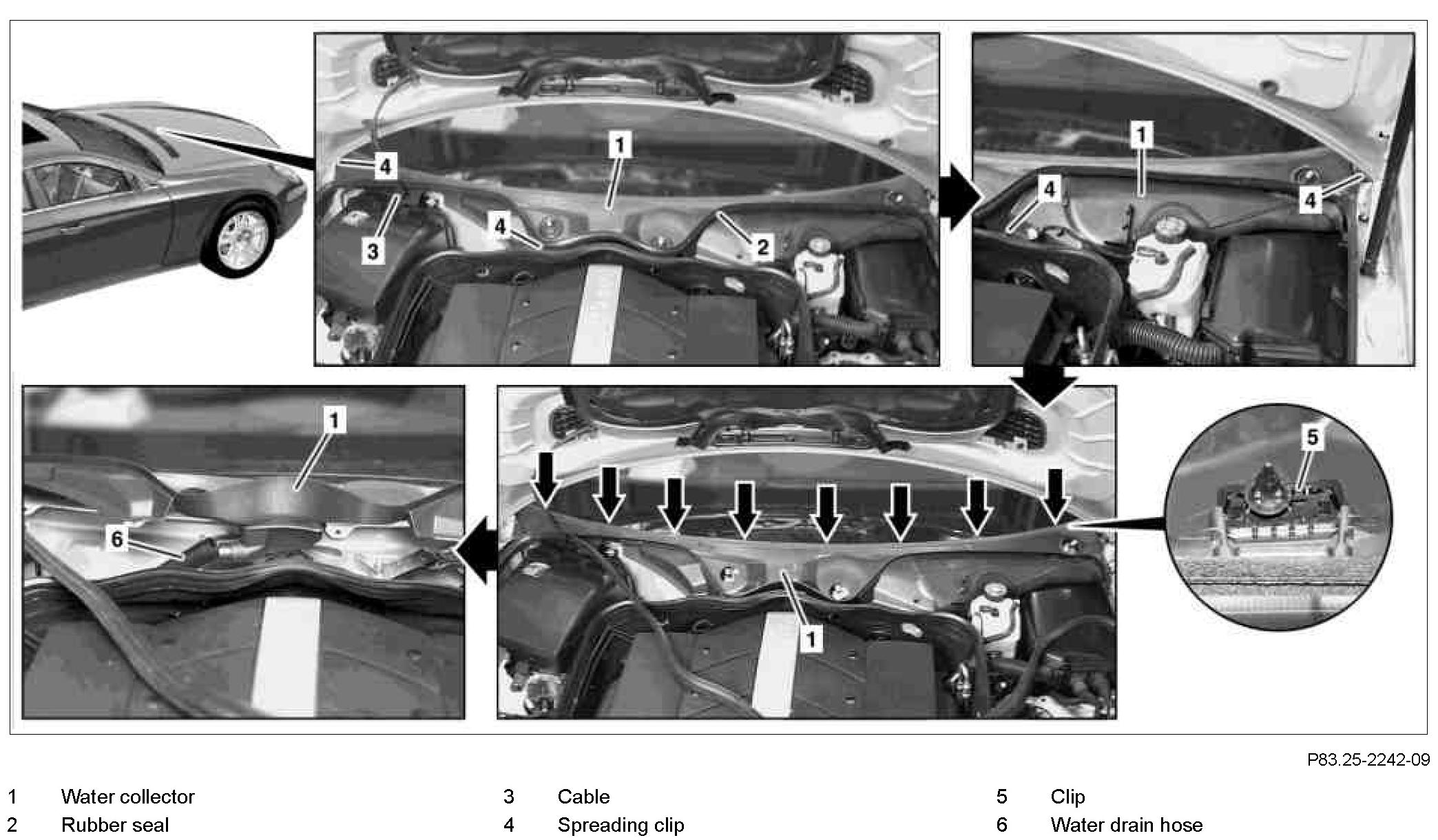

Component Identification:

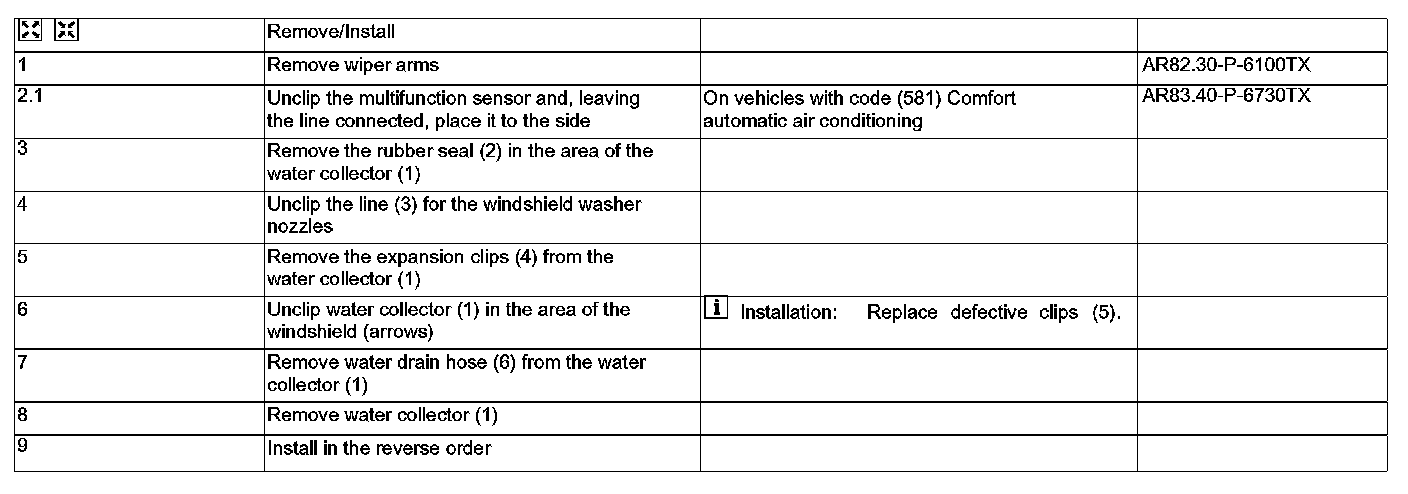

Steps 1 - 9:
