AR68.10-P-1500TX Remove/Install Cover Below Instrument Panel (Left)
AR68.10-P-1500TX Remove/Install Cover Below Instrument Panel (Left)
AR68.10-P-1500TX Remove/Install Cover Below Instrument Panel (left)

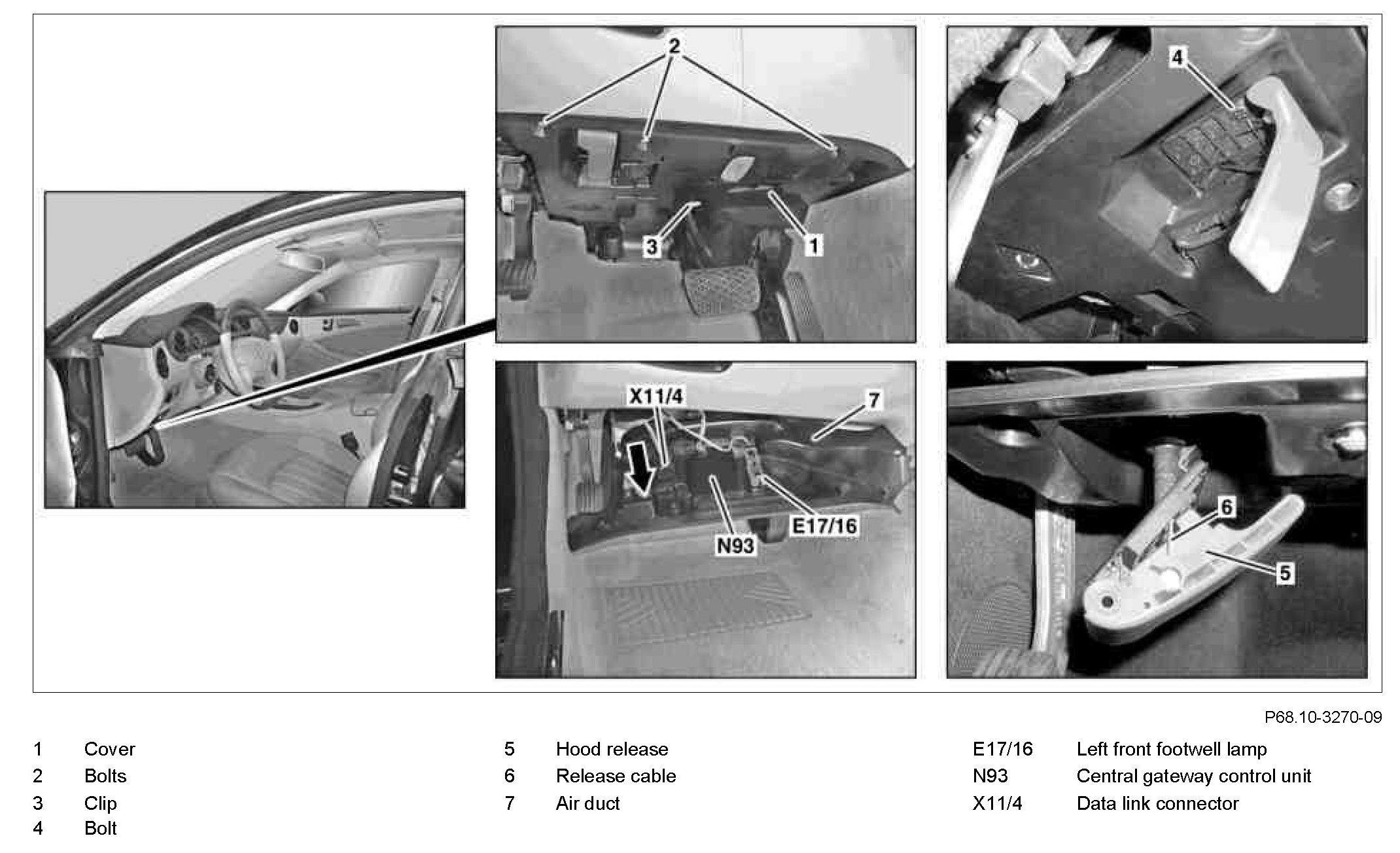

Component Identification:

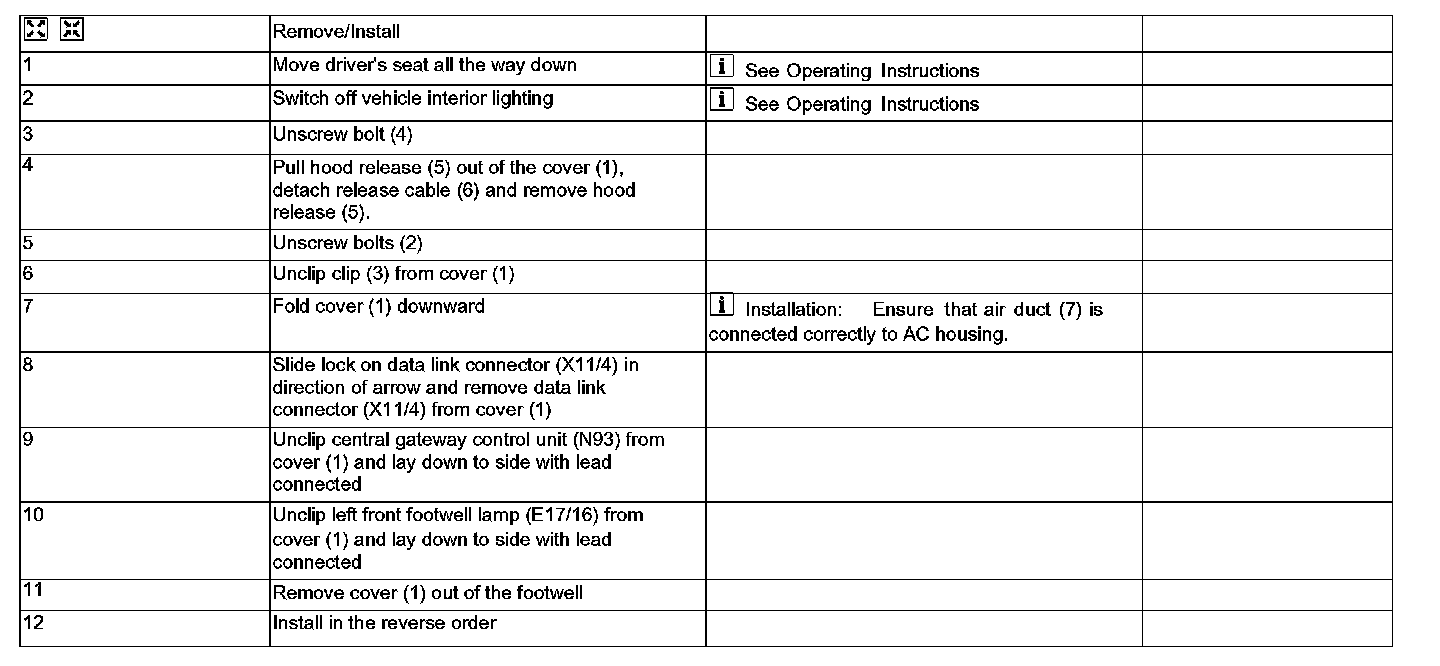

Steps 1 - 12:
