GF40.15-P-0002-04TX Tire Pressure Loss Warning (RDW) Mercedes-Benz Driver Information Service

GF40.15-P-0002-04TX Tire pressure loss warning (RDW) Mercedes-Benz Driver Information Service
- with CODE (477) Tire pressure loss warning

Component Identification:

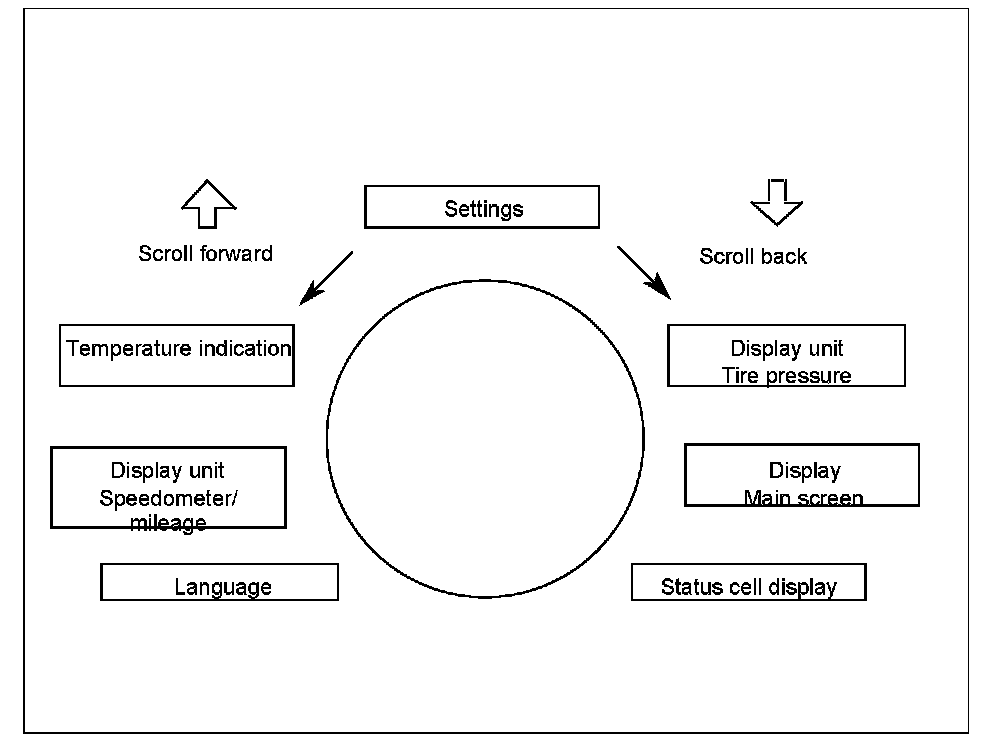

Overview and sequence of settings for the menu item "Station wagon"

General information

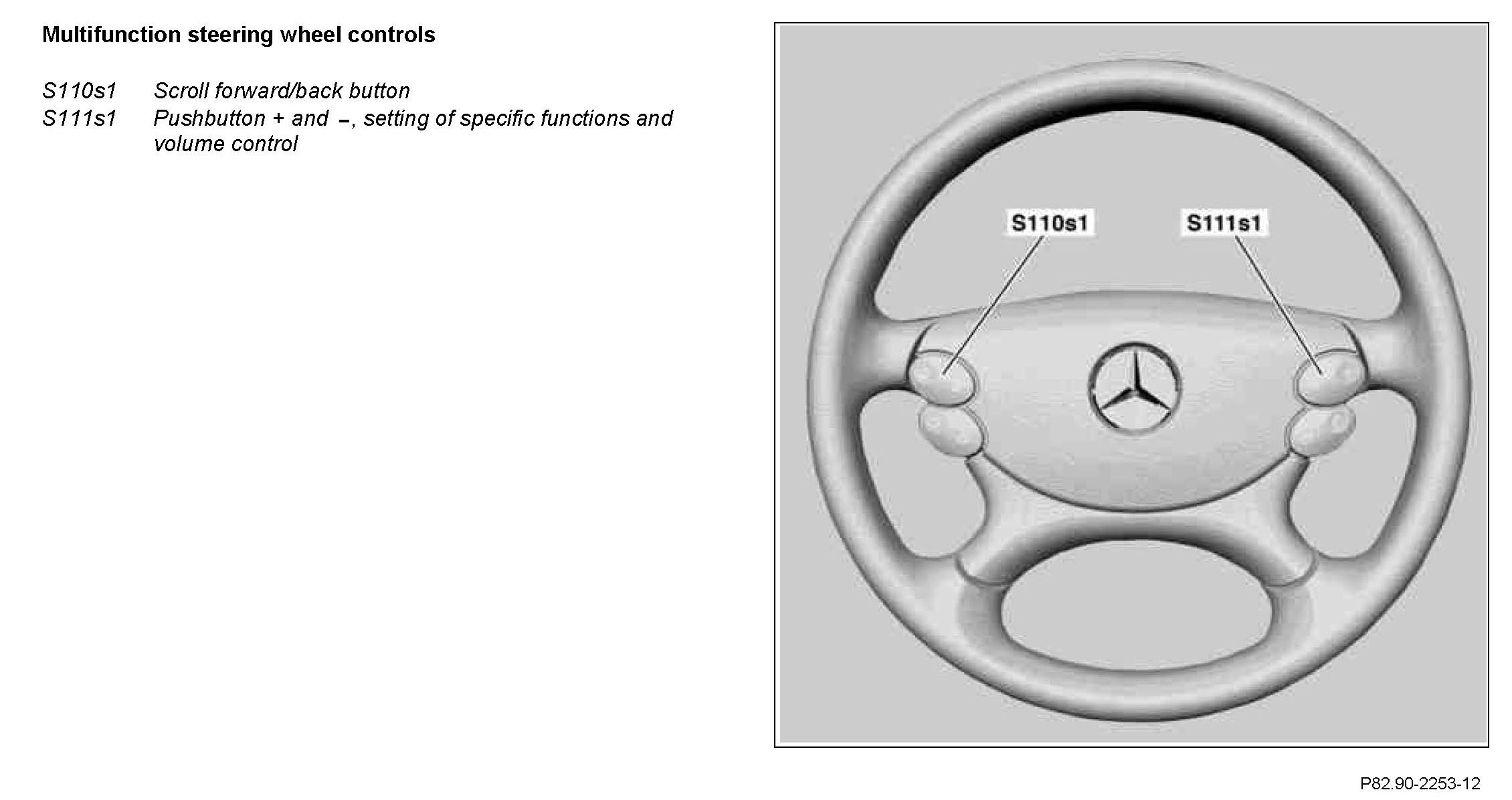

The following buttons are employed to control the multifunction display (A1p13):
^ Scroll forward/back button
^ System select push-button (S110s3)
^ Push-button + and -, specific function setting and volume control
^ Accept/terminate phone call button (S111s3)

In the multifunction display, these button can be used to access displays from various systems and to scroll within individual systems.

To activate tire pressure loss warning (RDW):
^ Transmitter key (A8/1) in position "circuit 15 ON" or while driving.
^ Continue to press the System selection button until the basic display appears in the multifunction display (total and trip odometer).
^ Press the scroll forward and back button until "TIRE PRESSURE MONITORING REACTIVATION WITH +" appears.
