GF82.10-P-2114TY Xenon Headlamp Control Unit, Component Description

GF82.10-P-2114TY Xenon Headlamp Control Unit, Component Description
- with CODE (615) Bi-xenon headlamp unit with integrated cornering lamps

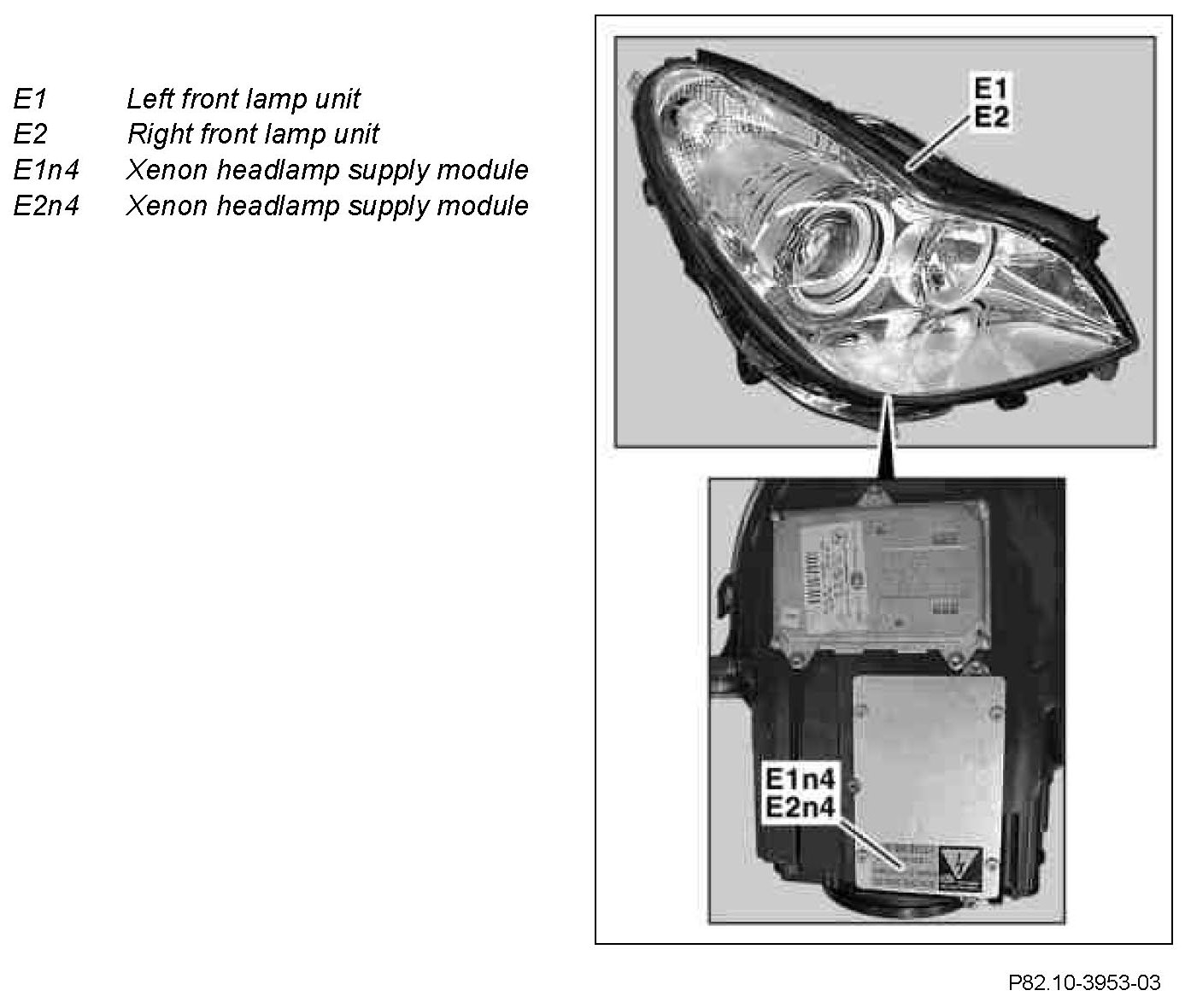

Component Identification:

Location
The xenon headlamp supply modules are fastened to the underside of the left front lamp unit and the right front lamp unit.

Task
The xenon headlamp supply modules activate the xenon headlamp ignition module (E1n2) on the left and the xenon headlamp ignition module (E2n2) on the right via the control voltage. Both control the power consumption of the xenon lamps.
