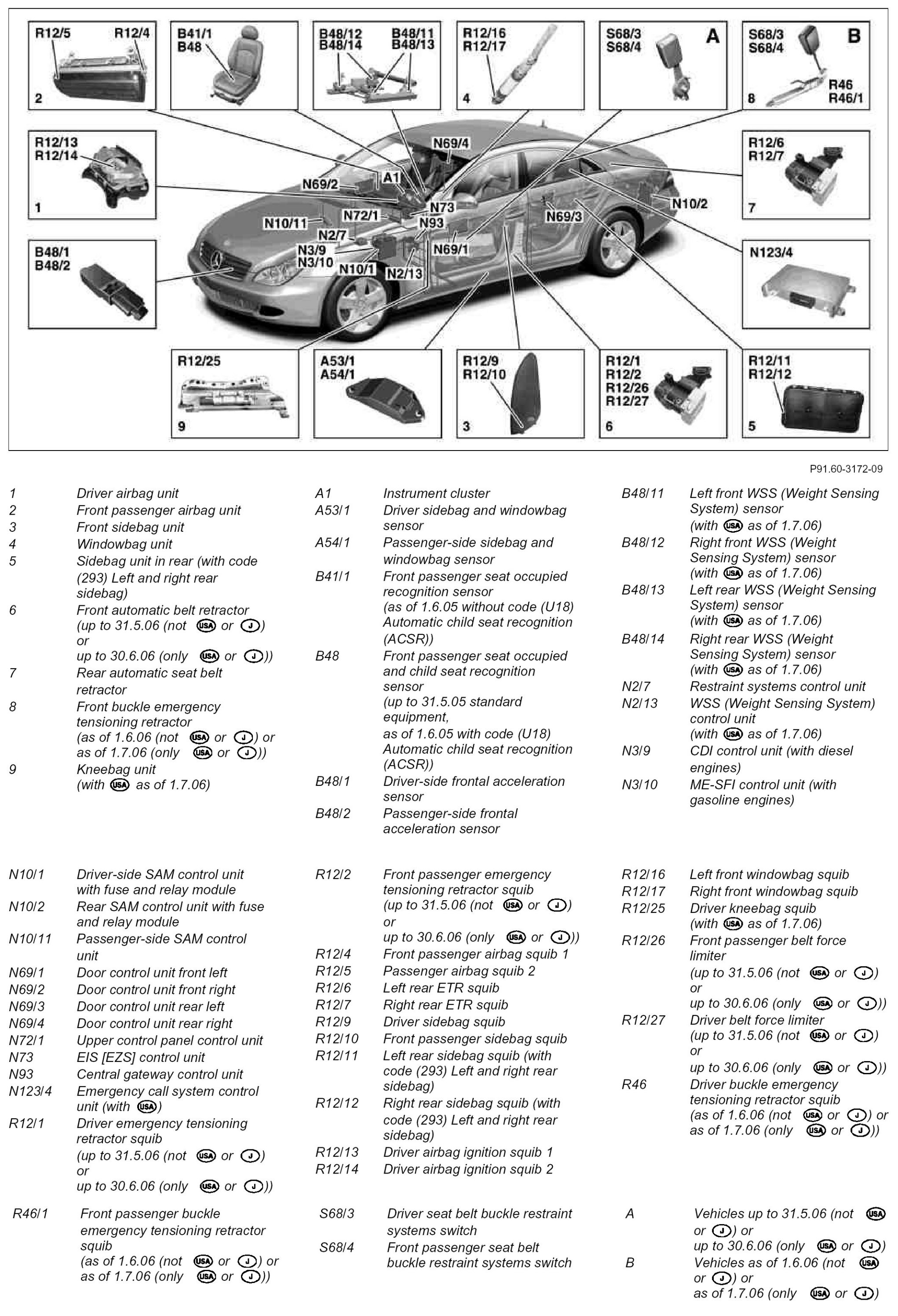

GF91.60-P-0002-01TX Supplemental Restraint System (SRS), Location of Components



GF91.60-P-0002-01TX Supplemental Restraint System (SRS), Location Of Components


Component Identification:
