AR54.10-P-1030TX Check Quiescent Current Consumption
AR54.10-P-1030TX Check Quiescent Current Consumption
AR54.10-P-1030TX Check Quiescent Current Consumption
Component Identification:

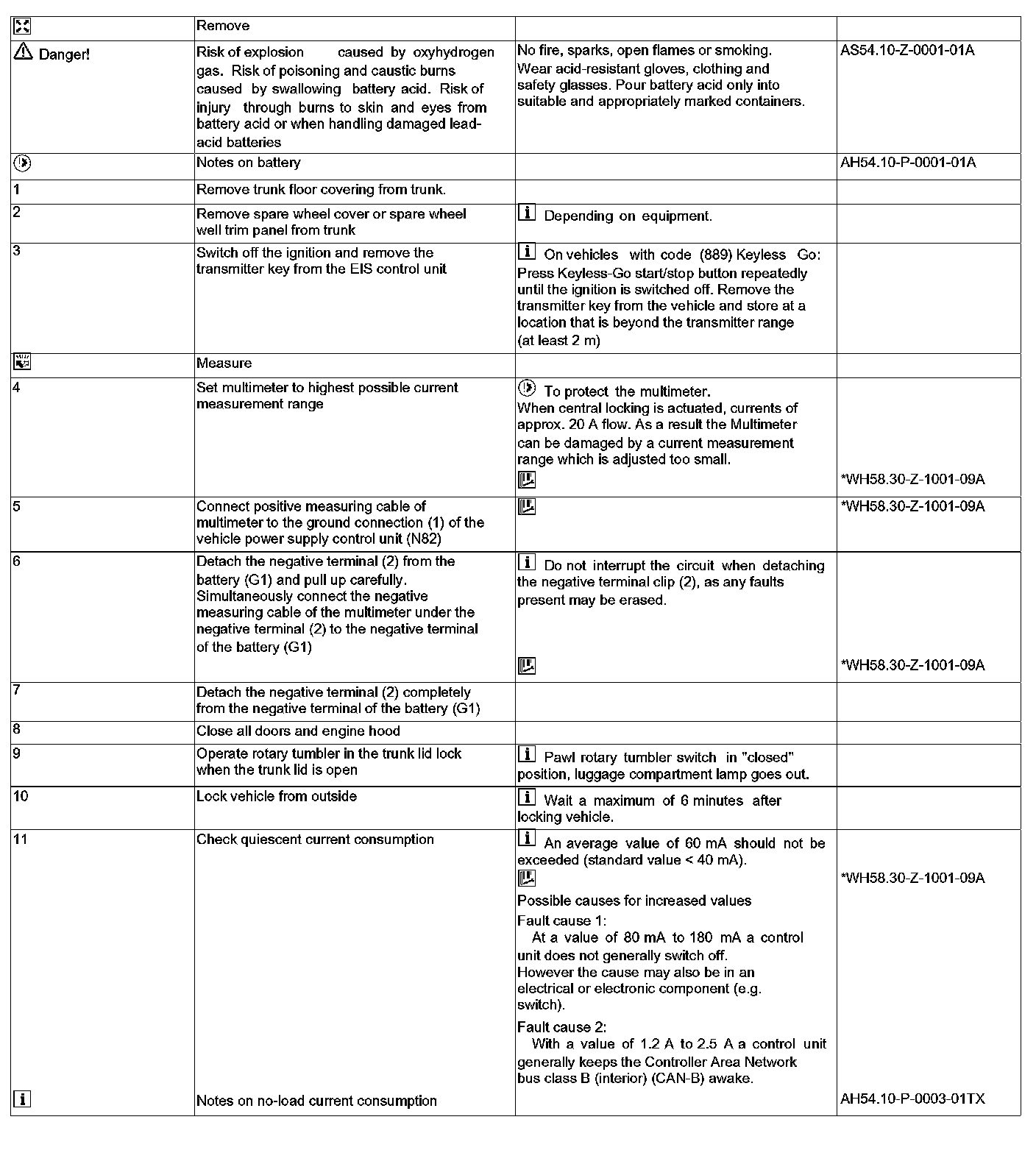

Steps 1 - 11:
Steps 12.1 - 16:

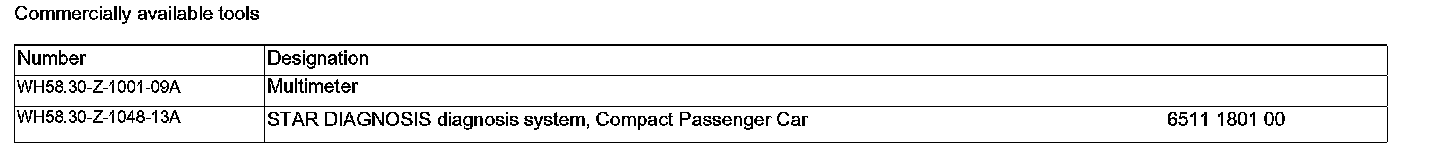

Commercially Available Tools:
