AR03.30-P-5000TMG Remove/Install Retaining Lock For Crankshaft/Ring Gear



AR03.30-P-5000TMG Remove/install retaining lock for crankshaft/ring gear
- except CODE (P98) Black Series [Model 209.377]

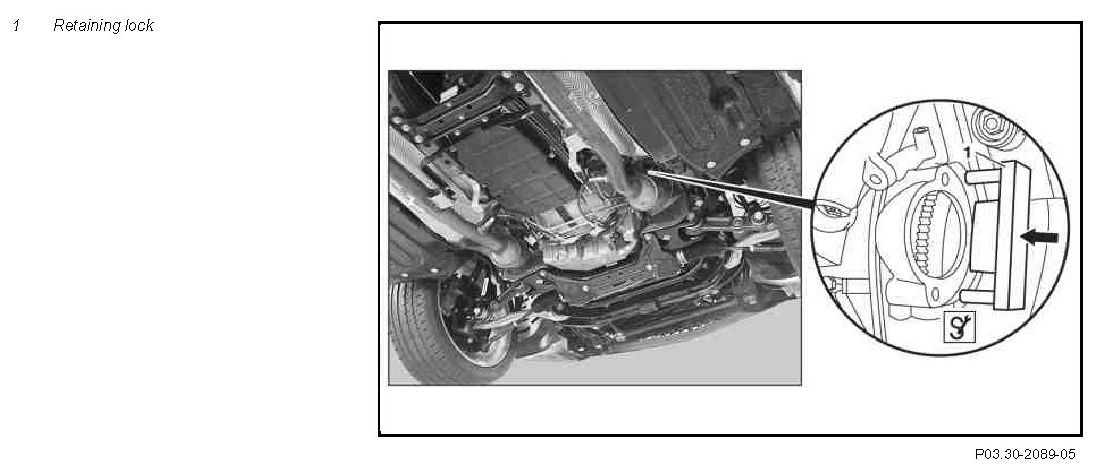

Component Identification:

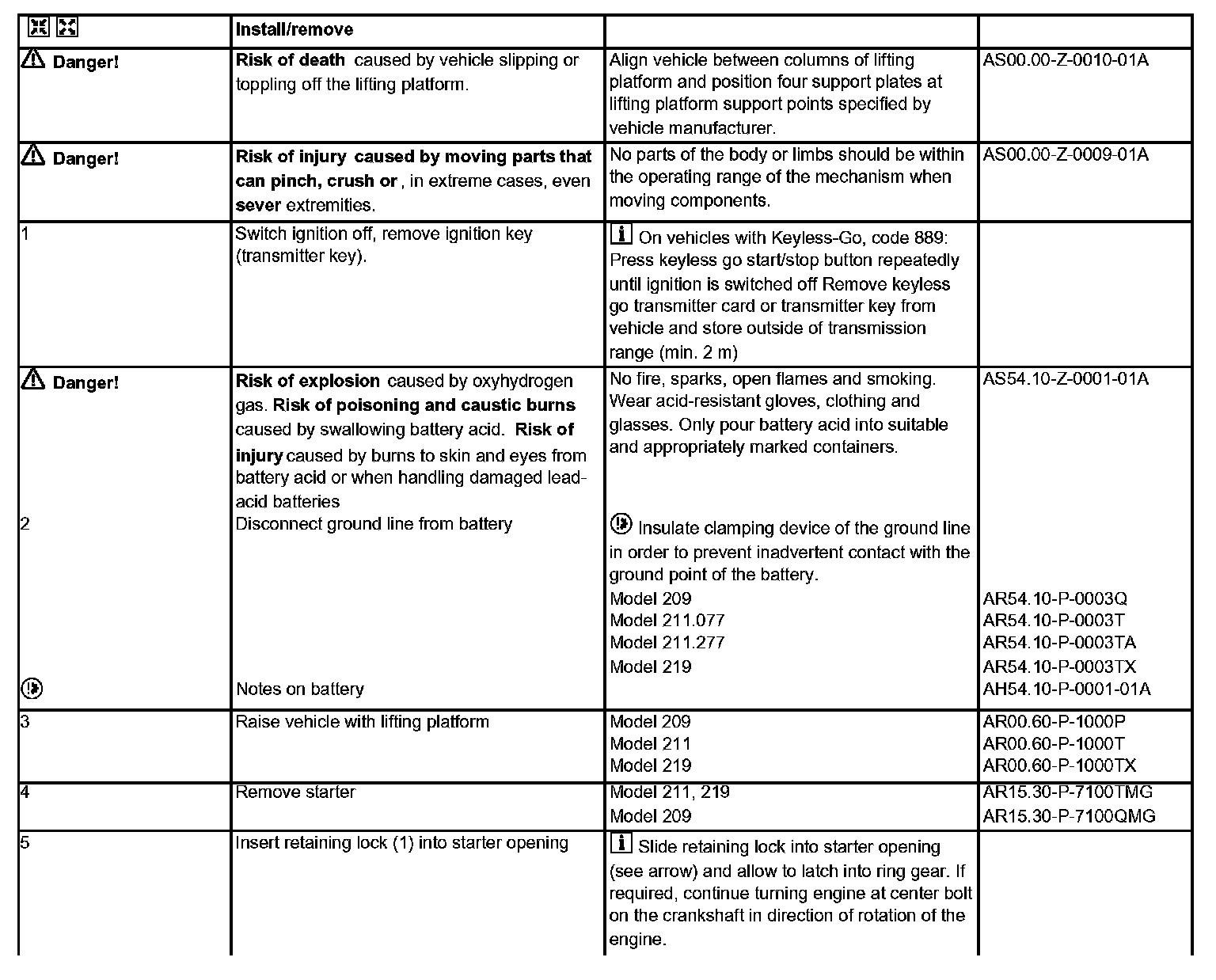

Remove/install Steps 1-5:

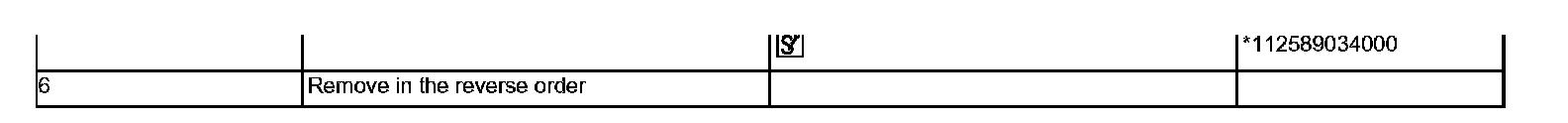

Remove/install Steps 5 (Continued)-6:

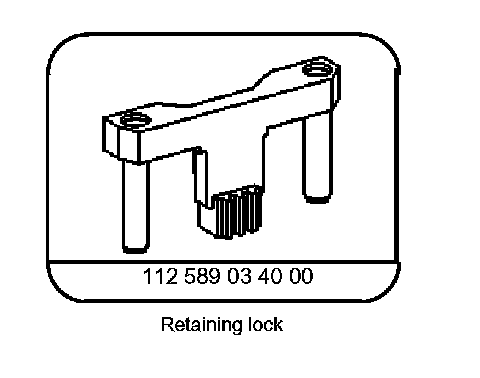

Special Tools:
