Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
CLS 63 AMG (219.377) V8-6.3L (156.983)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Arm
>>
Adjustments
>>
AR82.30-P-6000TX Check Wiper Arms and Adjust
AR82.30-P-6000TX Check Wiper Arms and Adjust
AR82.30-P-6000TX Check
Wiper Arms
And Adjust

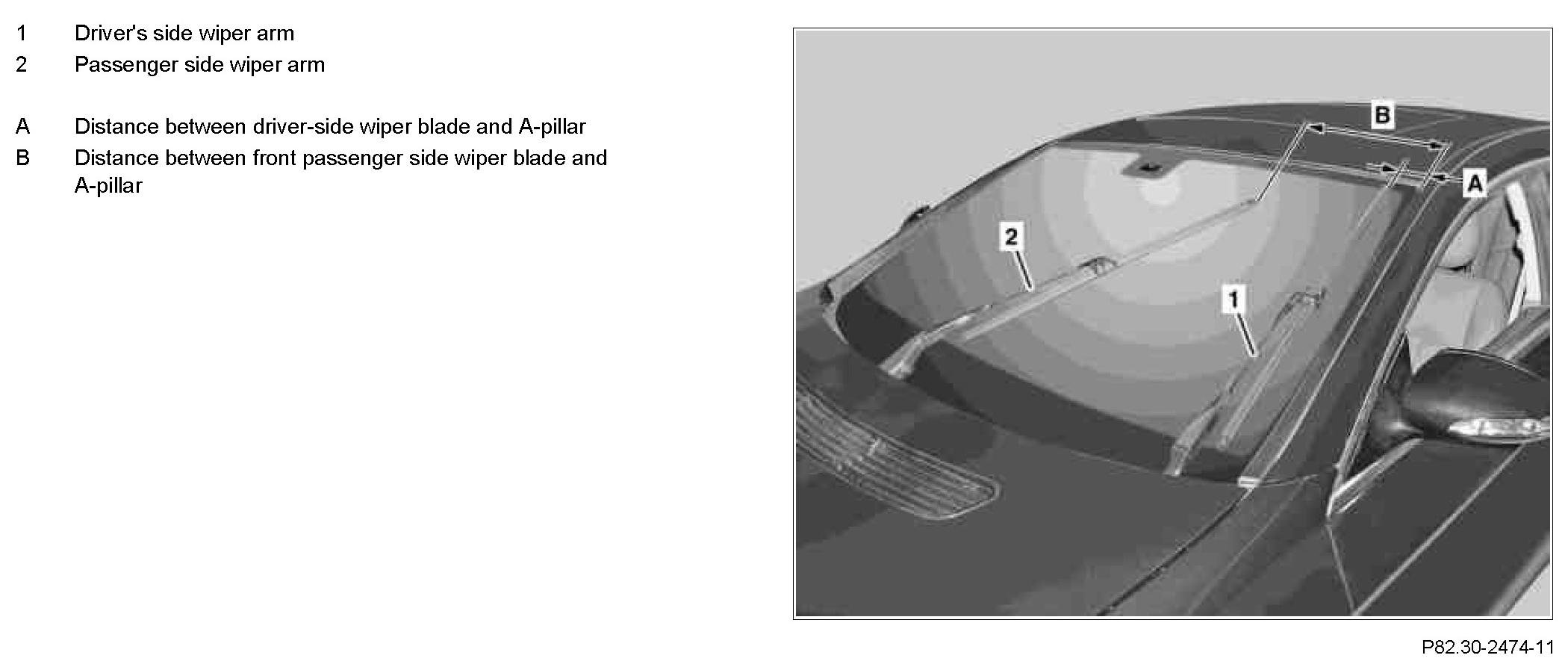

Component Identification:

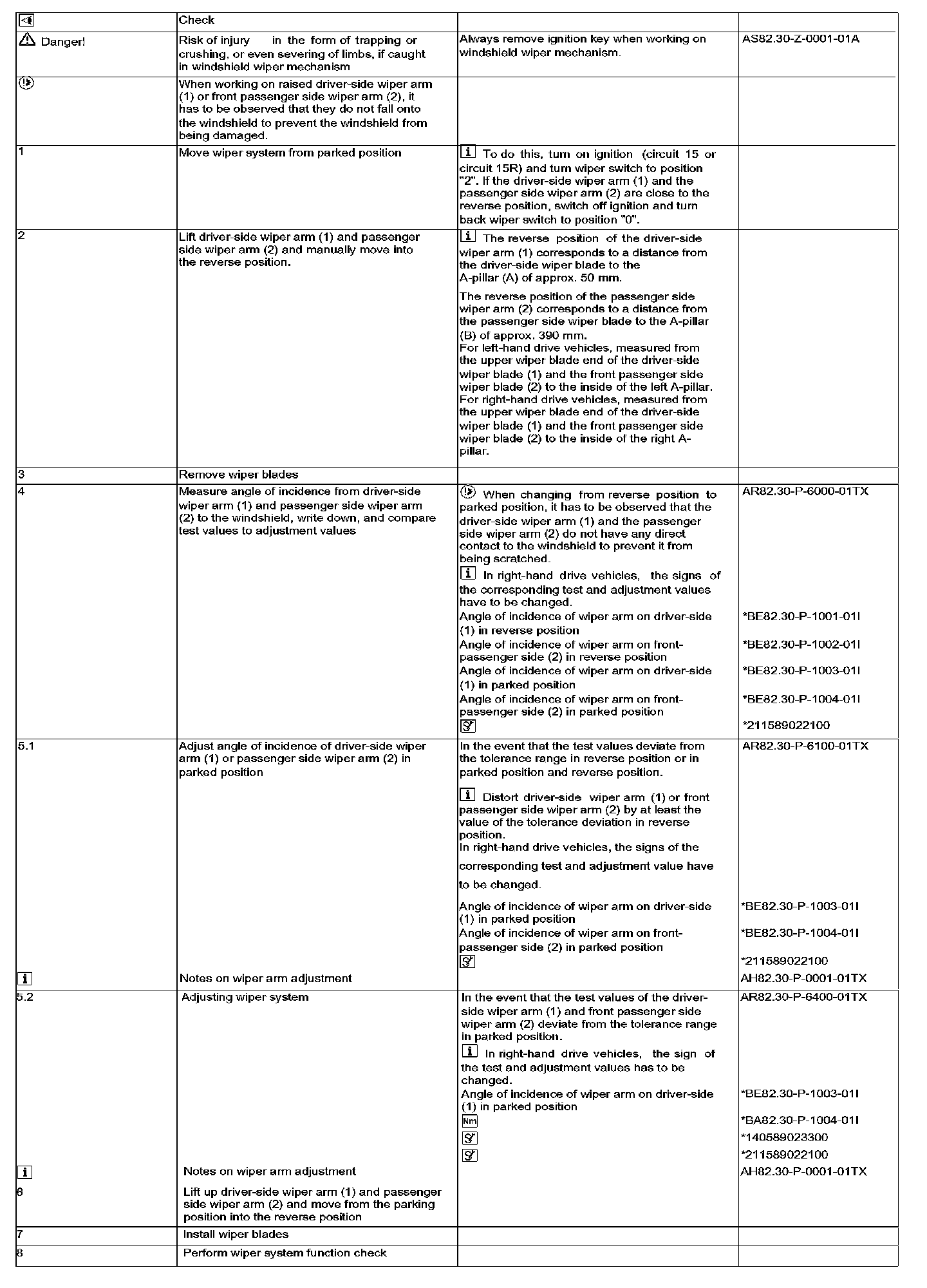

Steps 1 - 8:

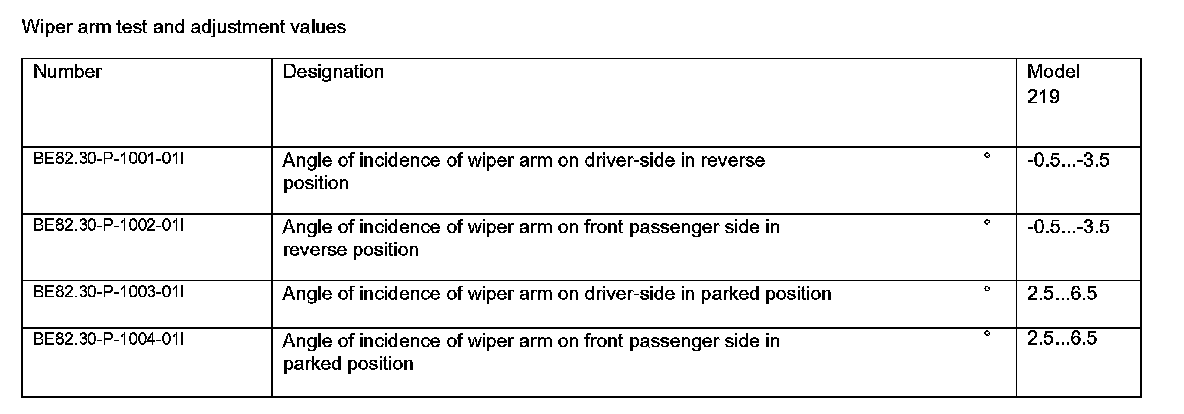

Wiper Arm Test And Adjustment Values:

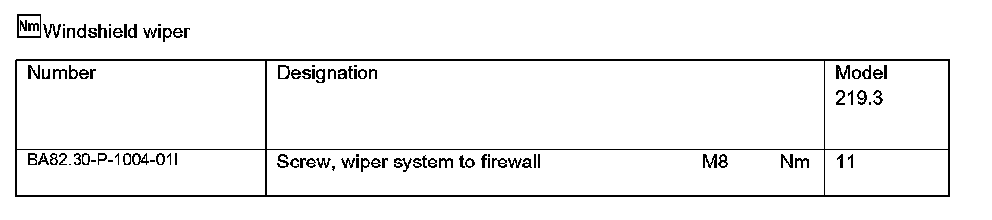

Windshield Wiper:

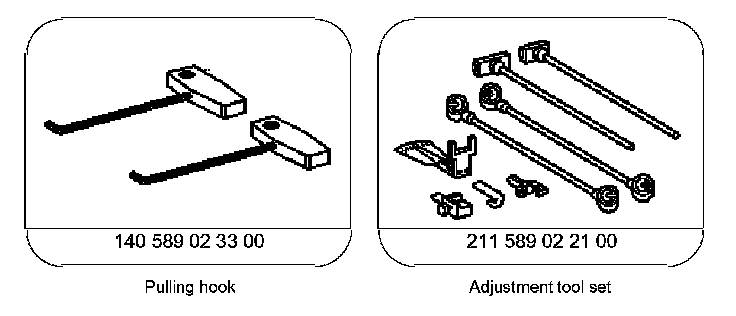

Special Tools:
