Variable Induction Position Sensor: Service and Repair
AR09.20-P-1995EW Remove/Install The Tumble Flap Position Sensor At Intake Manifold

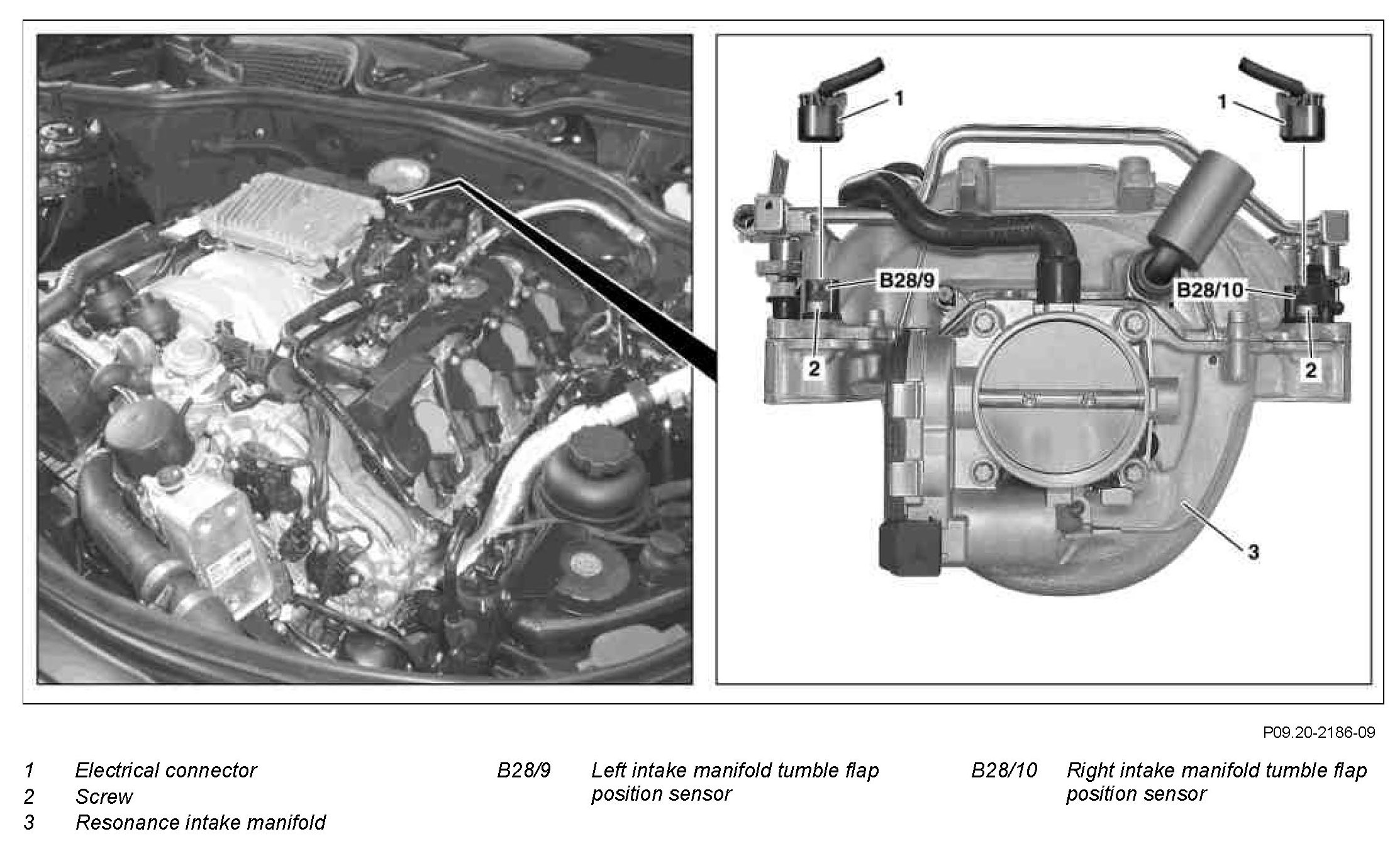

Component Identification:

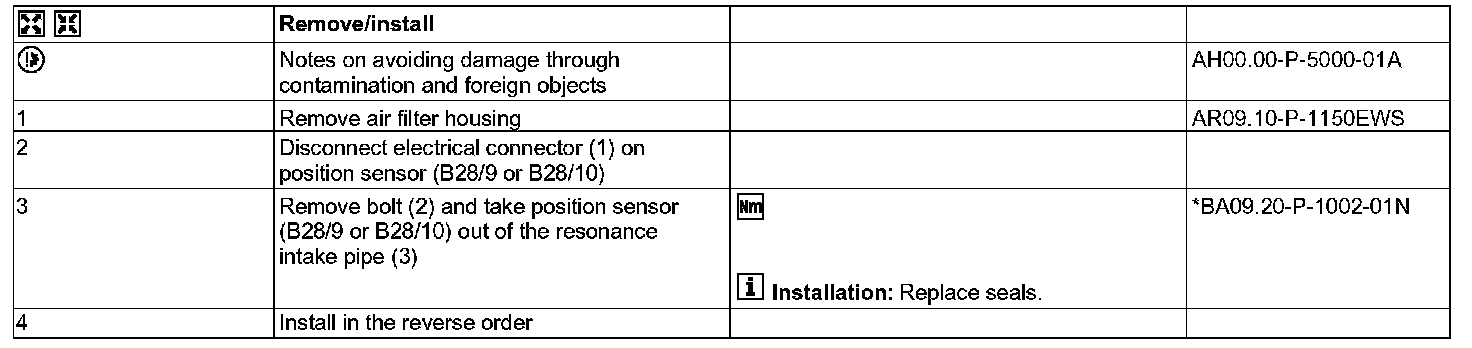

Steps 1 - 4:

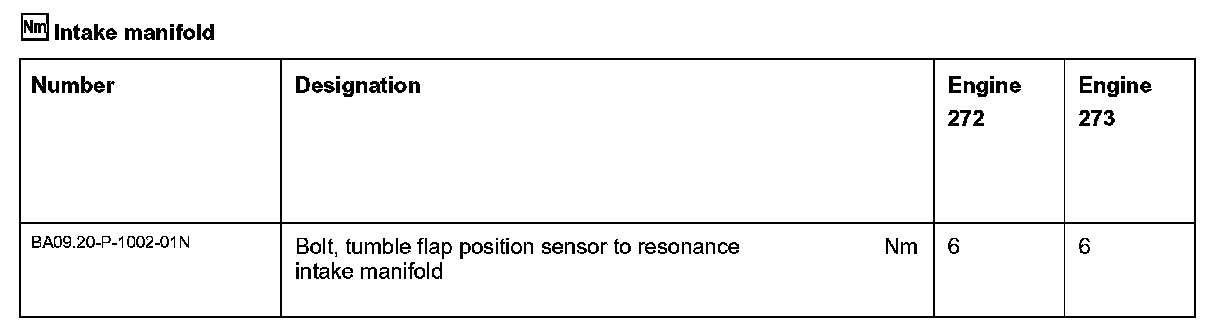

Intake Manifold:
AR09.20-P-1995EW Remove/Install The Tumble Flap Position Sensor At Intake Manifold
