Condenser HVAC: Service and Repair
AR83.30-P-6540CW Install/Remove Condenser

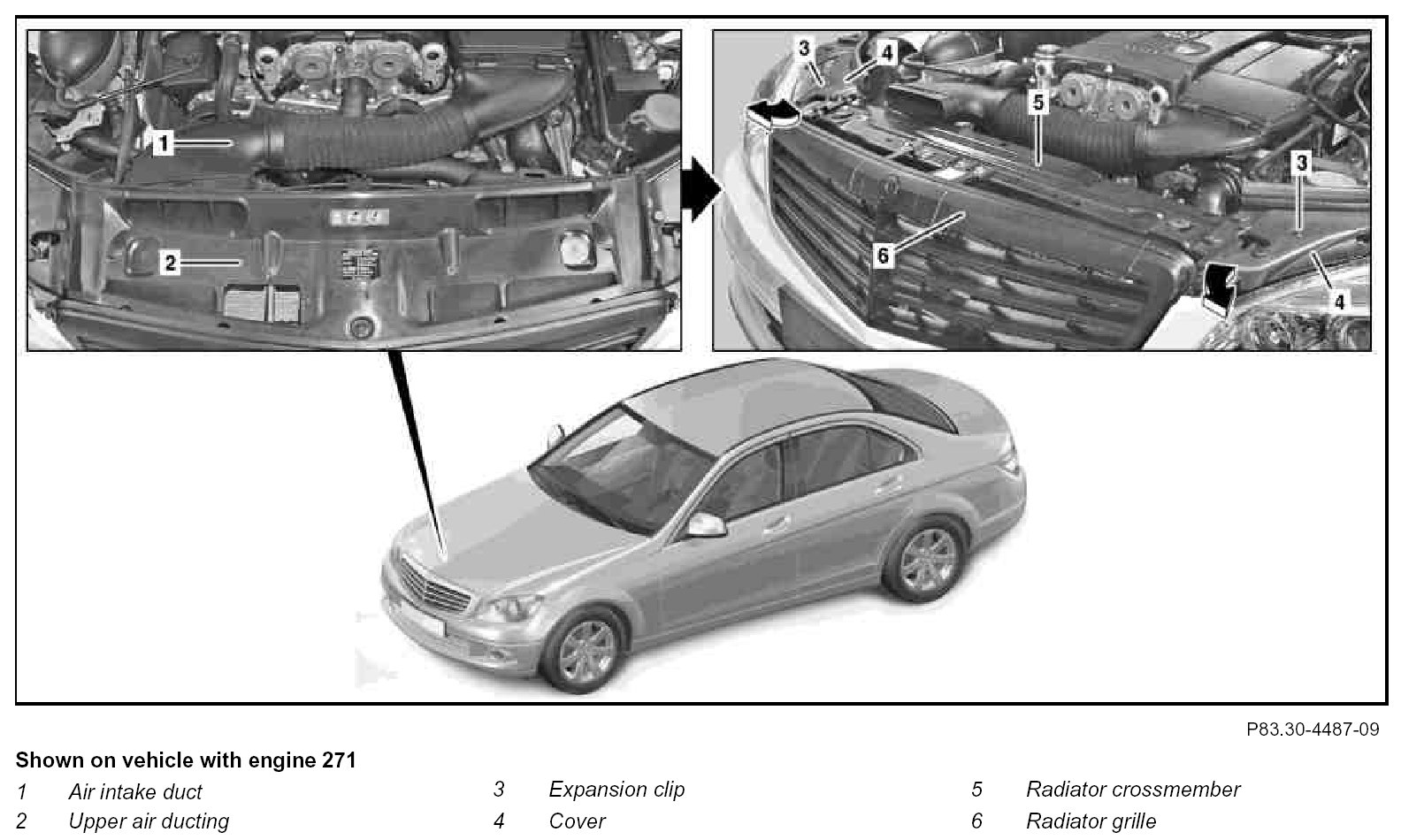

Component Identification:

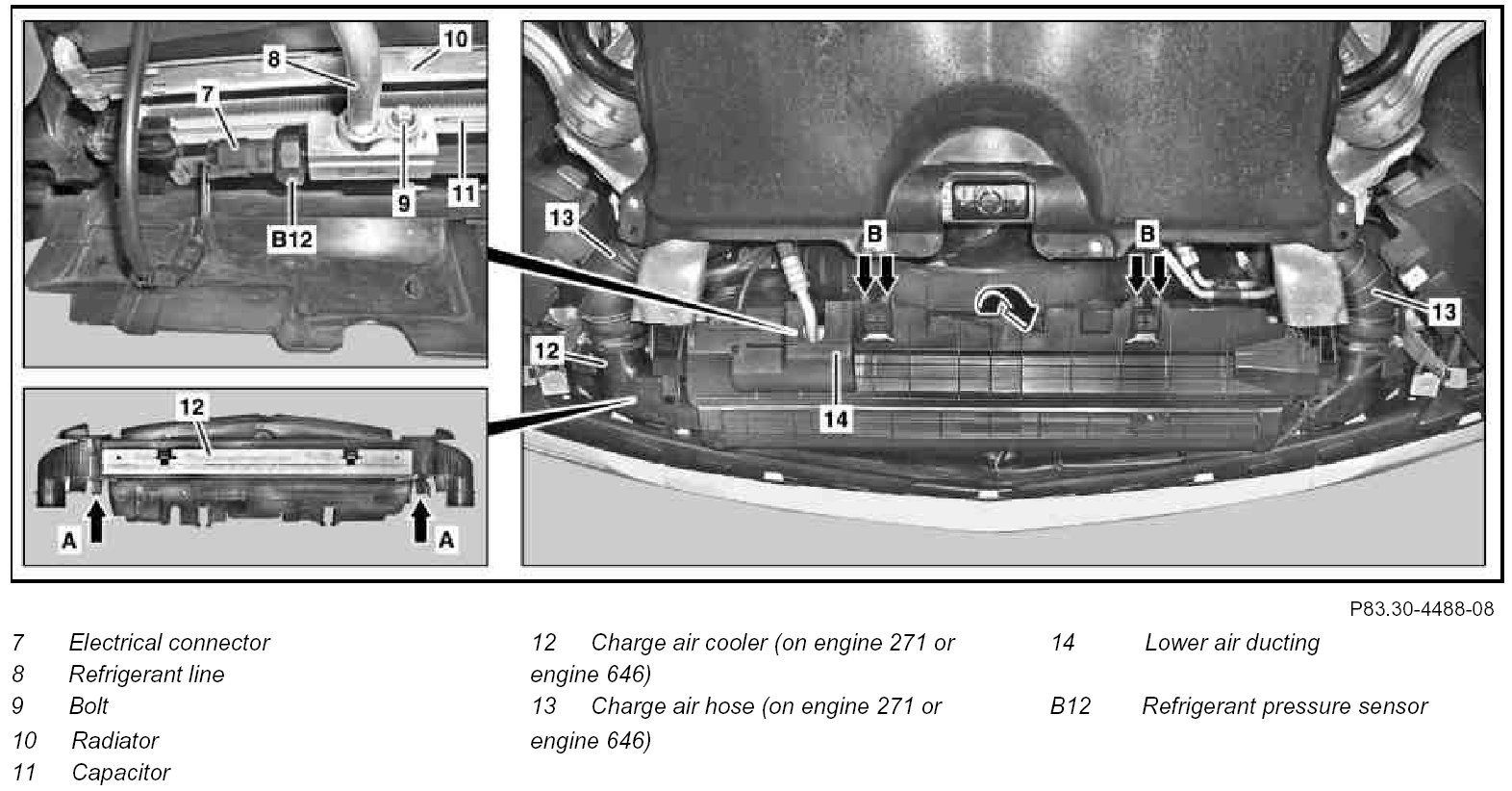

Component Identification:
Component Identification:

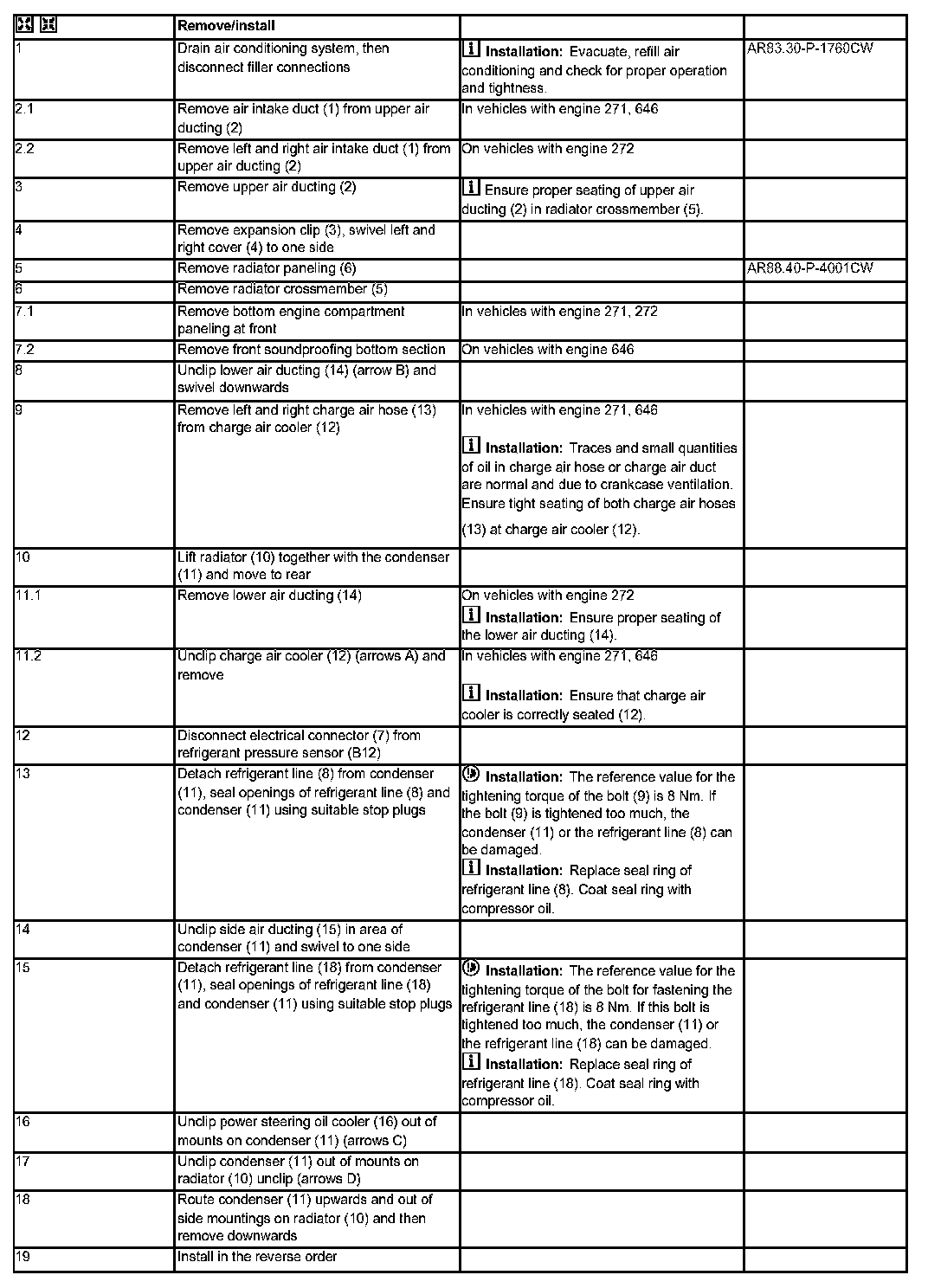

Steps 1 - 19:
