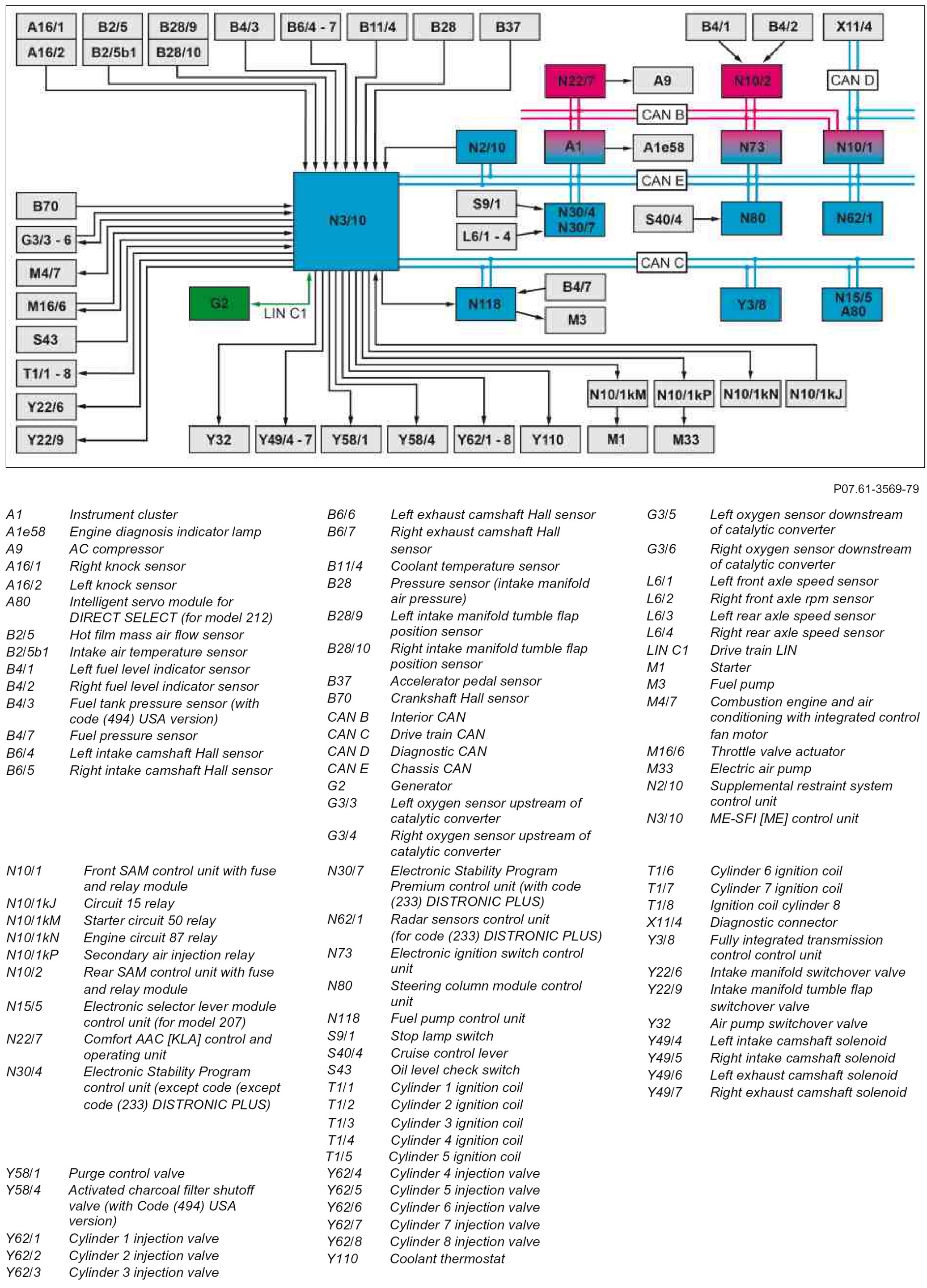

GF07.61-P-0001-13ML Motor Electronics (ME-SFI) Gasoline Injection and Ignition System, Block Diagram



GF07.61-P-0001-13ML Motor Electronics (ME-SFI) Gasoline Injection And Ignition System, Block Diagram


Component Identification:
