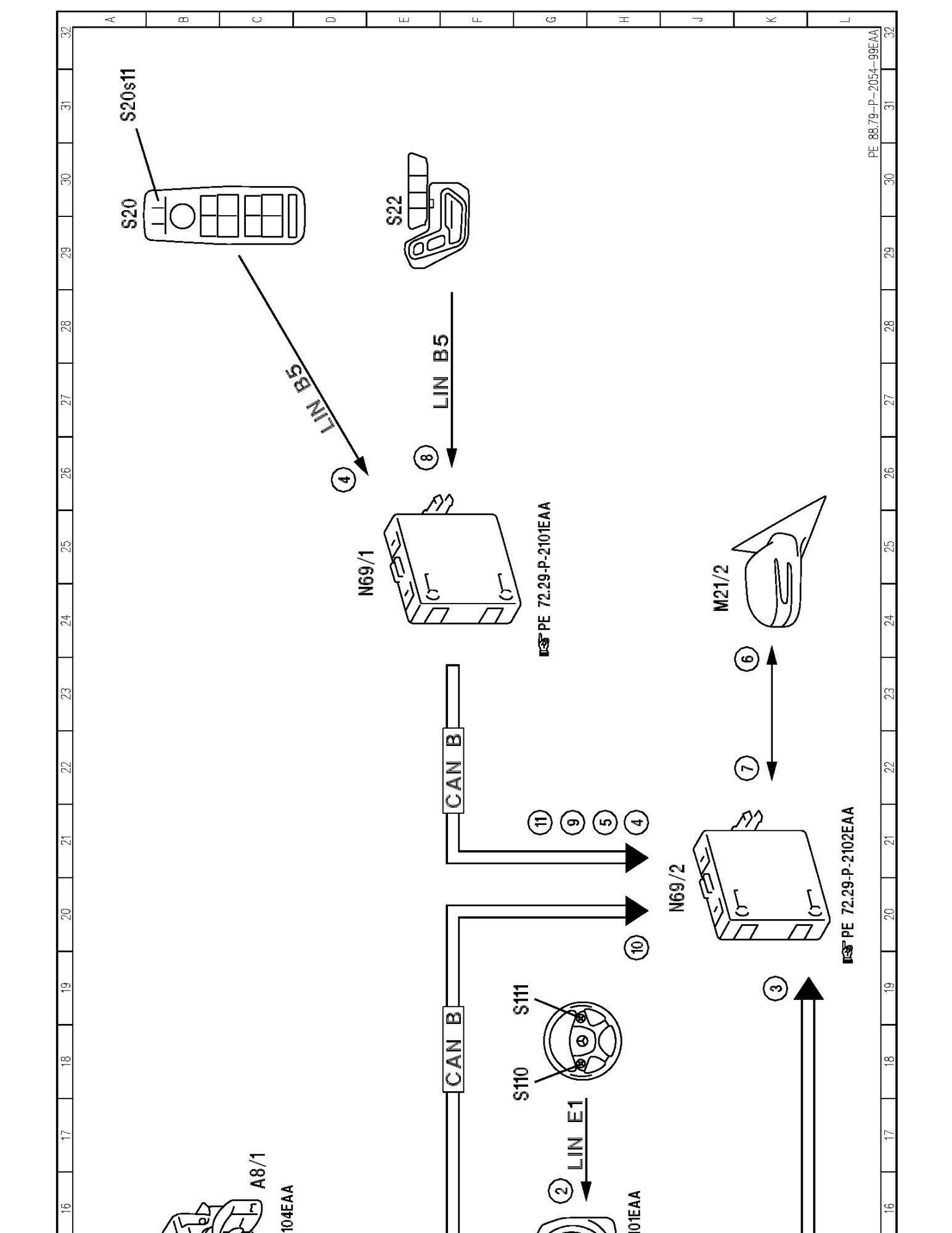

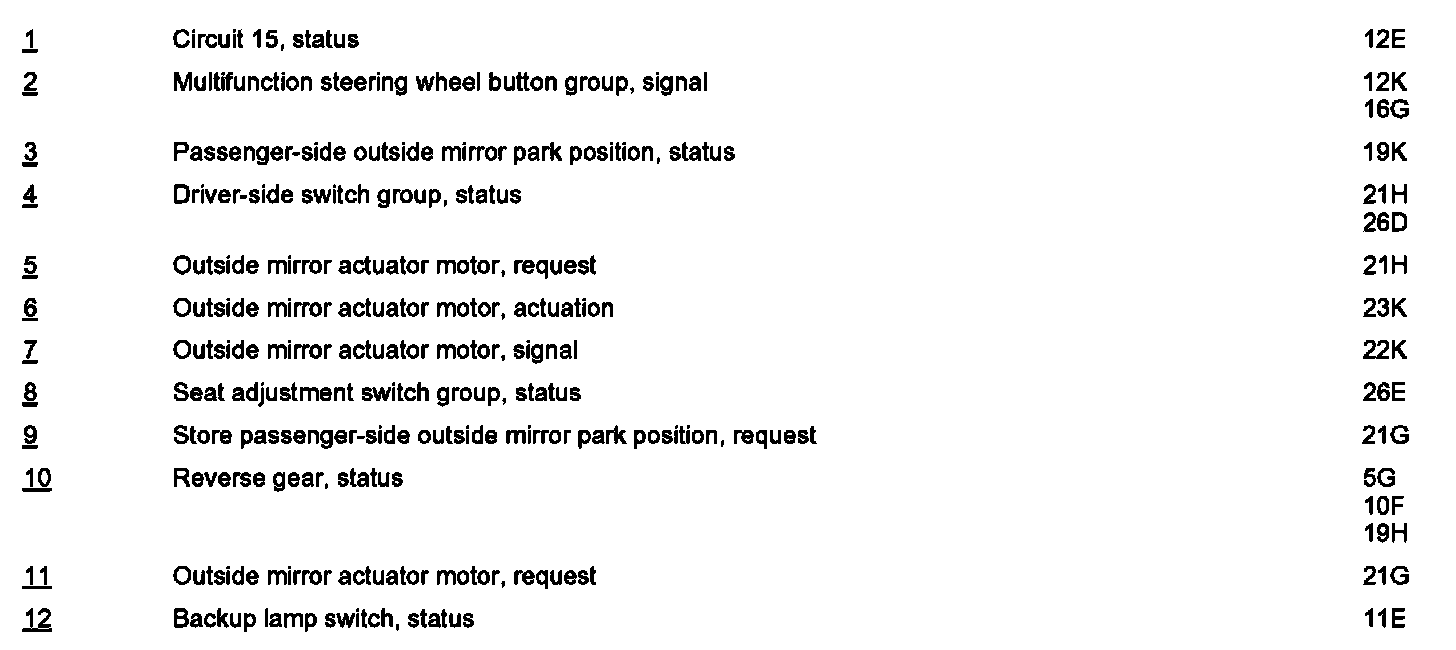

PE88.79-P-2054EAA Function Schematic For Electric Passenger-Side Outside Mirror Park Position

PE88.79-P-2054EAA Function Schematic For Electric Passenger-Side Outside Mirror Park Position
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- except CODE (494) USA version



















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
