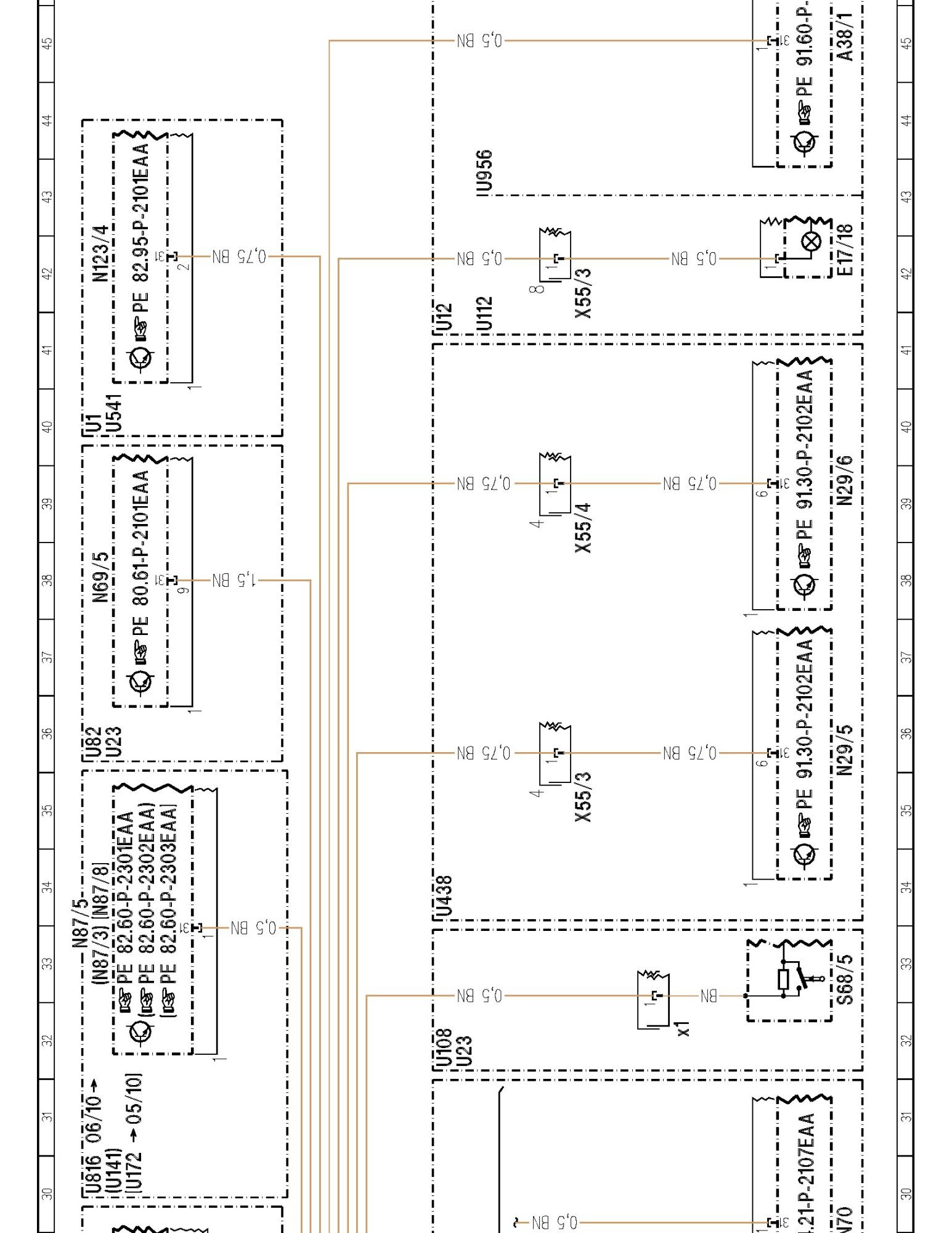

PE00.19-P-2800EAH Ground Wiring

PE00.19-P-2800EAH Ground Wiring

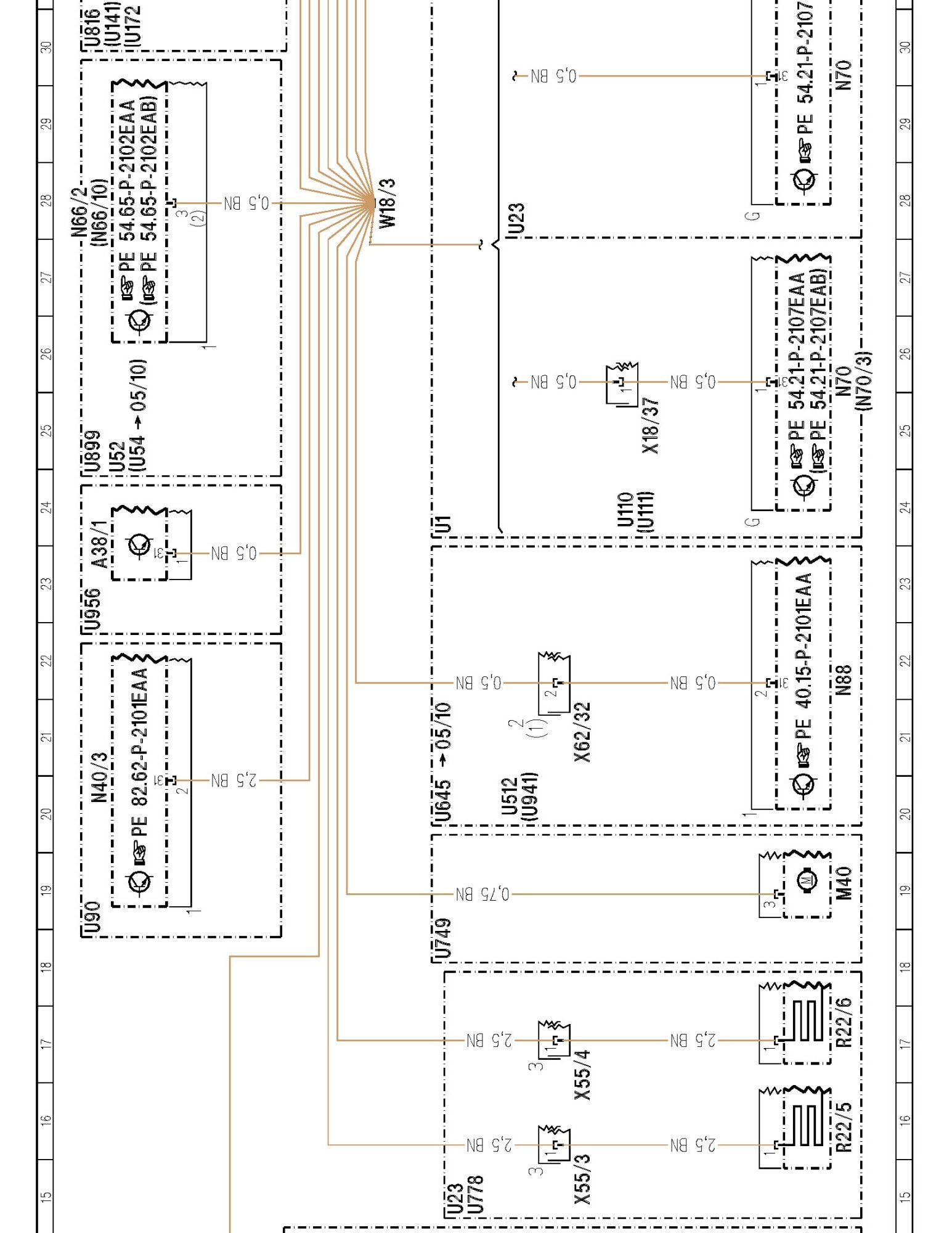

- W18/3, Z6/42
- Sheet 8































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
