Fuel Pump: Diagrams

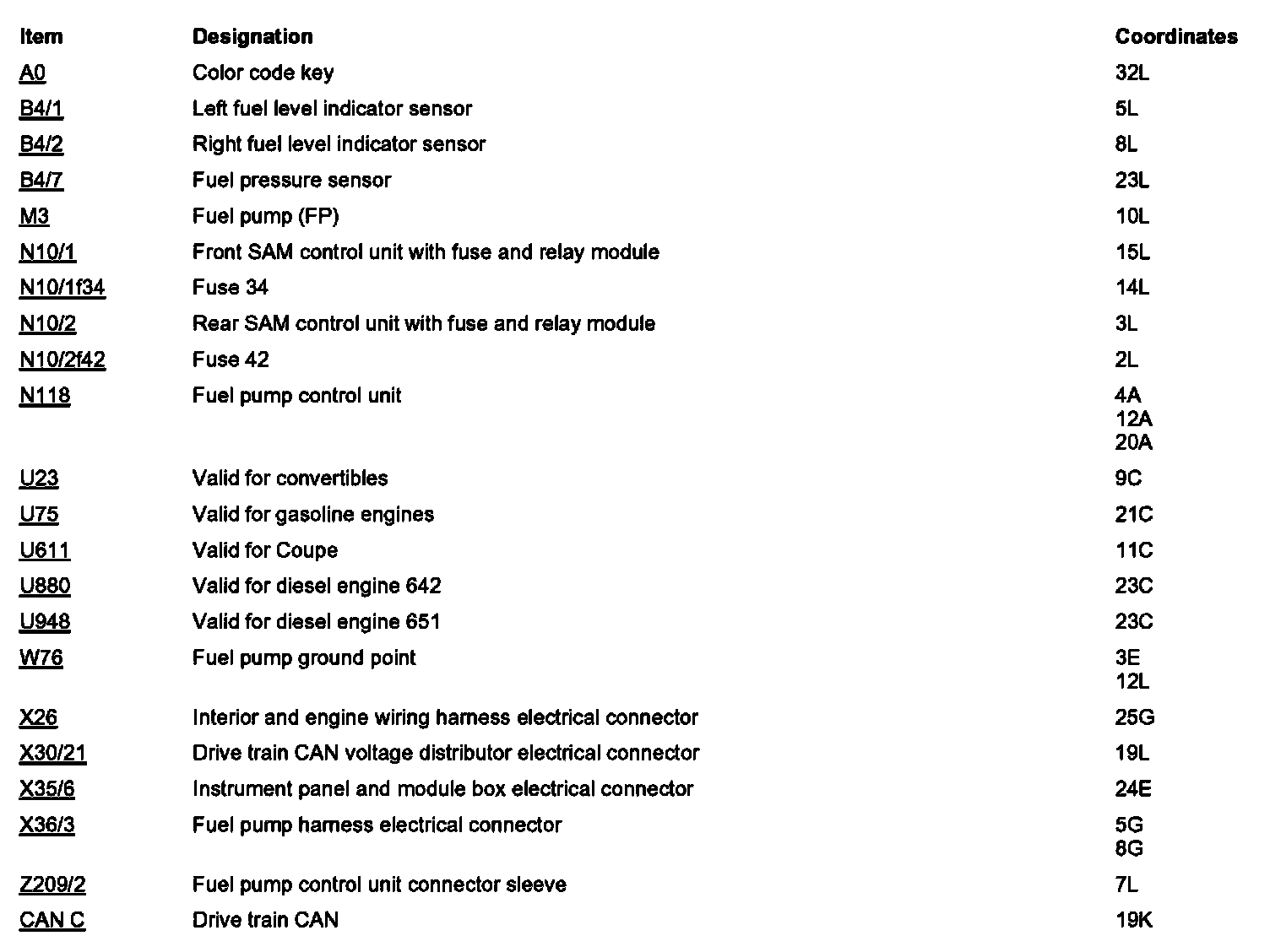

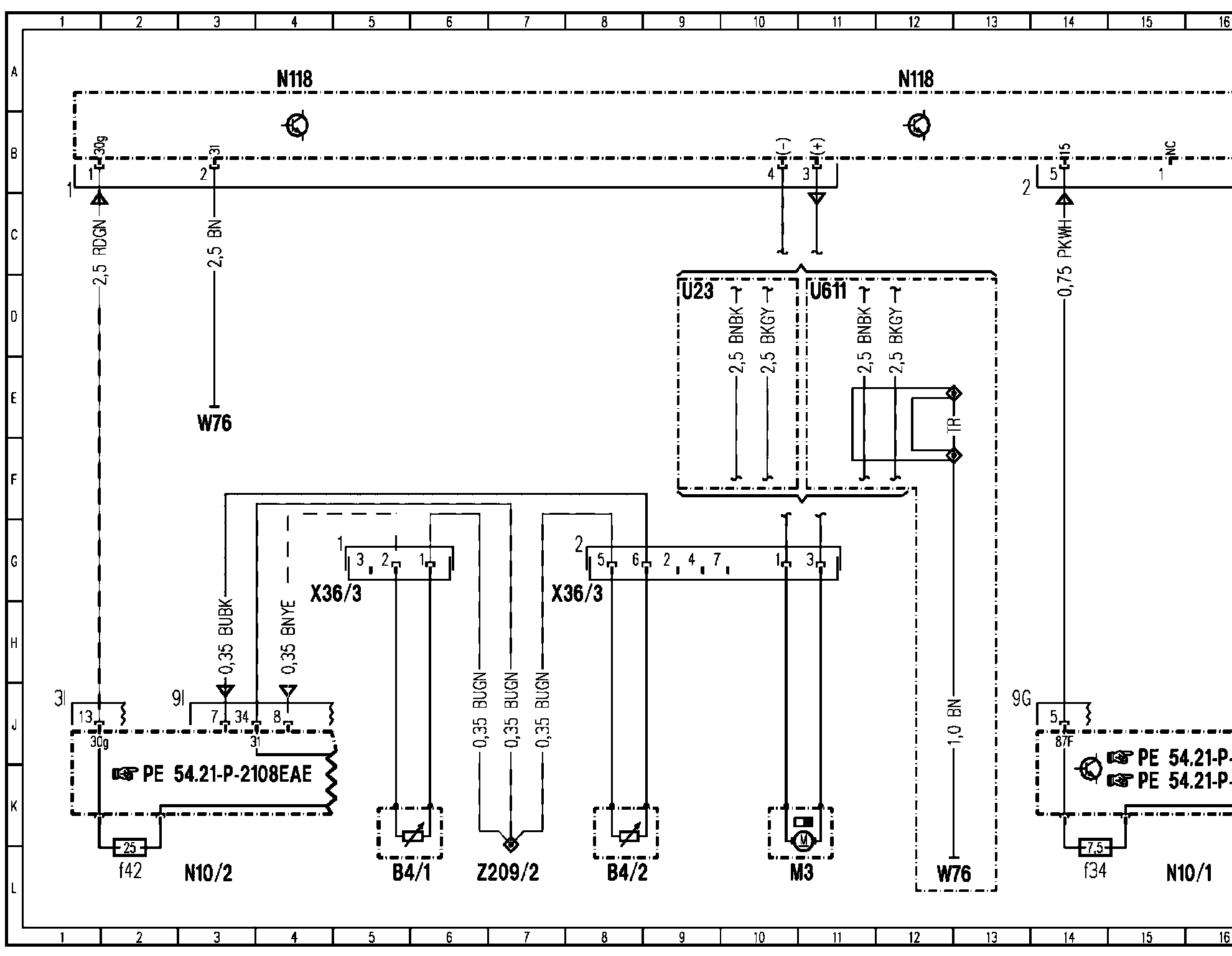

PE47.40-P-2101EAA Fuel Pump Control Unit
- Control unit N118















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
