BE40.20-P-1000-07I Front Axle Toe
BE40.20-P-1000-07I Front Axle Toe
BE40.20-P-1001-07I Front axle toe

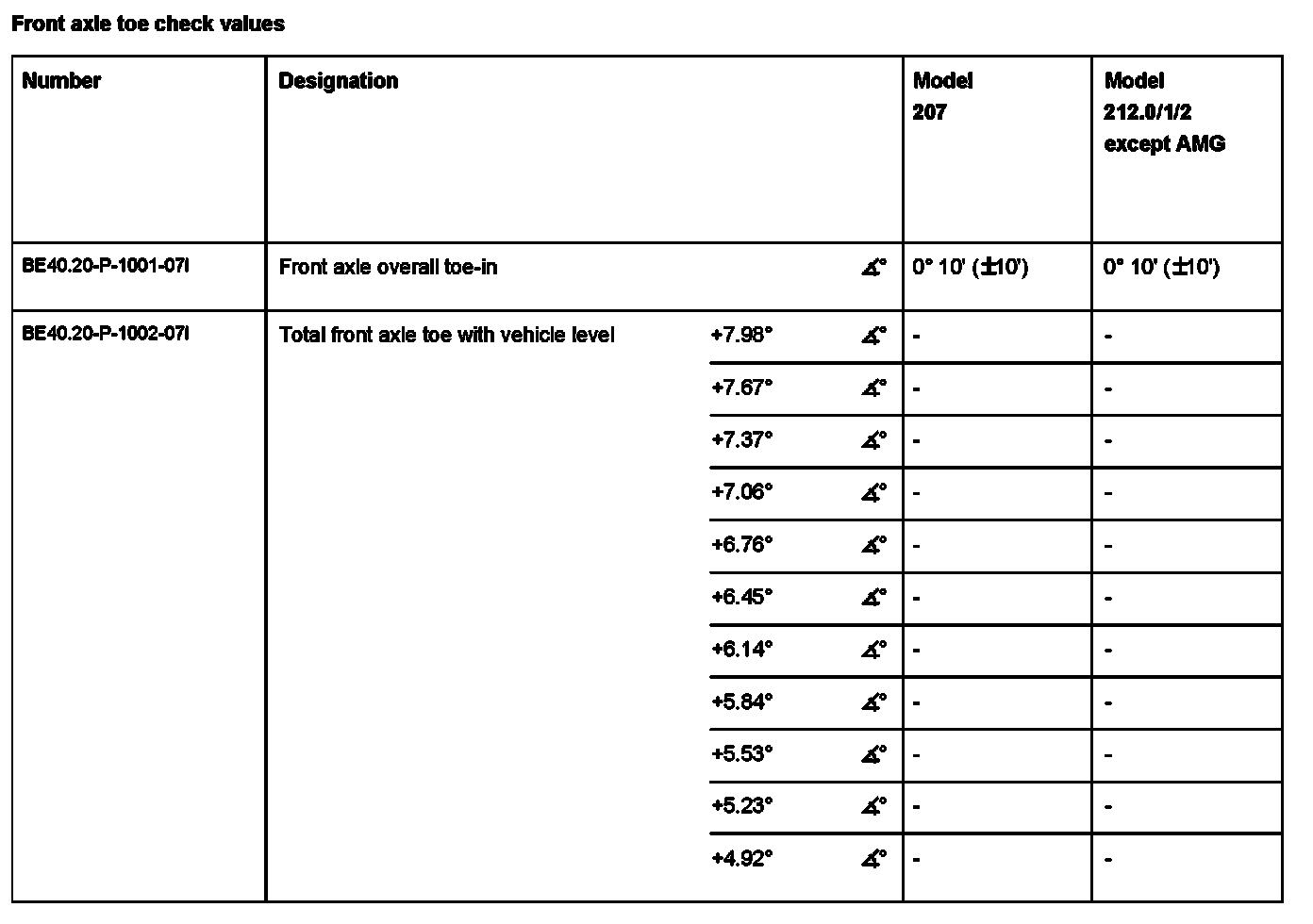

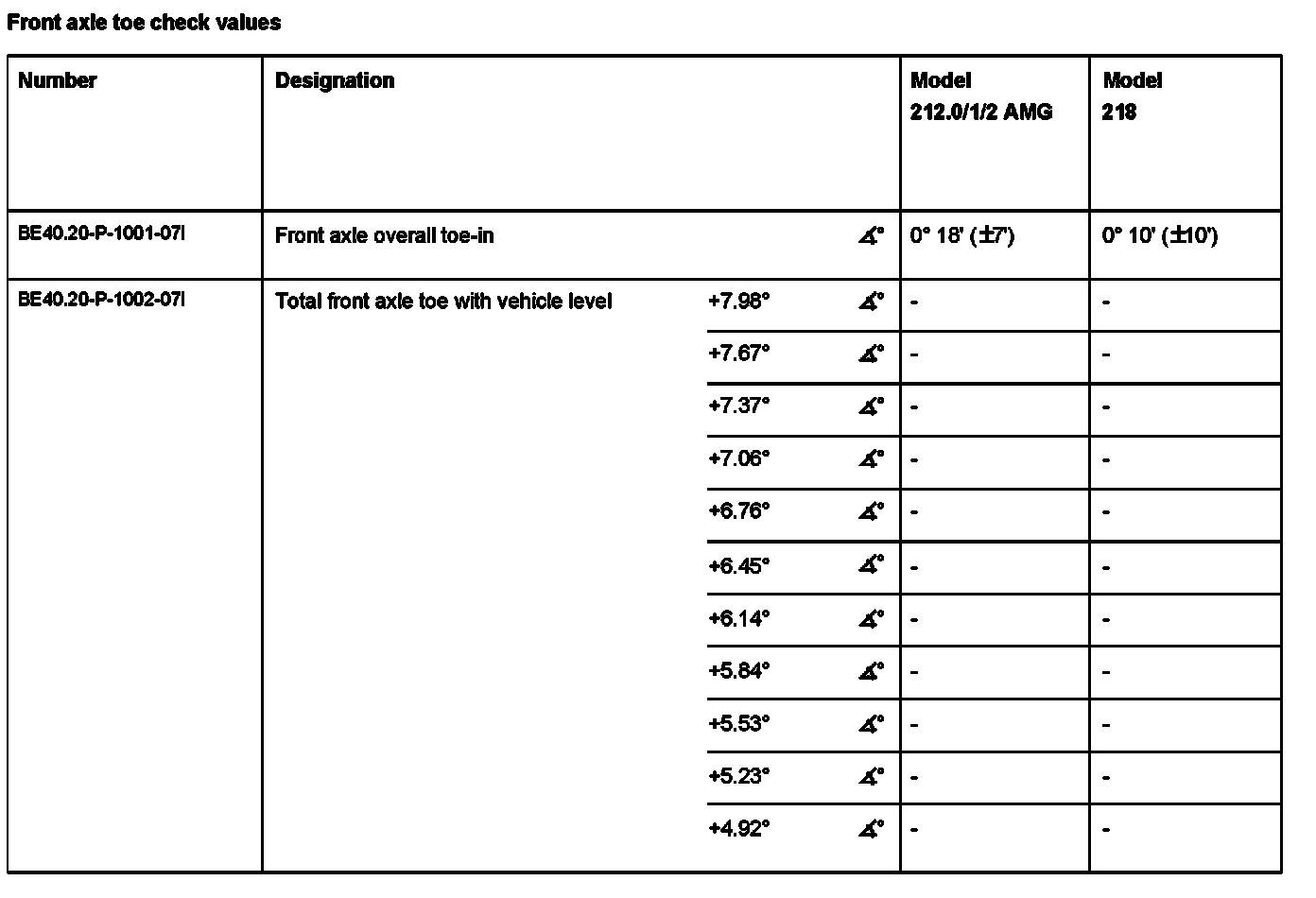

Front axle toe check values:
Front axle toe check values:
