BE40.20-P-1000-09AE Rear Axle Camber
BE40.20-P-1000-09AE Rear Axle Camber
BE40.20-P-1000-09AE Rear axle camber

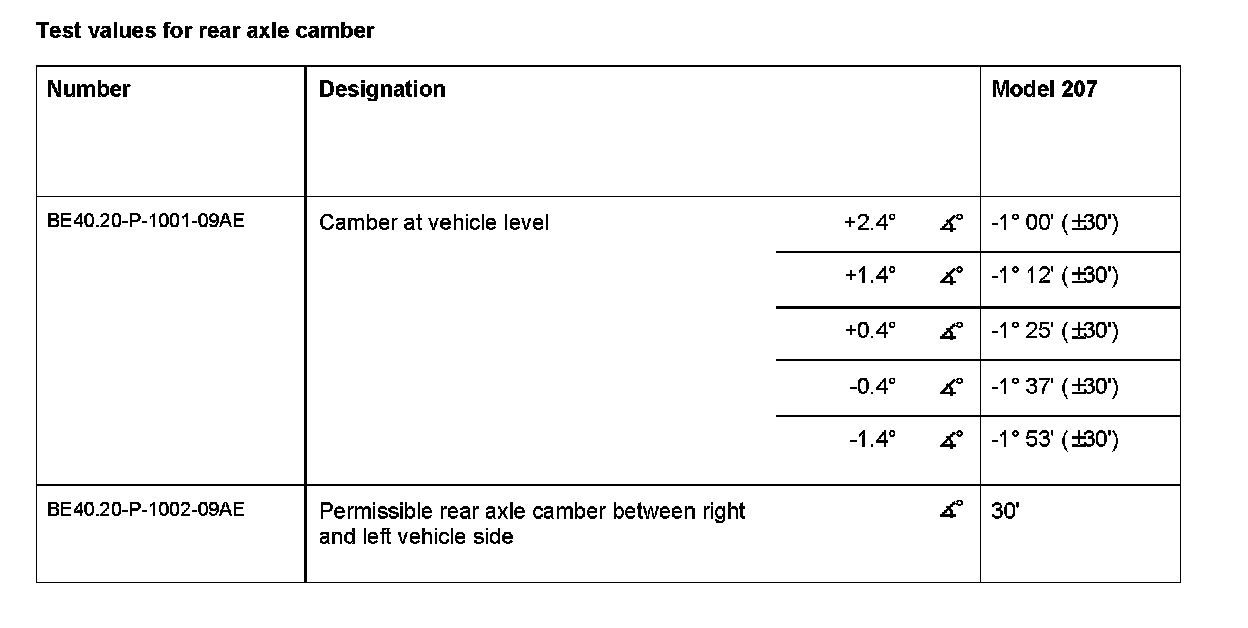

Test values for rear axle camber:
