Wiring Diagrams

PE15.00-P-2101EAD Starter, Alternator, Battery

ENGINE 272, 273 in MODEL 207

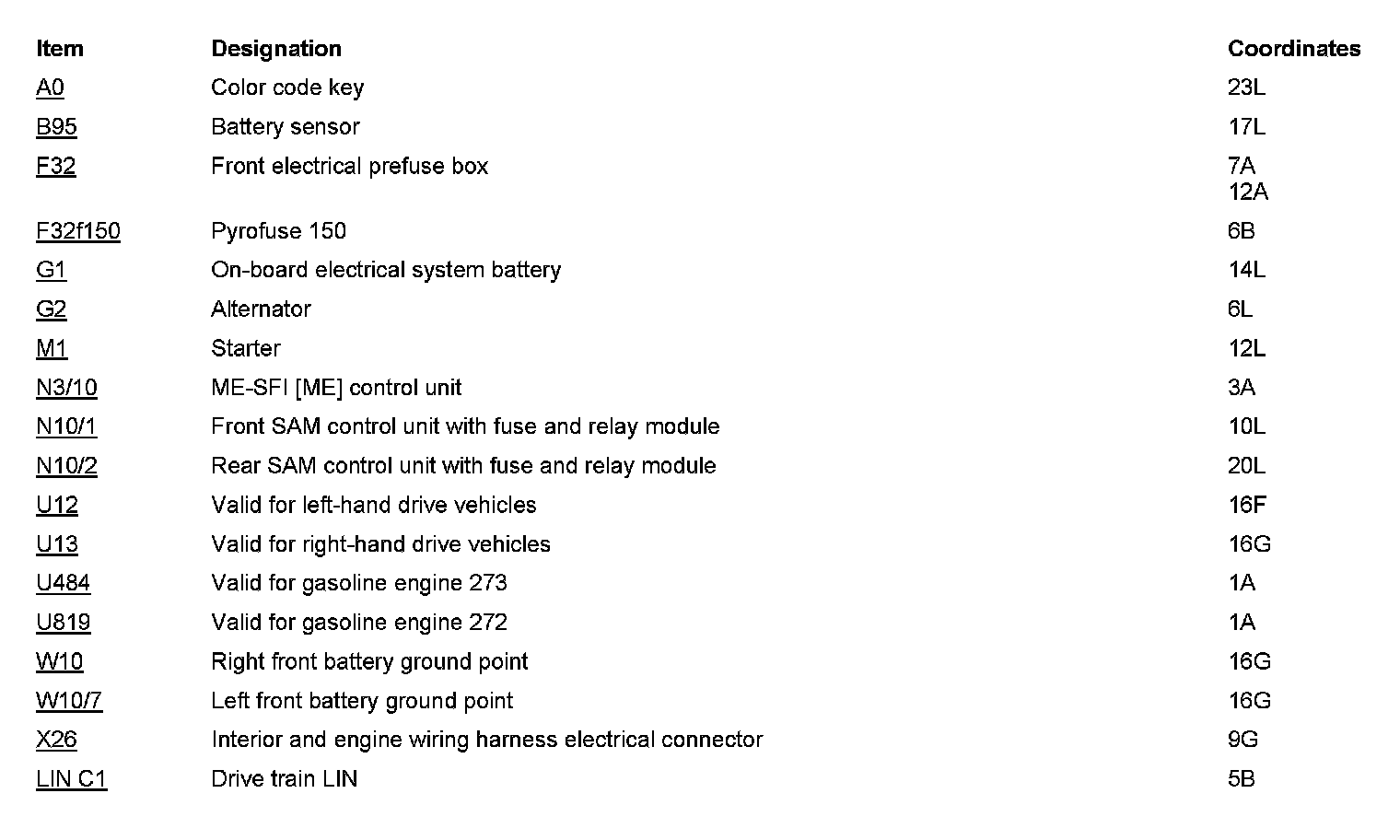

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
